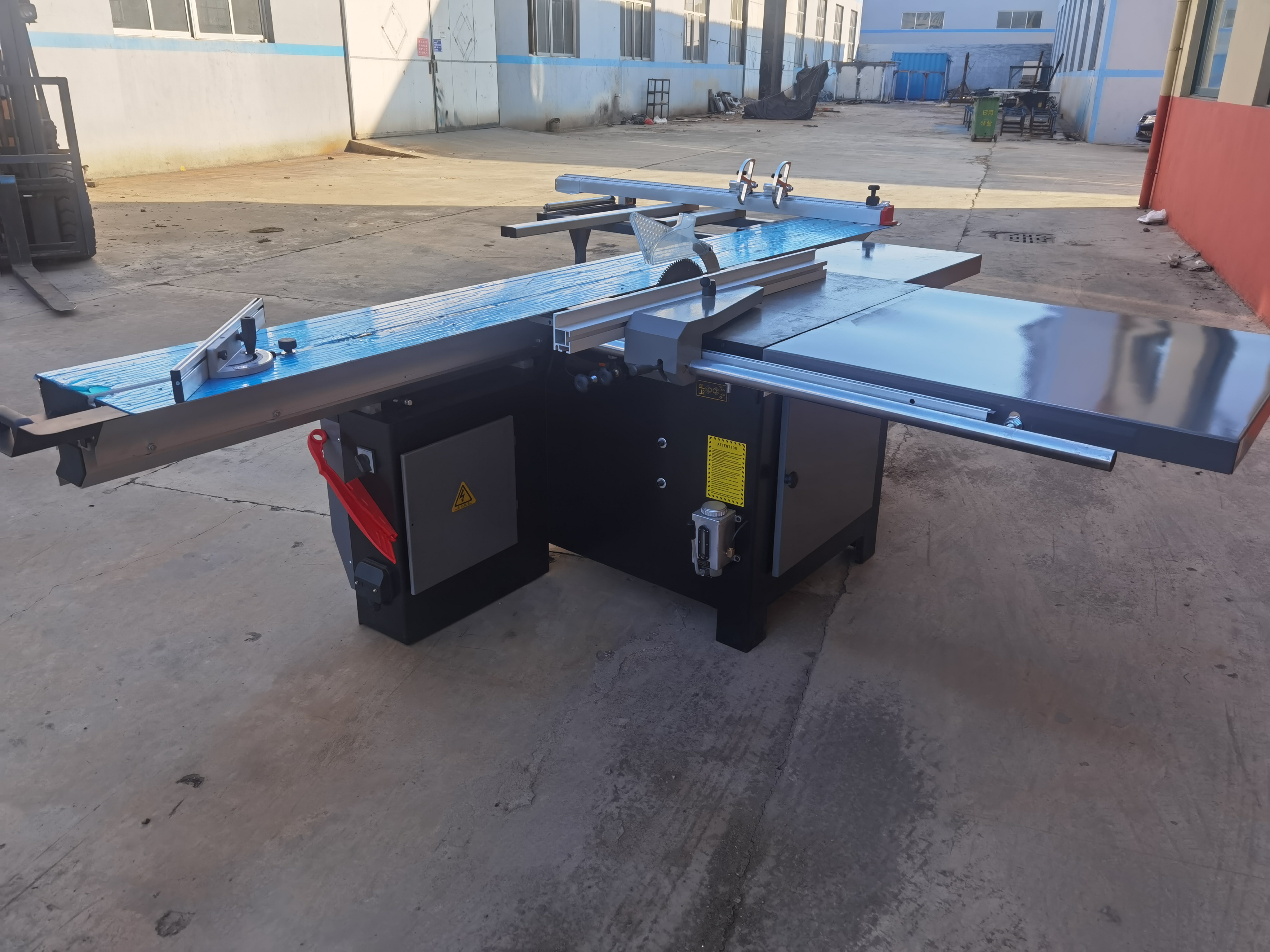

Model | PT3800 |
Pushing bench length | 3800*375 |
Maximum cutting width | 1200 |

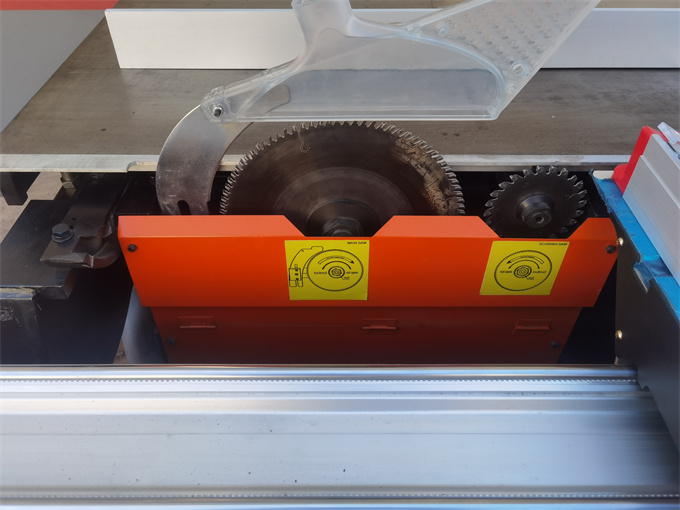

Main saw blade diameter | 300 |
Sub-saw blade diameter | 120 |
Saw blade inclination | 90-45 degree |
Raise the main saw blade | 70-85MM |
Main saw speed | 4000/6000rpm |
Spindle diameter | 30mm |
Scribing saw | 0-45 degree |
Main motor | 5.5kw |
Secondary electrode | 1.1kw |
Saw blade speed | 8000r/min |
Weight | 800KG |
