4 Axis 180 ° Rotated Spindle EPS Foam ATC CNC Router
Machine 1300*2500MM
Product description

Such 0-180degree rotating spindle cnc router can make different surface carving, arc-surface milling, bending surface machining for 4D jobs,like special shaped arts, bend doors or cabinets, also can make horizontal milling,cutting and drilling works.
Also widely used for :carve  and cut on any kind of Foam (EPS) ,  do 2D  and  3D  dimension processing.
Applied in material like Solid wood, MDF, foam, plastic, stone, aluminium, copper, PVC and other hard and soft materials.

Technical Parameters

Specification

PT-1325E

Notes

Machine Size(L*W*H)mm

3500*2300*1800



Working Area(X*Y*Z) mm

1300*2500*800MM



Spindle motor

Brand

HSD

18000-24000r/min



Power

9KW/unit





Cooling

Air Cooling





Working speed

18000rpm



Drive system

Type

Yaskawa servo 850w





Driver motor

YASKAWA





Driver

YASKAWA 850w



Inverter

Brand

Fuling inverter





Power

11KW/unit



Control system

         Syntec    6MB

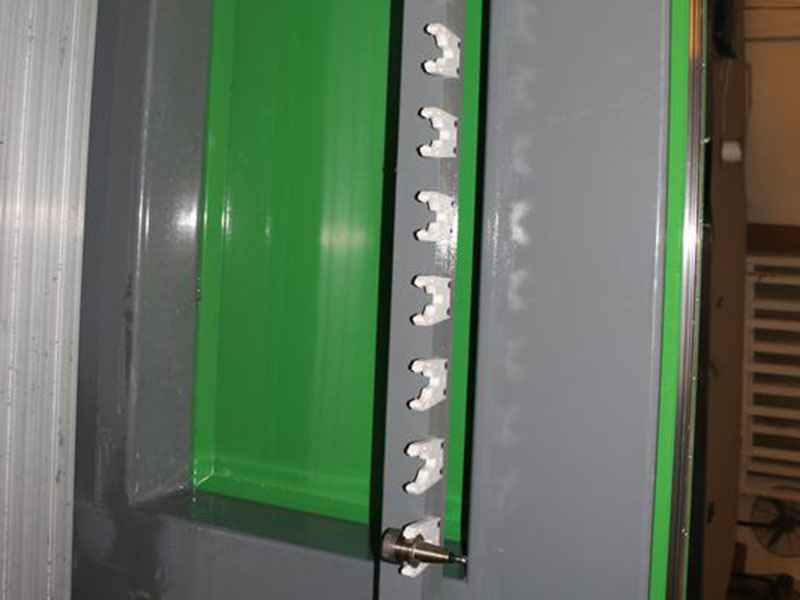

8 Servo knife tool changer

Guide rail

Taiwan CSK



Ball Screw

Taiwan TBI



Working table

Double vacuum adsorption table



Lubrication

Automatic central    centralized lubrication system



Rotary

400*1200mm



Reduce gear

Japan SHAMPO



X transmission

30 square    guide 1.5M high accuracy helical tooth reduce 8:1



Y transmission

30 square    guide 1.5M high accuracy helical tooth reduce 8:1



Z transmission

30 square guide  high precision    helical tooth reduce 8:1



Rack

Xinyue rack



dust collector

5.5Kw



Electrical cable

Shanghai cable



Wiring standards

CE standard



Electrical

shneider



magnetic valve

Germany imported



Air cylinder

Germany imported



Product Features

1. Spindle rotated 180 degree, you can make 2D/3D/4D carving on curved surface, arc-surface,bending surface, larger dimension mould, statues, sculptures, cylinders and so on...
2.700mm Z-axis feeding height & effective travelling for heavy and thick materials.
3. Japan Yaskawa 850W servo motor and driver for XYZ-axis, ensuring the processing speed & precision.
4.Japan Shimpo Reducer for servo motor, used for replace traditional rack and belt,to make machine more powerful and stable
5. 4 axis SYNTEC 6MB control system with industrial control system and hand wheel, safe and reliable operation, efficient speed to read the code, and have the online analog functions, on-line monitoring function to ensure efficient and safe processing.
6.Powerful 9KW Italy HSD ATC air cooling spindle , can move 0-180 degree.

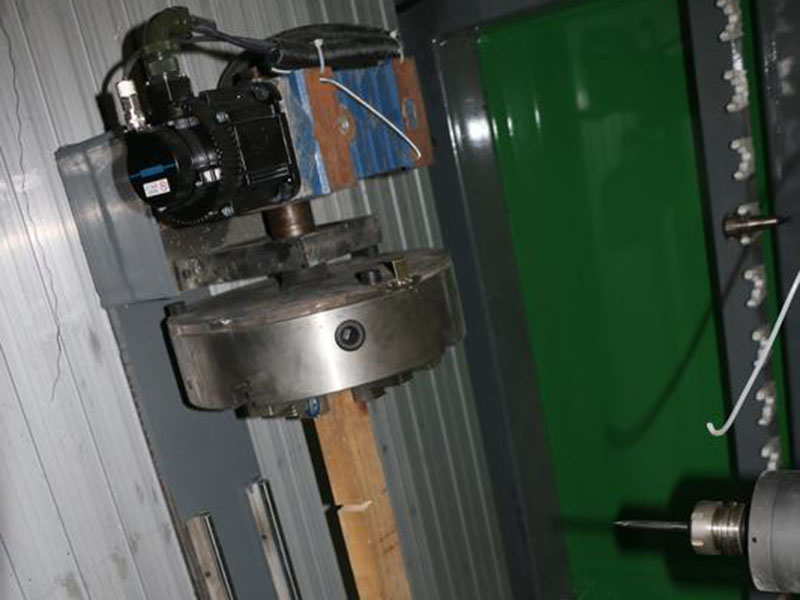

7.Rotary device: 4th axis rotary axis, diameter 400mm, working length 1200mm, thimble type ,better for foam fixing.

Product details
4 Axis 180 ° Rotated Spindle EPS Foam ATC CNC Router
4 Axis 180 ° Rotated Spindle EPS Foam ATC CNC Router
