Four Z-axis Wood CNC Engraving Cutting Machine 4*8 Feet 1300*2500mm PT-1325I
Product description

Suitable for all kinds of woodworking products, advertising signs, acrylic cutting, blister molding and large-scale cutting, and can engrave iron, copper, aluminum, plastic boards, wood boards or other non-metallic materials. Wooden door and furniture decoration industry: solid wood and composite doors, cabinet doors, large-area plank carving, solid wood, panel furniture carving, antique mahogany furniture carving, solid wood art mural carving, etc.

Technical Parameters

Model

PT-1325I

Working area

1300*2500MM

Spindle power

5.5KW water cooling spindle*4

Inverter

Fuling inverter

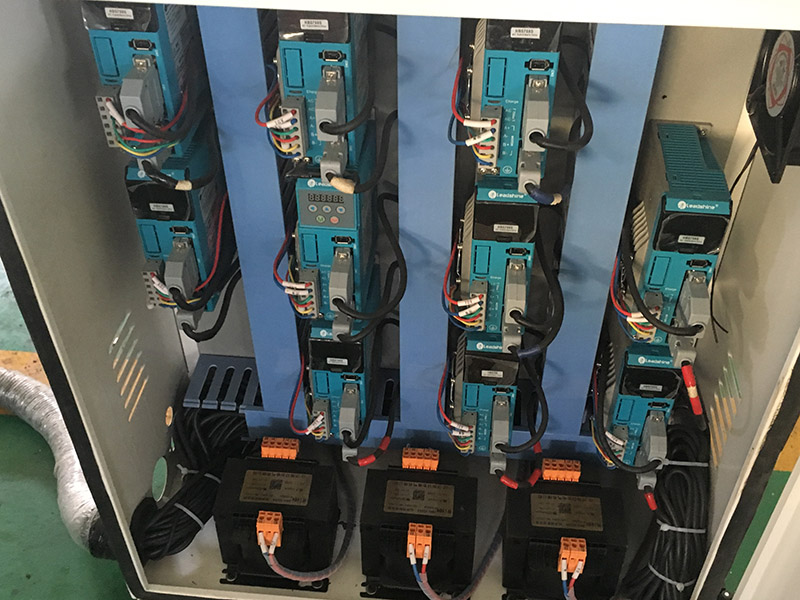

Drive system

Leadshine servo motor

Control system

Ncstudio control system

Max air move speed

80m/min

Max working speed

25m/min

Reponsitioning accuracy

±0.05mm

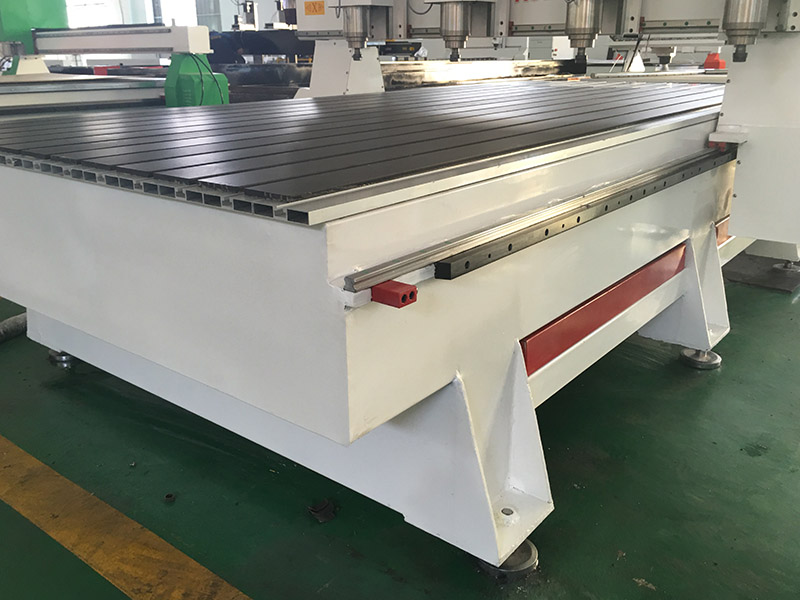

Table structure

T slot table

Orbit

Hiwin 25

Working Voltage

AC380V/3PH/50Hz

Product Features

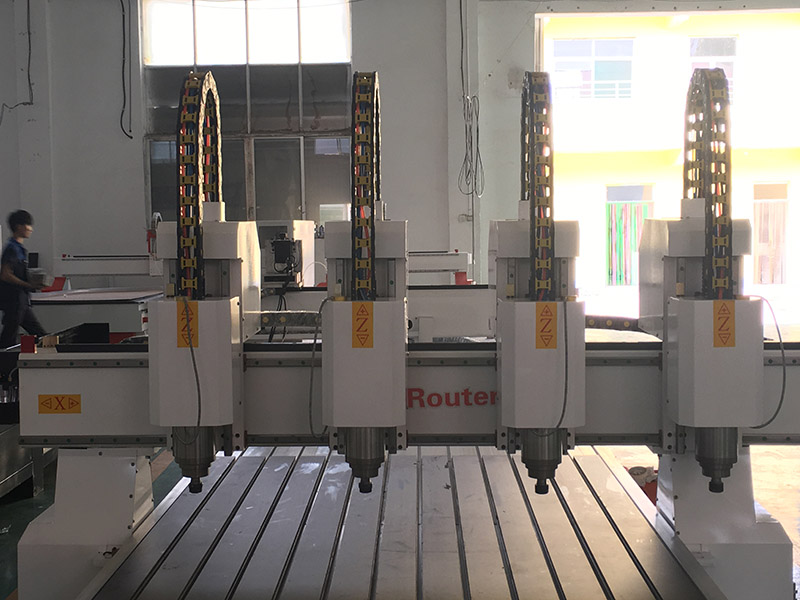

It is suitable for work with relatively large processing volume, equipped with four high-power heads, which can work at the same time, the efficiency is increased by four times, and it can also be worked separately.
Unique multi-head design, the number of heads and spindle power can be selected according to customer needs, and the distance between the heads can be adjusted freely according to the workpiece.

Product details

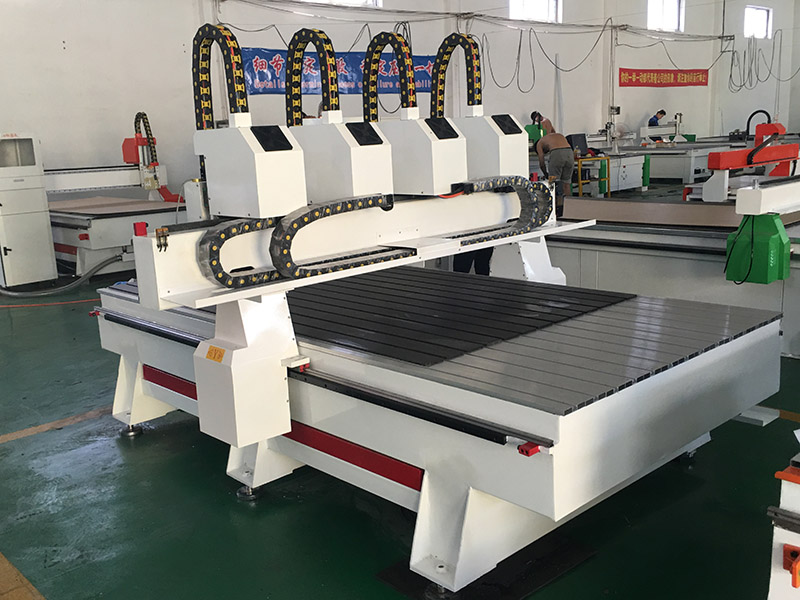

Four Z-axis Wood CNC Engraving Cutting Machine 4*8 Feet 1300*2500mm PT-1325I
Four Z-axis Wood CNC Engraving Cutting Machine 4*8 Feet 1300*2500mm PT-1325I
Four Z-axis Wood CNC Engraving Cutting Machine 4*8 Feet 1300*2500mm PT-1325I
Four Z-axis Wood CNC Engraving Cutting Machine 4*8 Feet 1300*2500mm PT-1325I
