Mainly used for natural marble, granite, artificial stone, tombstone, milestone, tile, glass, bluestone,sandstone, crystal, microlite,mural, village tablet inscription, decoration skirting line,...such relief engraving, singlet line, character, flat pattern engraving, with rotary axis, can for stone cylinder,breast board, handrail, dragon columns,figure of Buddha...engraving.
Effective working area | 2000(X)mm*2500(Y)mm*350(Z)mm |
Materials | More thickness T type steel pipe welded machine holder bed, cast iron gantry |
Working table | I- shaped steel |
Cooling system | Stainless steel water cooling |
Moving type | Gantry moving |
Guide rail | Linear square guide rail ( Hiwin, Taiwan) |
Transmission | Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis |
Driving mode | Leadshine hybrid servo motor and driver for XYZ-axis |
Spindle motor | 5.5kw water cooling, 2 pcs on 2 independent Z-axis |
Spindle speed | 0-24000rpm |
Inverter | Fuling |
Voltage | AC 380V± 10%, 50/60Hz, three phases |
Traveling speed | >28000mm/min |
Engraving speed | >15000mm/min |
Machine accuracy | 0.03mm |
Control system | PCI NcStudio control system |
Suitable software | Artcam, Type3, Ucancam V9,etc |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
Running environment temperature | 0-45 ºC |
Relative humidity | 30%-75% |
Lubrication system | Semi-auto |
Tool calibration | Auto |
Certificate | CE |

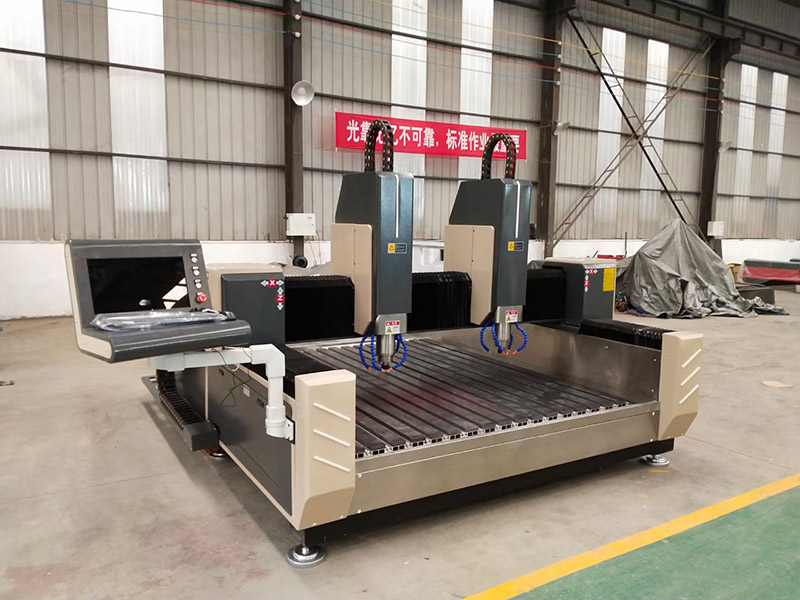

1.Adopted heavy duty steel machine bed, strong rigidity, strong dynamics,
2.XYZ-axis adopted imported Hiwin, Taiwan linear square guide rail, high precision,fast speed and good wear resistance.
3.Double Z-axis with double powerful 5.5kw water cooling spindle, improving the efficiency,easy to engraving all kinds of stone, not only fine engraving, but also the bottom smooth and clear.
4.Leadshine hybrid servo motor and driver for XYZ-axis, high precision, faster speed and more stable than stepper motor and driver. Dual motor and driver for Y-axis, ensuring the stable moving.
5.With computer cabinet, more convenient for computer operation and control cabinet coontroling.
