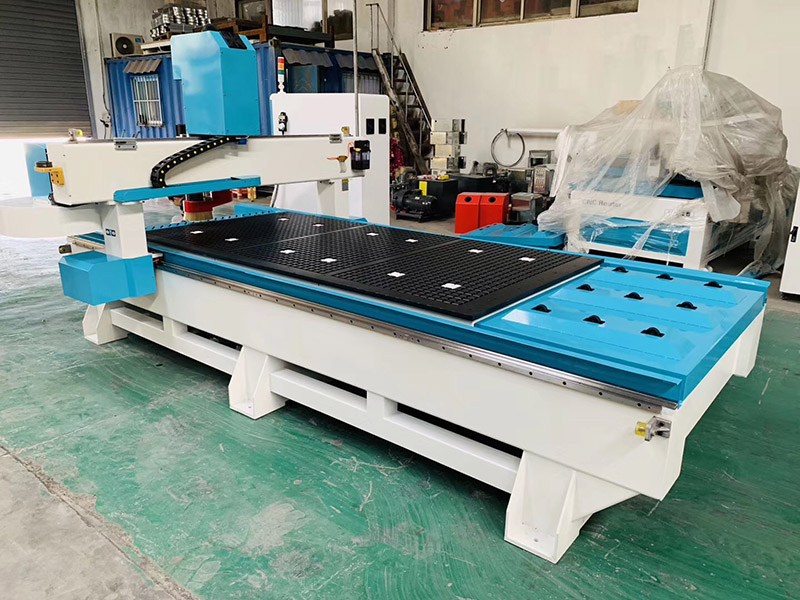

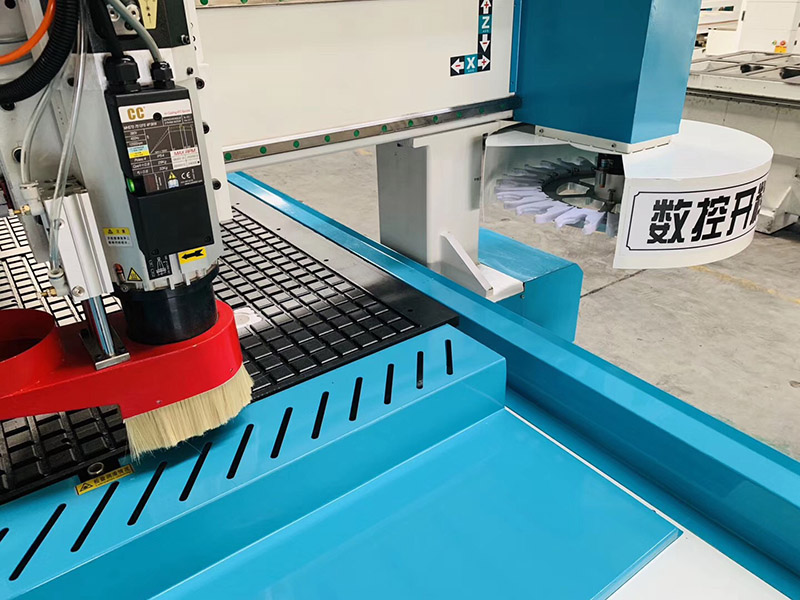

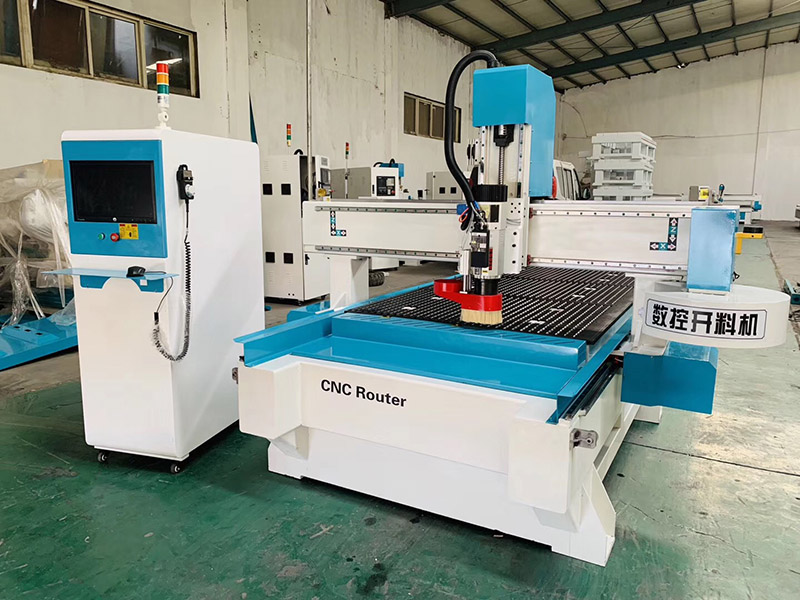

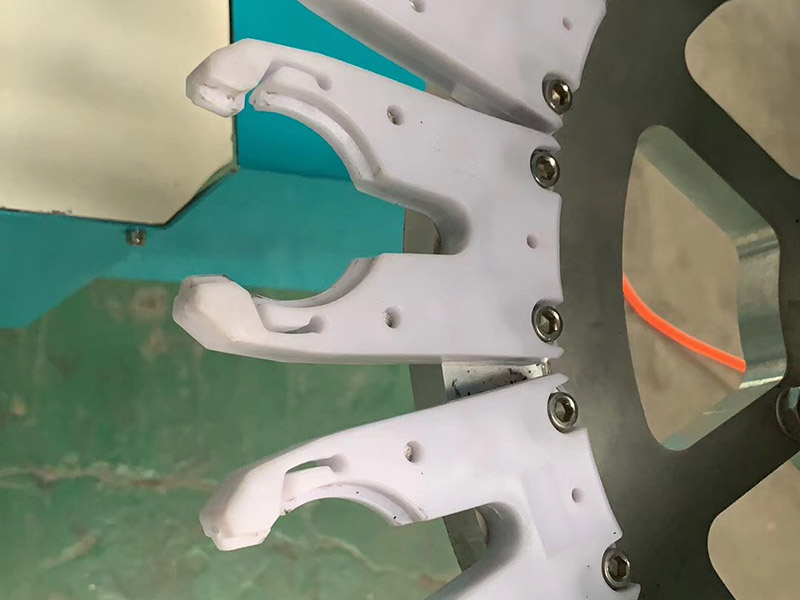

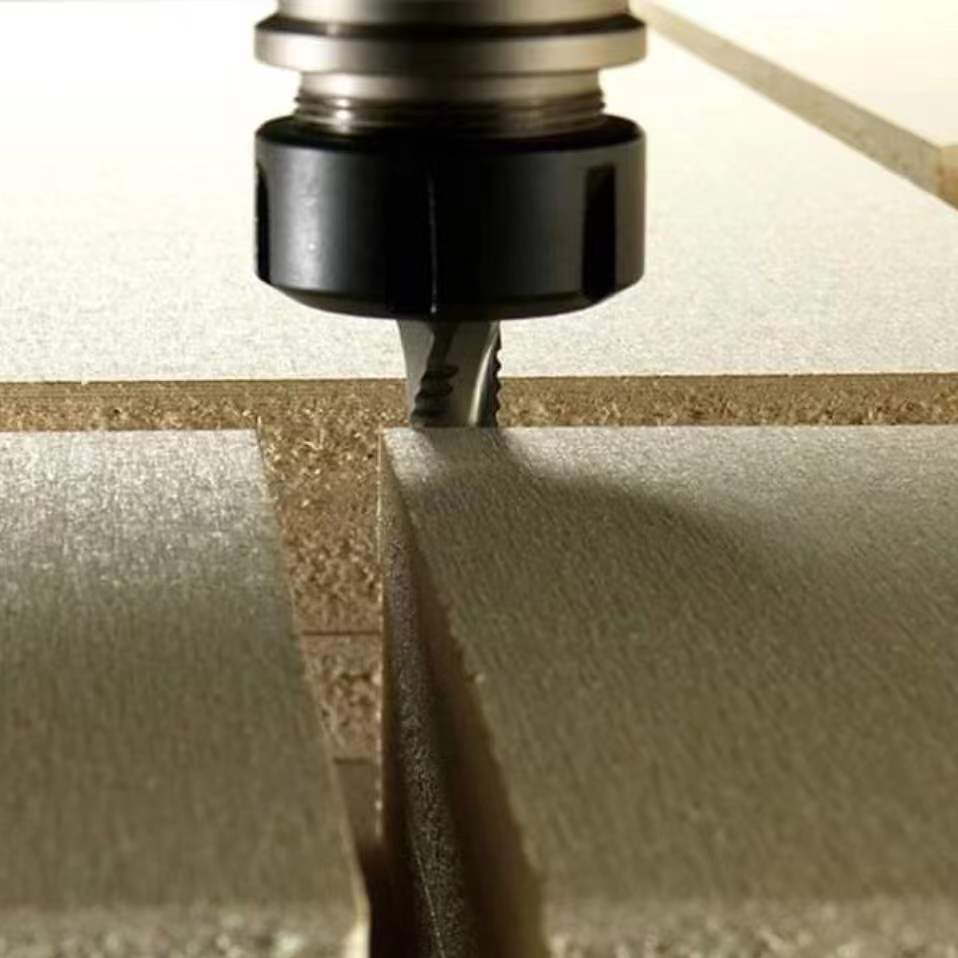

As an economical door processing equipment,Hat type tool Changer is widely used in the market , the machine tool changer can move along with the gantry. The tool change speed is fast, the guide rail wear is small, saving time.
Specification | PT-1325 | Notes | |
Machine Size(L*W*H)mm | 3500*2300*1800 |
| |
Working Area(X*Y*Z) mm | 1300*2500*200 |
| |
Spindle motor | Brand | HSD | 18000-24000r/min |
| Power | 9KW/unit |
|
| Cooling | Air Cooling |
|
| Working speed | 18000rpm |
|
Drive system | Type | Yaskawa servo 850w |
|
| Driver motor | YASKAWA |
|
| Driver | YASKAWA 850w |
|
Inverter | Brand | Fuling inverter |
|
| Power | 11KW/unit |
|
Control system | Syntec 6MB | 16 Servo knife tool changer | |
Guide rail | Taiwan CSK |
| |
Ball Screw | Taiwan TBI |
| |
Working table | Double vacuum adsorption table |
| |
Lubrication | Automatic central centralized lubrication system |
| |
Position cylinder | X:2pcs Y:3pcs | tool auto-checking | |
Reduce gear | Japan SHAMPO |
| |
X transmission | 30 square guide 1.5M high accuracy helical tooth reduce 8:1 |
| |
Y transmission | 30 square guide 1.5M high accuracy helical tooth reduce 8:1 |
| |
Z transmission | 30 square guide high precision helical tooth reduce 8:1 |
| |
Rack | Xinyue rack |
| |
vacuum pump | Brand | Junran |
|
| Power | 11KW |
|
| Cooling | Water cycle cooling |
|
dust collector | 5.5Kw |
| |
Electrical cable | Shanghai cable |
| |
Wiring standards | CE standard |
| |
Electrical | shneider |
| |
magnetic valve | Germany imported |
| |
Air cylinder | Germany imported |
| |

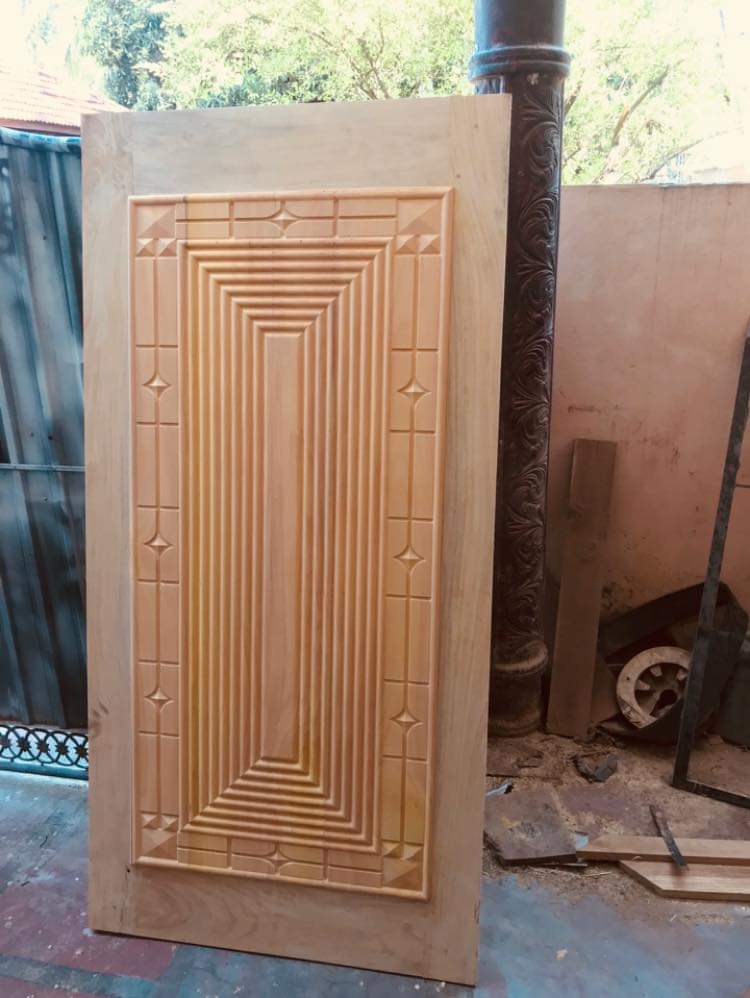

Sample :
1.Woodworking: wooden doors and furniture, windows, tables and chairs, cabinets and panels, 3-D boards, MDF, musical instrument, etc.
2.Advertising: show bills, logotypes, sign boards, 3-D models, acrylic cutting, LED/neon billboards, 3-D letters, light boxes, dies, molds.
3.Handicraft industry: sculpture of copper, aluminum engraving, metal molds, polyethylene film, PVC, etc. Decorations and ornaments: acrylic, decorative board, artificial stone, organic glass, non-ferrous metals (aluminum, copper, brass), etc.
4.Relief sculpture and 3D engraving.
