Mainly used for natural marble, granite, artificial stone, tombstone, milestone, tile, glass, bluestone,sandstone, crystal, microlite,mural, village tablet inscription, decoration skirting line,...such relief engraving, singlet line, character, flat pattern engraving, with rotary axis, can for stone cylinder,breast board, handrail, dragon columns,figure of Buddha...engraving.
Product modle | PT-2030T | |
Spindle*2 | Cooling System | Water cooling |
Power | 7.5KW | |
Rotating Speed | 24000 RPM | |
Drive System | X axis | Delta servo motor |
| Y axis | Delta servo motor |
Drive system | Z axis | Delta servo motor |
Guide and Slide | Brand | Taiwan Hiwin |
Lubrication | Lubrication system | Automatic oil lubrication |
Transmission | X&Y axis | 2M Helical rack transmission |
Transmission | Z axis | Ball screw |
Controller System | DSP A18 4axis | |
Working area (MM) | 2000*3000mm | |
Weight(KGS) | 2500kgs | |
Rotary *2 | 500*2000mm | |
Inverter | Fuling | |
Working Voltage | 380V/50HZ/3PH | |

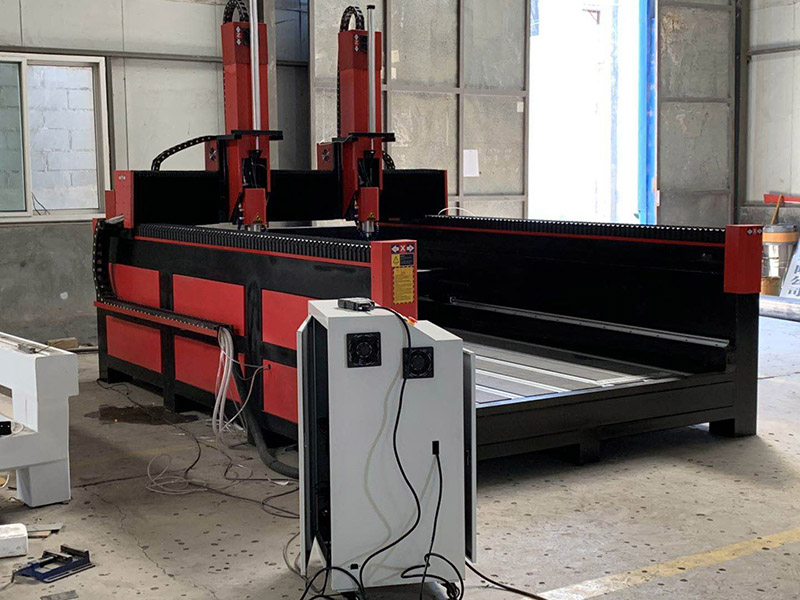

1.Adopted T type steel machine bed, strong rigidity, strong dynamics

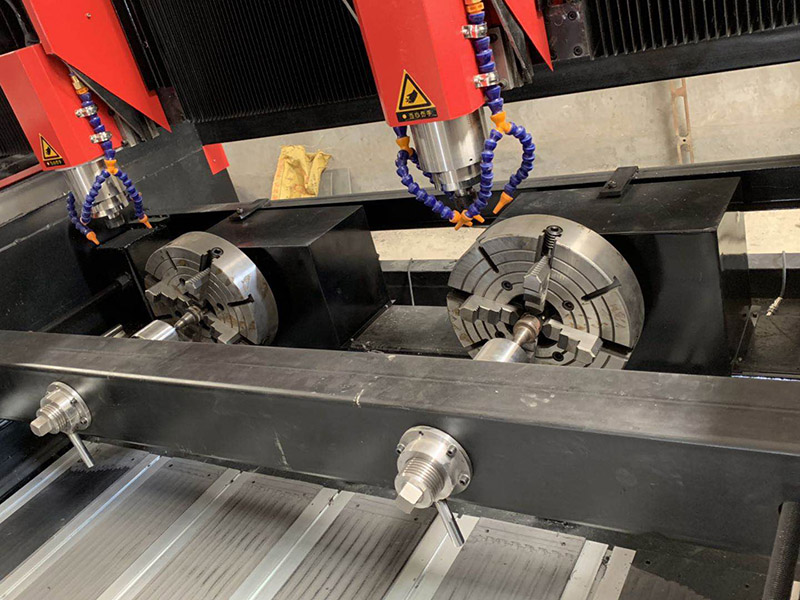

2.4th axis two rotary axis, diameter 500mm, working length 1200mm for stone cylinder carving.

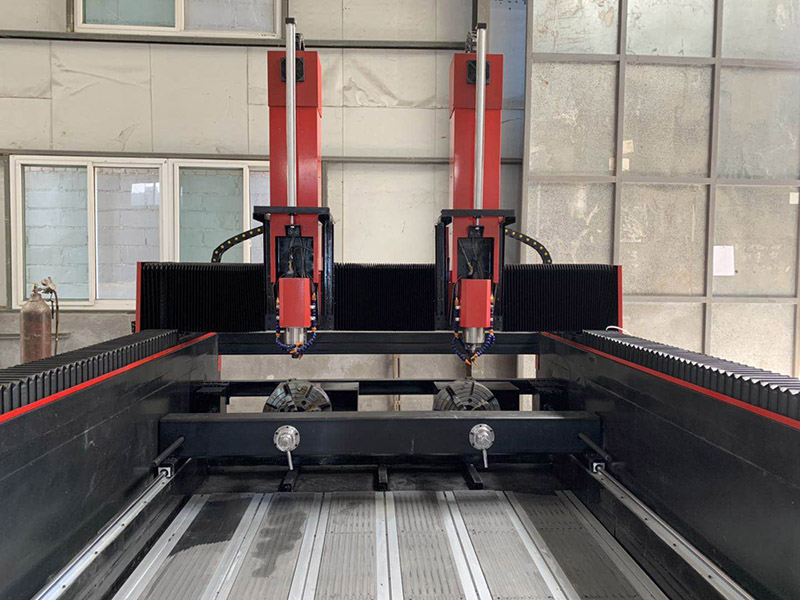

3.double independent Z-axis with Powerful 5.5kw water cooling spindle, easy to engraving all kinds of stone, not only fine engraving, but also the bottom smooth and clear.
Parameter
4.Memory of break point and power failure,ensuring continue working after breaking point or next time processing.
5.Special dustproof, waterproof device, effectively keep the transmission part cleaning and rust protection, more easy maintenance.
