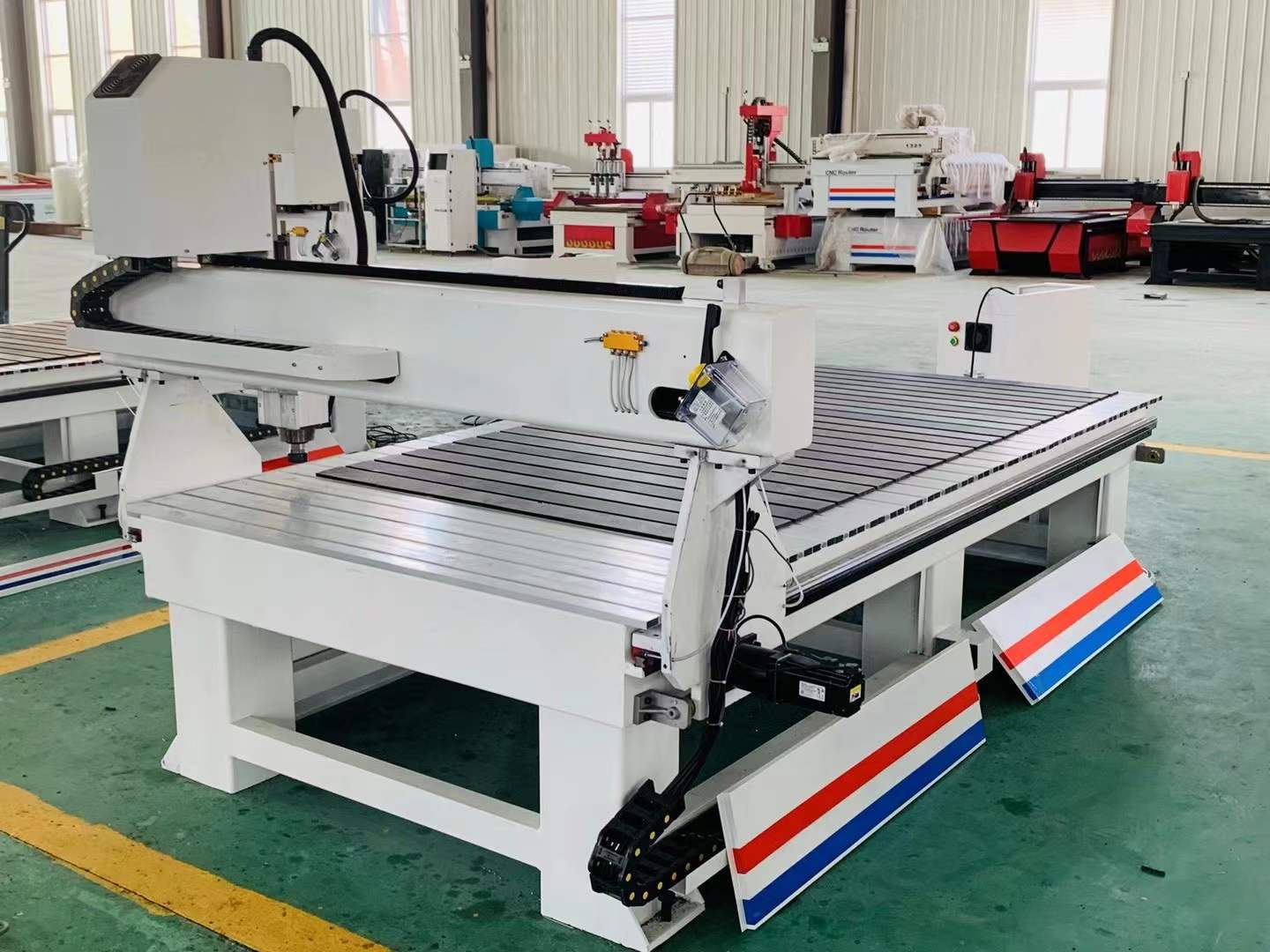

◆Stable bed structure: The advantages of the high-quality seamless steel welded bed are subjected to vibration aging treatment and stress test, and it will not be deformed after long-term use.

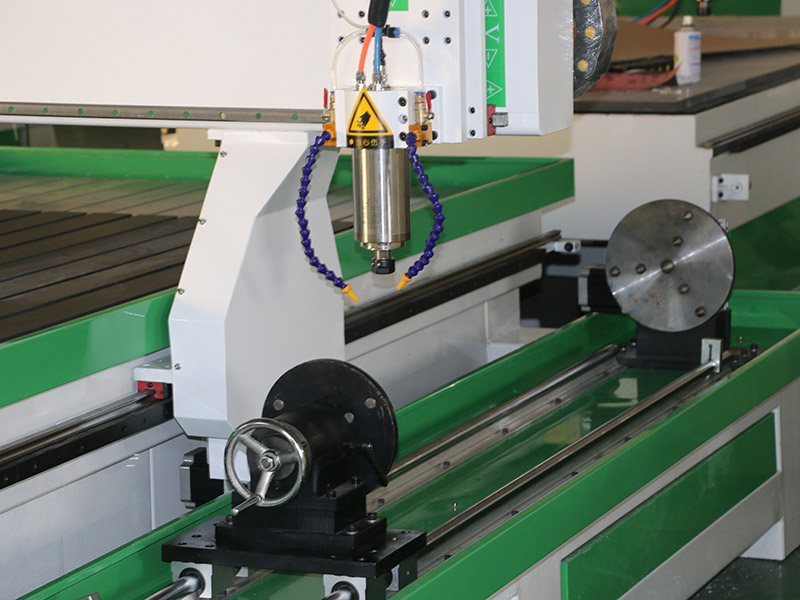

◆ Rotating shaft: thimble + chuck, double-safety fixing method, equipped with brand reducer, rotation without gap, strong durability.
◆Using high-precision rack and pinion transmission, with high precision, high speed and great power. The maximum operating speed can reach 30M/MIN, and the engraving of 2MM small characters is clear and distinct.
◆Highly flexible shielded cable: special cable for numerical control equipment, anti-interference, anti-static; high flexibility, long-term use will not break.
◆Maintenance system: automatic oil injection device, automatic quantitative maintenance, convenient and fast, and a wide range of users.

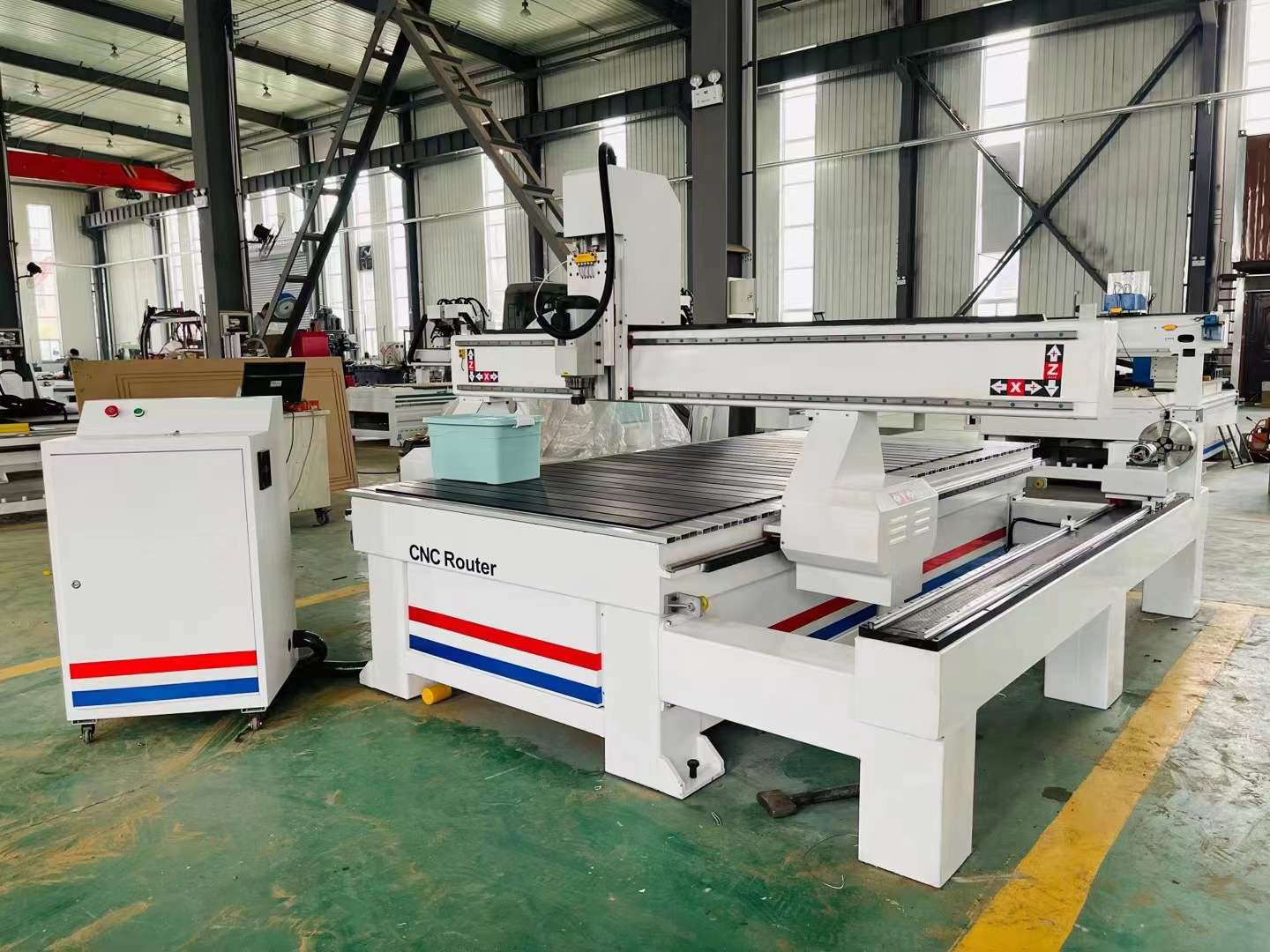

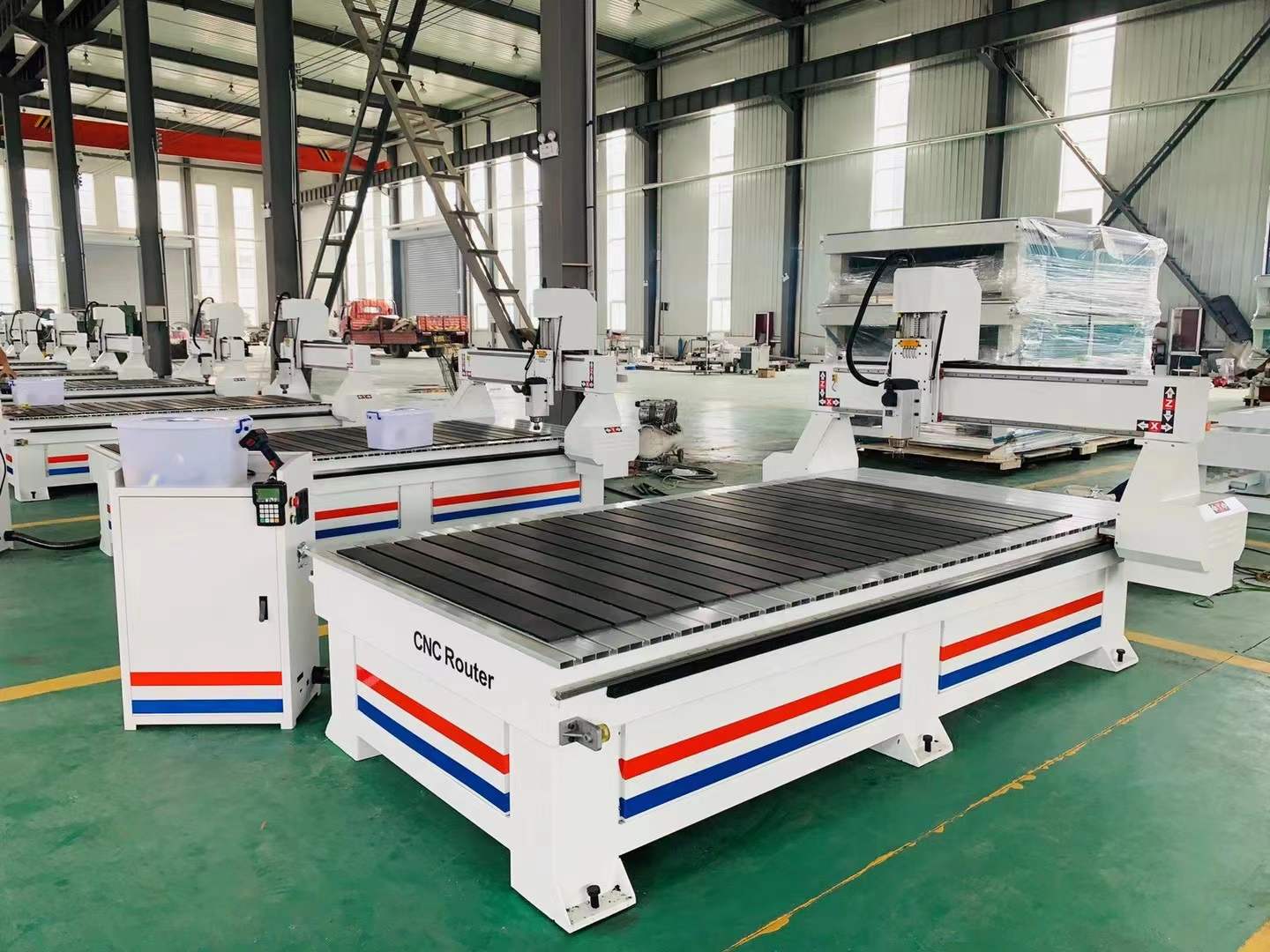

Model | PT-1325 |
Working area | 1300*2500MM |
Spindle power | 4.5kw water cooling spindle |
Drive system | Leadshine servo motor |
Rotary | 300mm dia |
Control system | DSP A18 |
Max air move speed | 80m/min |
Max working speed | 25m/min |
Reponsitioning accuracy | ±0.05mm |
Table structure | T SLOT TABLE |
Orbit | HWIN 20 |
Working Voltage | AC380V/3PH/50Hz |

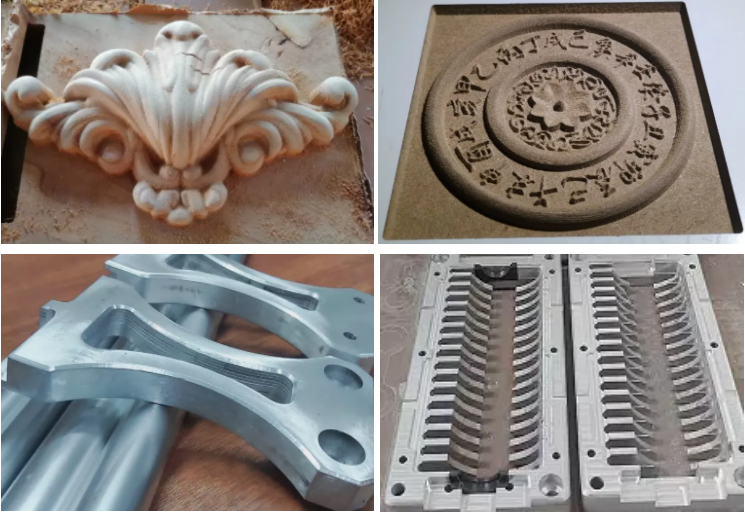

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out and simple copper aluminum plastic board, etc.
