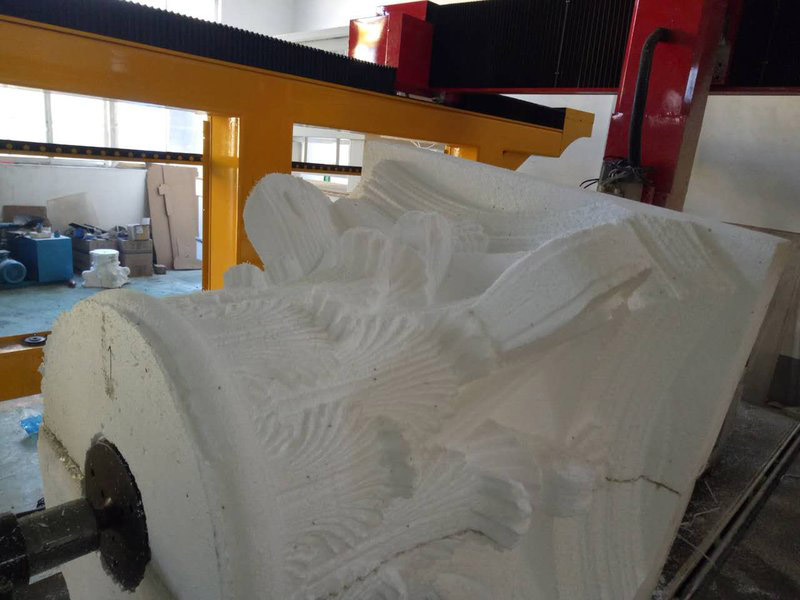

Foam mold, oodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out and simple copper aluminum plastic board, etc.
Specification | PT-2040E | Notes | |
Working Area(X*Y*Z) mm | 2000*4000*1000mm |
| |
Spindle motor | Brand | HSD | 18000-24000r/min |
| Power | 9KW/unit |
|
| Cooling | Air Cooling |
|
| Working speed | 18000rpm |
|
Drive system | Type | Yaskawa servo 1300w |
|
| Driver motor | YASKAWA |
|
| Driver | YASKAWA 1300w |
|
Inverter | Brand | Fuling inverter |
|
| Power | 11KW/unit |
|
Control system | Syntec 6MB | 8 Servo knife tool changer | |
Guide rail | Taiwan CSK |
| |
Ball Screw | Taiwan TBI |
| |
Working table | Double vacuum adsorption table |
| |
Lubrication | Automatic central centralized lubrication system |
| |
Rotary | 600*1200mm |
| |
Reduce gear | Japan SHAMPO |
| |
X transmission | 30 square guide 1.5M high accuracy helical tooth reduce 8:1 |
| |
Y transmission | 30 square guide 1.5M high accuracy helical tooth reduce 8:1 |
| |
Z transmission | 30 square guide high precision helical tooth reduce 8:1 |
| |
Rack | Xinyue rack |
| |
dust collector | 5.5Kw |
| |
Electrical cable | Shanghai cable |
| |
Wiring standards | CE standard |
| |
Electrical | shneider |
| |
magnetic valve | Germany imported |
| |
Air cylinder | Germany imported |
| |
2.Specially designed stable High 1000 Z-axis feeding height, more more thickness materials engraving & cutting.
3. Imported Hiwin 30, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity, high precision, smooth and steady running. Adopt imported precision lead ball screws, tools feeded with more accuracy.

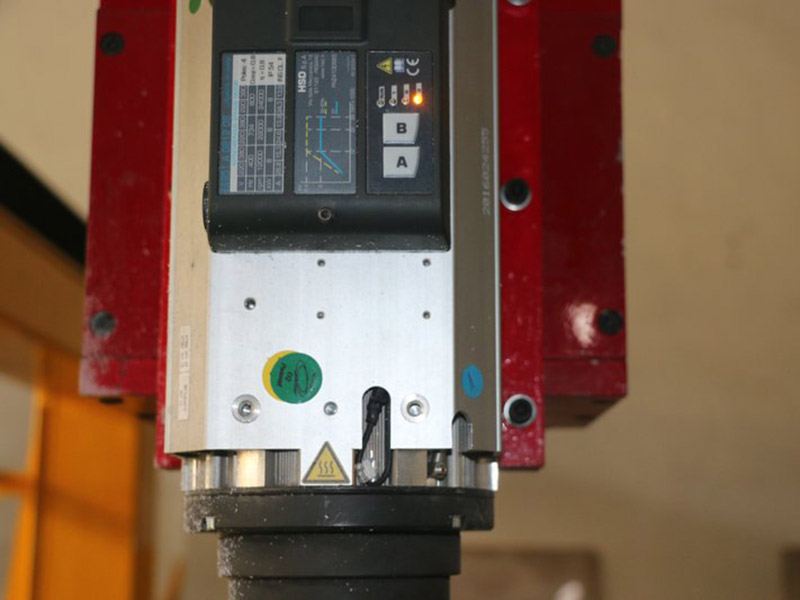

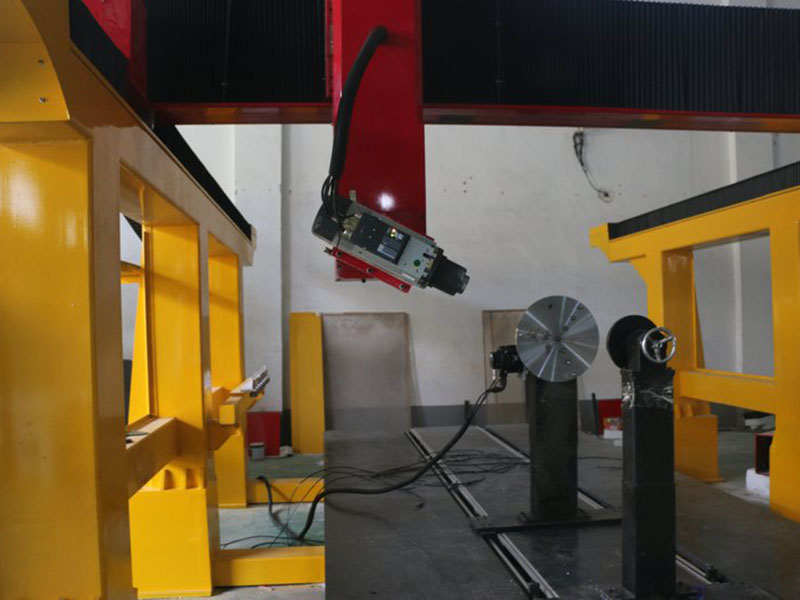

4. Large power 9kw HSD Italy air cooling spindle which is with stable performance and high torque, matched with high-performance Frequency Inverter.
6. 4 axis SYNTEC 6MB control system with industrial control system and handwheel, safe and reliable operation, efficient speed to read the code, and have the online analog functions, on-line monitoring function to ensure efficient and safe processing.
7.Adopted the advanced Linear ATC system which can change 8 pieces tools intelligently. Tools changing time is within 10 seconds greatly improved production efficiency.
