1)Rack gear transmission ensure fast speed and accuracy.
7)This machine has auto tool sensors system, convenience and save time.
The advantage is low investment, high profit, low maintemance easy to operate. It is also easy foe new user to operate.
NO. | Items | Parameters | Option | ||
1 | Working Area | XYZ | 1200*1200*200mm | ≤200mm | |

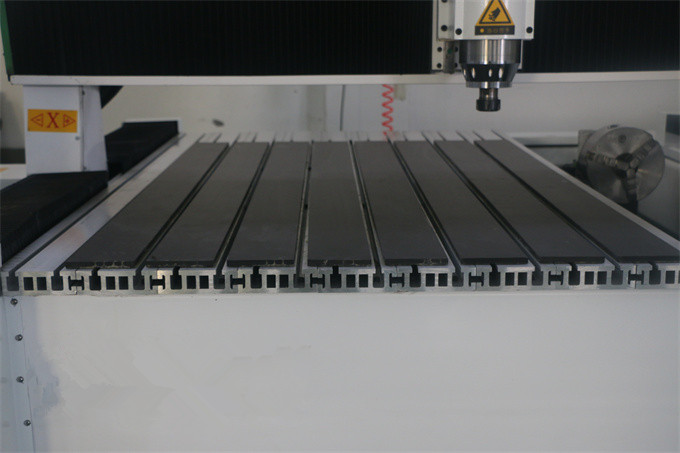

3 | Table Type | T-Slot aluminum | Vacuum table | ||
4 | Accuracy | Working Accuracy | ±0.03/300mm | ||
Repositioning Accuracy | ±0.03/300mm | ||||
6 | Drive system | X,Y with Rack and Pinion Z with lead screw | |||
7 | Speed | MAX Traveling Speed | 32000mm/min | ||
MAX Working Speed | 15000mm/min | ||||

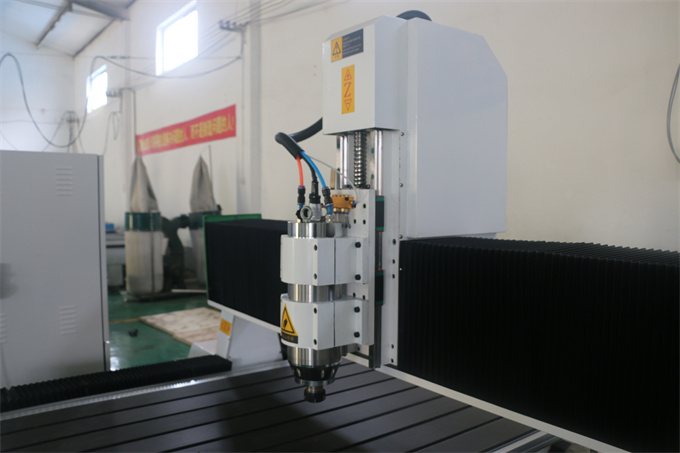

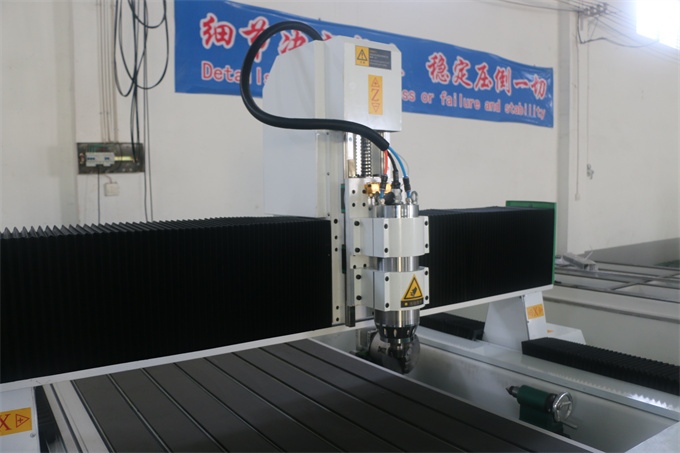

8 | Spindle | Spindle Power | 3KW water cooling spindle | Italian HSD Spindle | |
Spindle Speed | 0-24000r/min Stepper | Servo | |||
10 | Drive and Motor | ||||
12 | Working Voltage | AC380V/50Hz | AC220V/60Hz | ||
14 | Operating System | DSP A18 | |||
15 | Net Weight/Gross Weight | 200KG/300 KG | |||

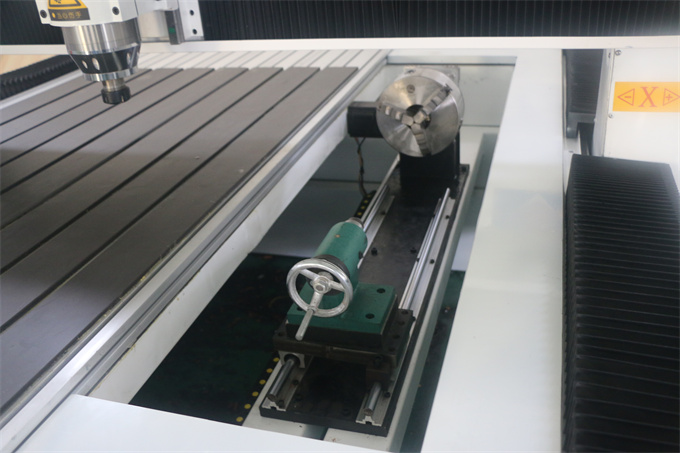

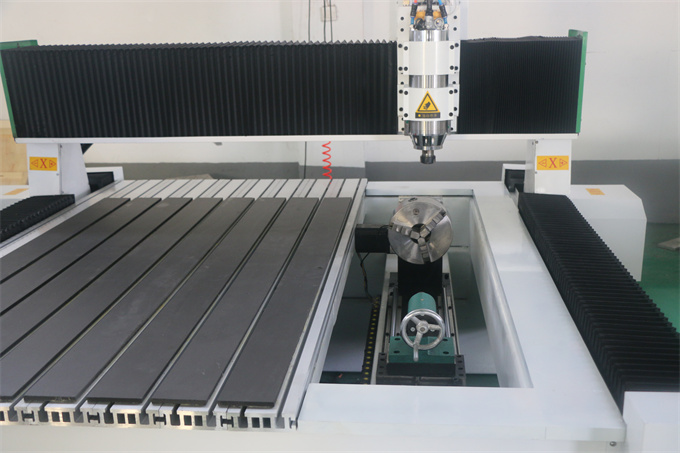

16 | rotary | 200*1000mm
| |||

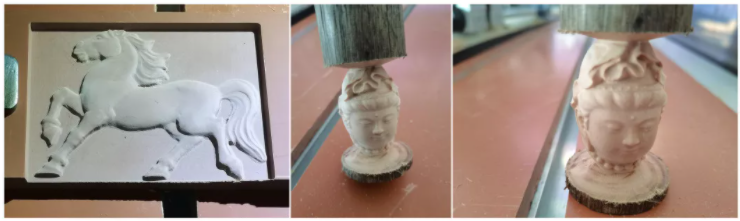

Wood furniture processing industry, Home decoration, Wooden crafts processing industry, Large panel cutting , large relief carving
products, Car modification and Loudspeaker Box making industry
