1.Adopt imported square guide rail,double row slide block and the imported ball screw makes the machine working steadily,high precision and long life time.

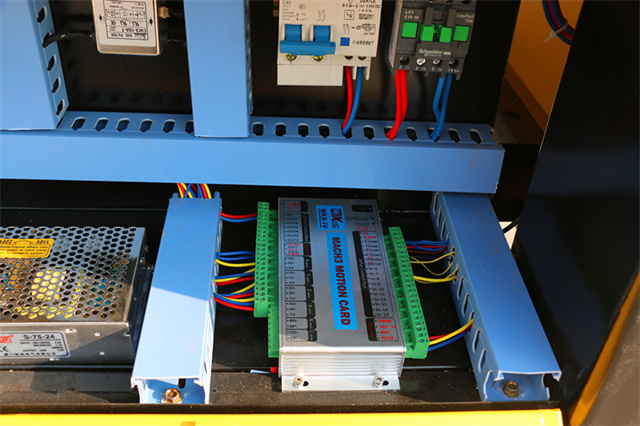

2.With advanced DSP system,operated with the USB handle,convenient operation, humanization design.
3.Compatible with type3/artcam/castmate/proe/coreldraw/wentai and other cad/cam software.

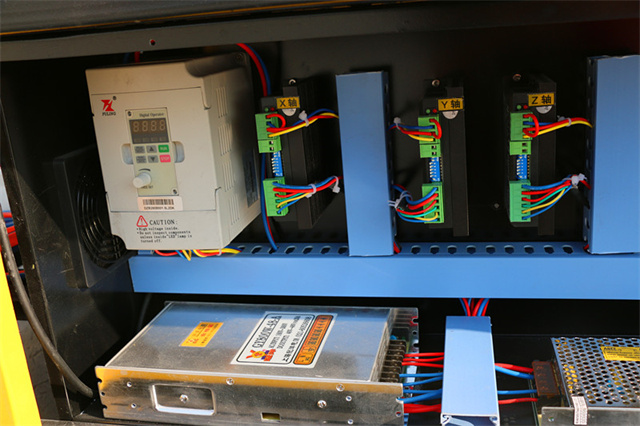

4.Adopt high speed stepper motor and drivers and to motors for Y axis,max speed can reach to 35m/min
NO. | Items | Parameters | Option | ||

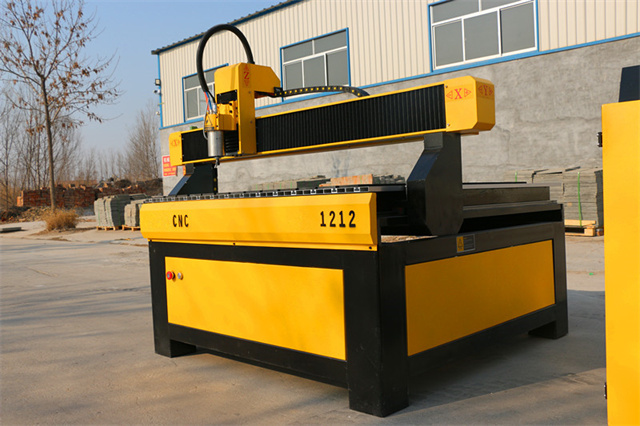

1 | Working Area | XYZ | 1200*1200*150mm | ≤200mm | |

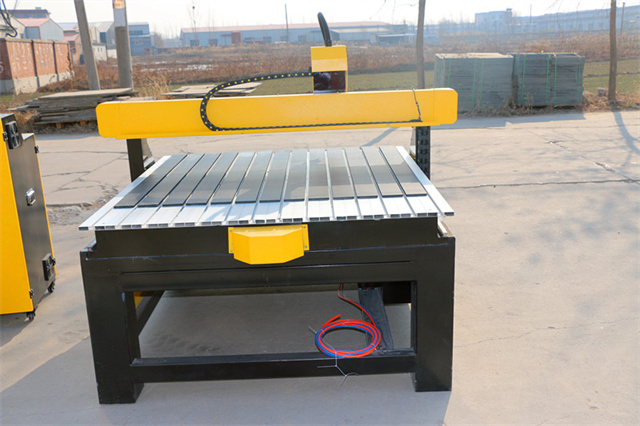

3 | Table Type | T-Slot aluminum | Vacuum table | ||
4 | Accuracy | Working Accuracy | ±0.03/300mm | ||
Repositioning Accuracy | ±0.03/300mm | ||||
6 | Drive system | X,Y with Rack and Pinion Z with lead screw | |||
7 | Speed | MAX Traveling Speed | 32000mm/min | ||
MAX Working Speed | 15000mm/min | ||||

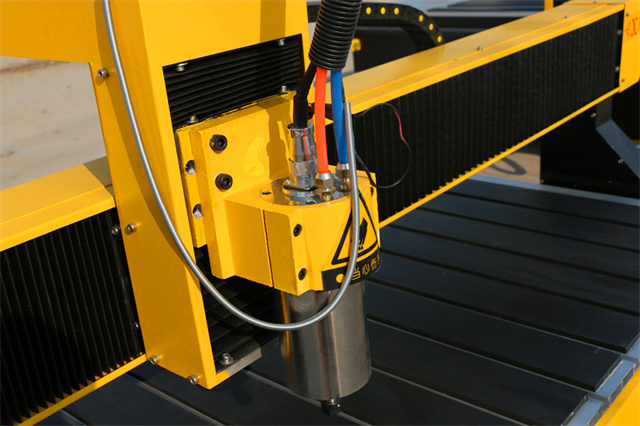

8 | Spindle | Spindle Power | 3KW water cooling spindle | Italian HSD Spindle | |
Spindle Speed | 0-24000r/min Stepper | Servo | |||
10 | Drive and Motor | ||||
12 | Working Voltage | AC380V/50Hz | AC220V/60Hz | ||
14 | Operating System | Mach 3 | |||
15 | Net Weight/Gross Weight | 200KG/300 KG | |||
16 | Packing size | 1320*1020*1050mm
| |||
Guarantee: 3 years guarantee of the whole machine+1.5 years warranty for motor and spindle
2.Software issue:
Supply technical support for machine lifetime free.
3.Hardware issue:
Main parts(excluding the consumables) shall be replaced/ repaired free of charge if there is any problem during the warranty period.
4.Support online:
our engineer will solve your question online until soloved.
5.Training in our factory:
We are able to train your staff after placed order in our factory for free.
6.Oversea service:
We are able to send technician to your workshop to do the installation and training. You will need bear the
related costs. (flight,visa,hotel,training costs, etc.)
