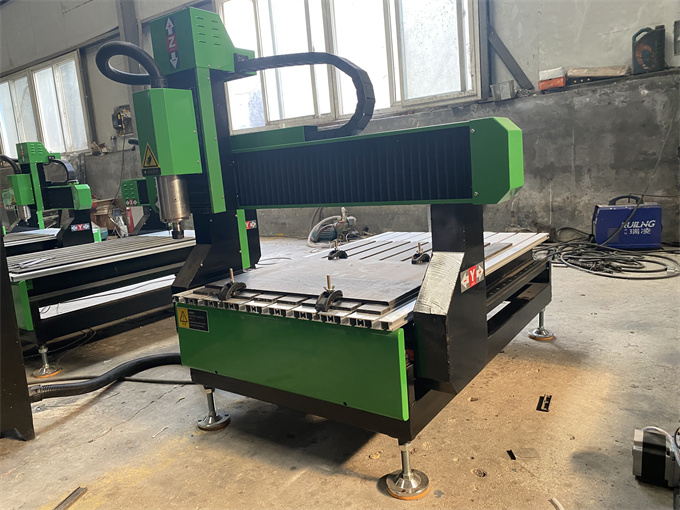

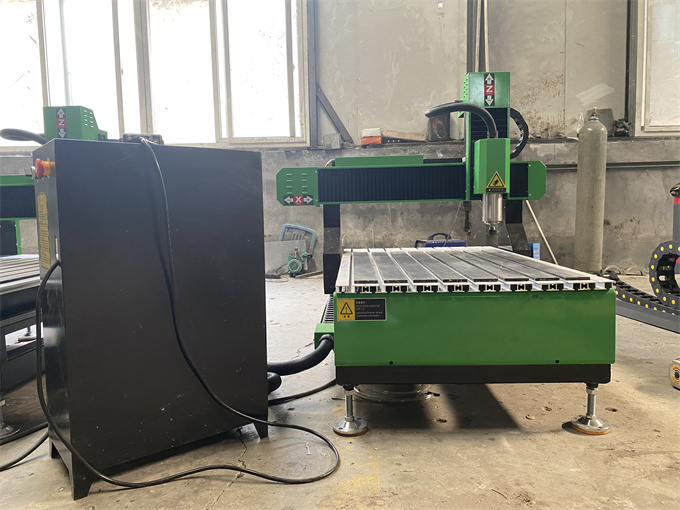

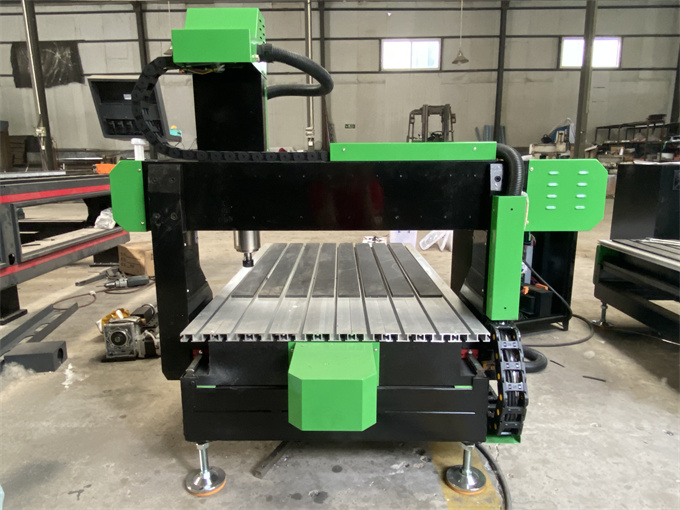

♦ 600x900x120mm working size

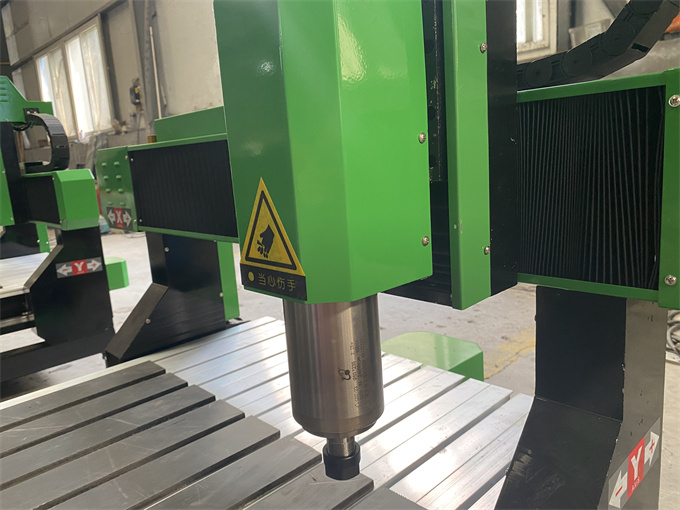

♦ 1.5kw water cooling spindle

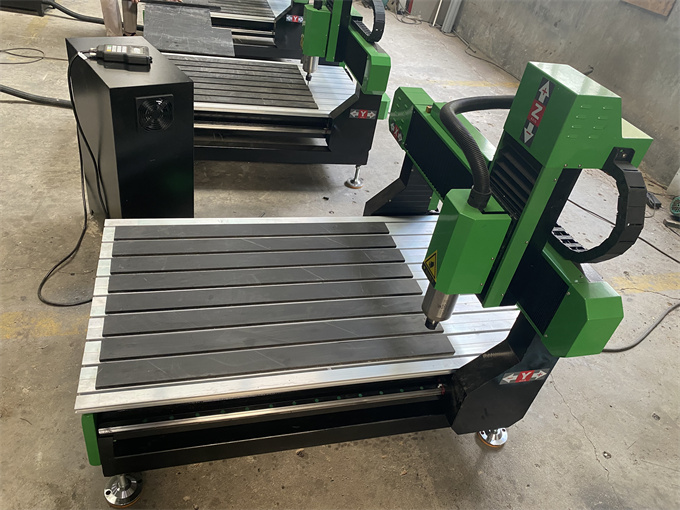

♦ T-slot aluminum working table

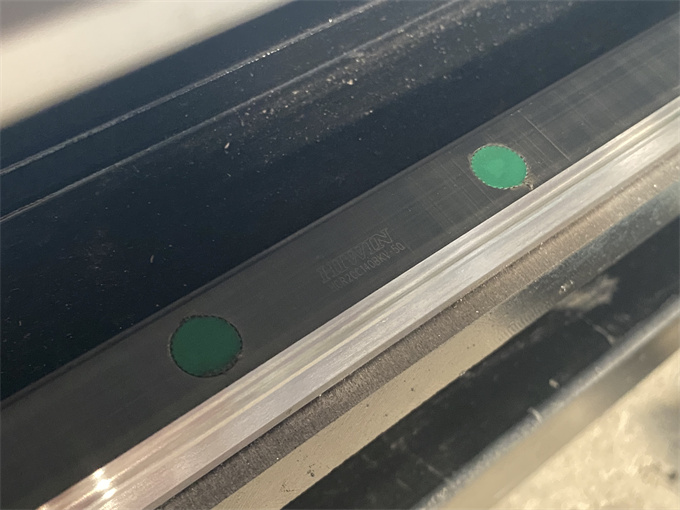

♦ HIWIN Linear guide
♦ NC studio control system

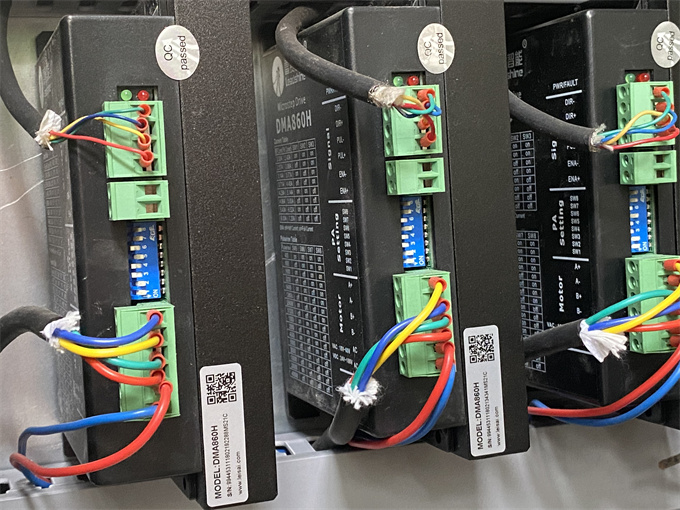

♦ Stepper motor and driver

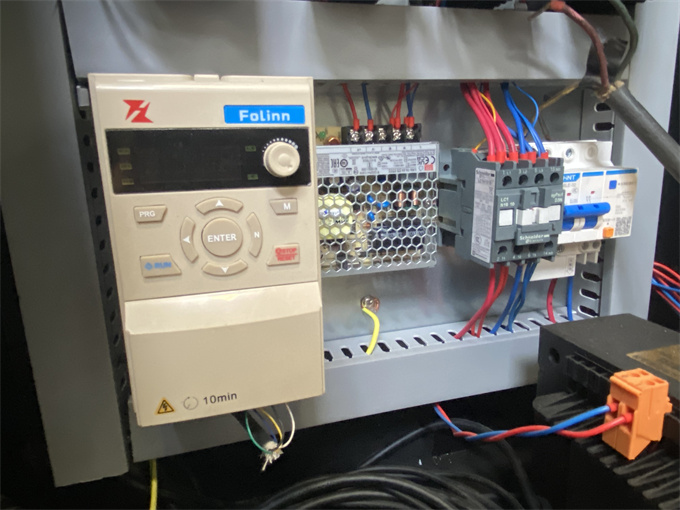

♦ Fuling interver
♦ Ball screw transmission

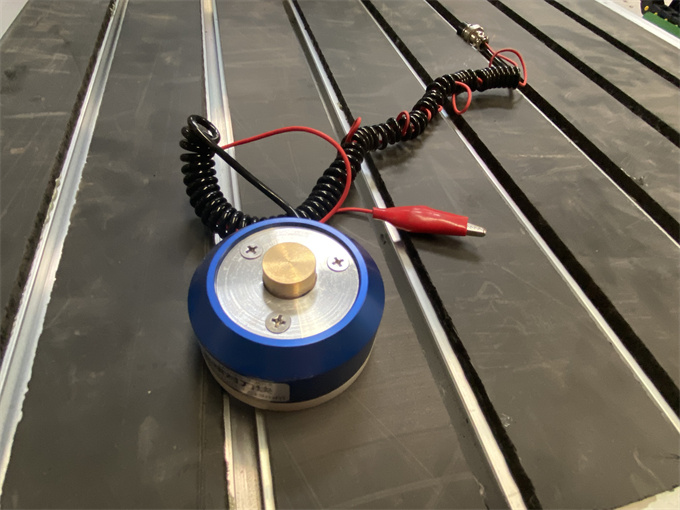

♦ Automatic Tool Calibration
♦ ArtCam software
Option:
♥ Vacuum System
♥ Dust Collector system
♥ water tank for metal
♥ HSD Spindle

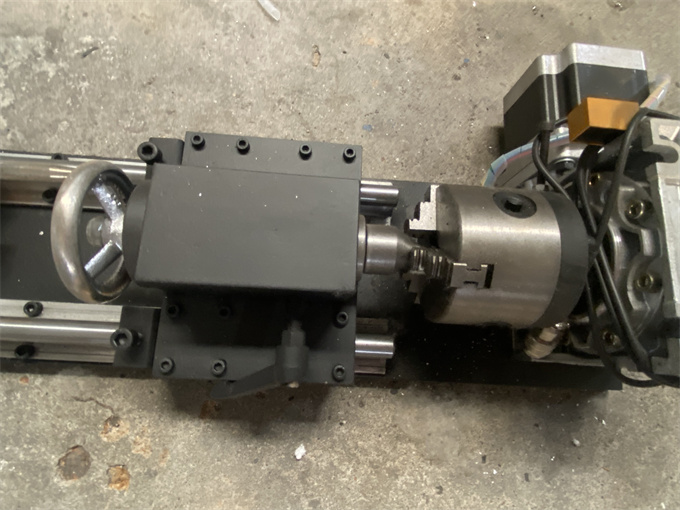

♥ Rotary Axis
NO. | Items | Parameters | Option | ||
1 | Working Area | XYZ | 600*900*120mm | ≤200mm | |
3 | Table Type | T-Slot aluminum | Vacuum table | ||
4 | Accuracy | Working Accuracy | ±0.03/300mm | ||
Repositioning Accuracy | ±0.03/300mm | ||||
6 | Drive system | X,Y with Rack and Pinion Z with lead screw | |||
7 | Speed | MAX Traveling Speed | 32000mm/min | ||
MAX Working Speed | 15000mm/min | ||||
8 | Spindle | Spindle Power | 1.5KW water cooling spindle | Italian HSD Spindle | |
Spindle Speed | 0-24000r/min Stepper | Servo | |||
10 | Drive and Motor | ||||
12 | Working Voltage | AC380V/50Hz | AC220V/60Hz | ||

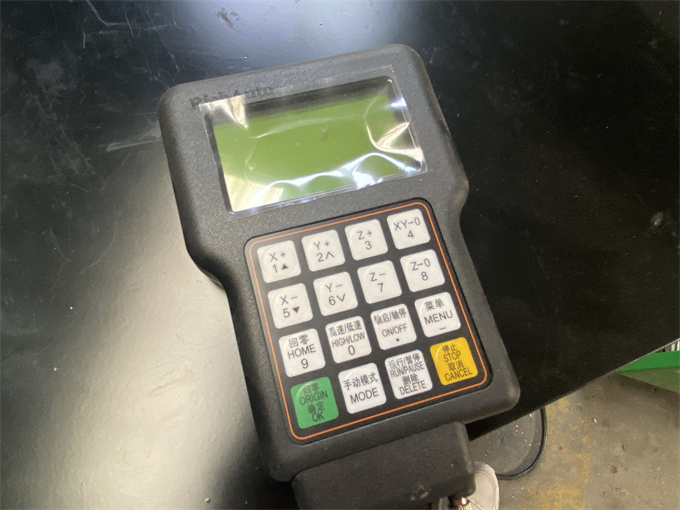

14 | Operating System | DSP | |||
15 | Net Weight/Gross Weight | 200KG/300 KG | |||
16 | Packing size | 1320*1020*1050mm
| |||
♥ Decoration industries: 3d woodworking,screens, wave boards, large-size wall hangings, advertising boards and sign making.
♥ Arts & Crafts industries: Engrave on artificial woods, bamboos, organic boards, double-color boards and so on for achieveing effects of exquisite patterns and characters.
♥ Processing material: engraving, milling and cutting processing for acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum.
