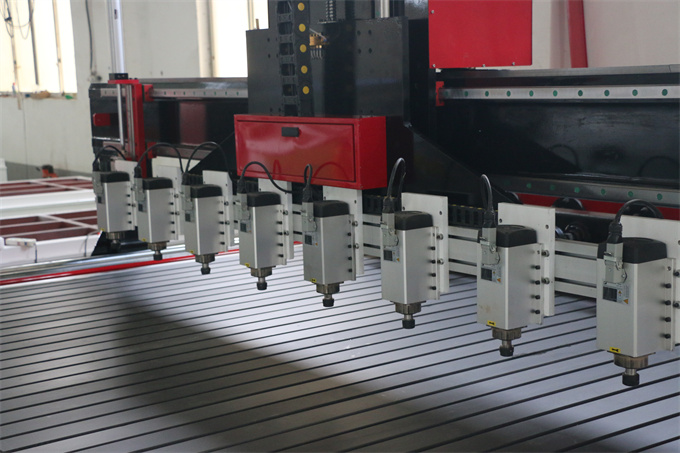

3.5KW AIR COOLING SPINDLE

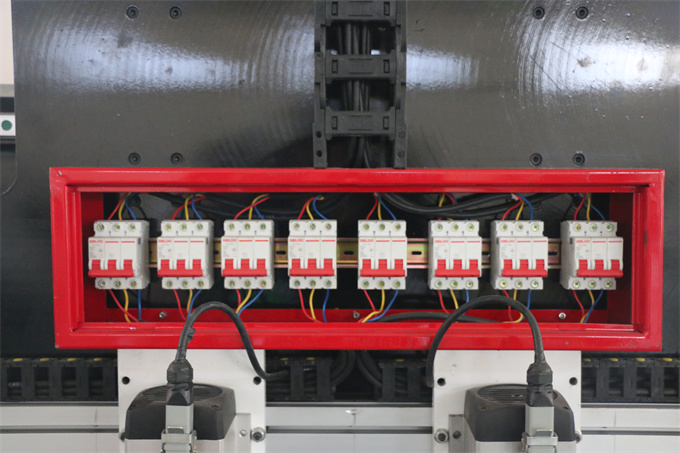

Switch for every spindle

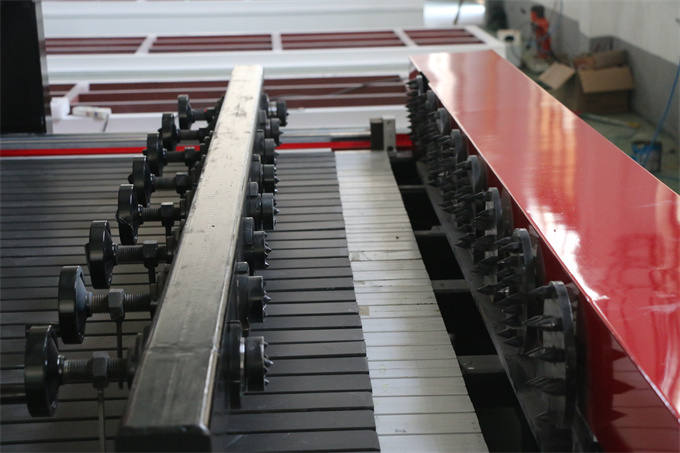

4 axis rotary : 250*2000mm

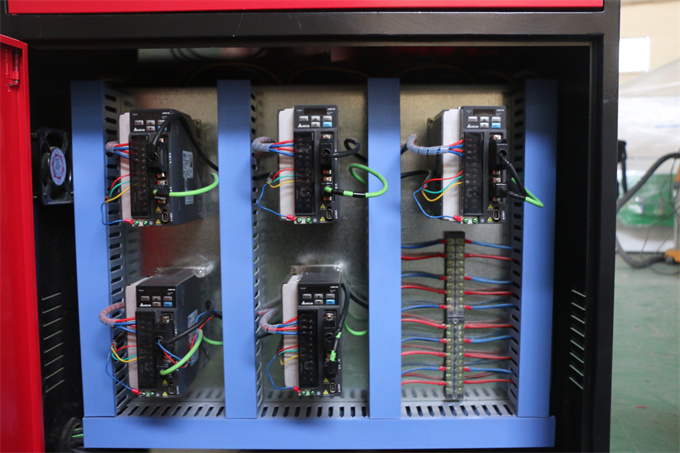

Servo motor

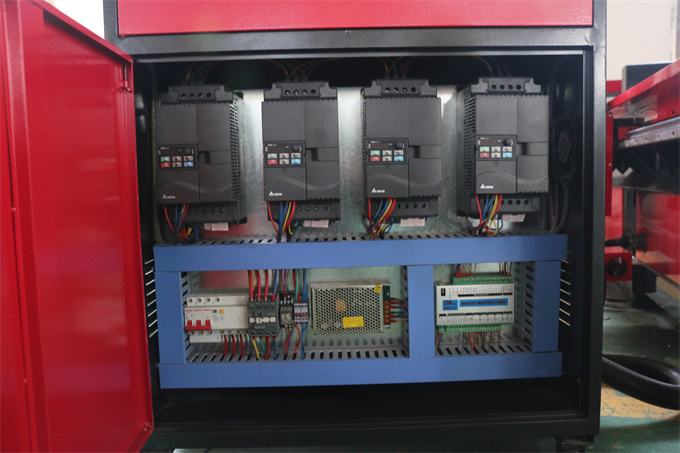

Delta inverter

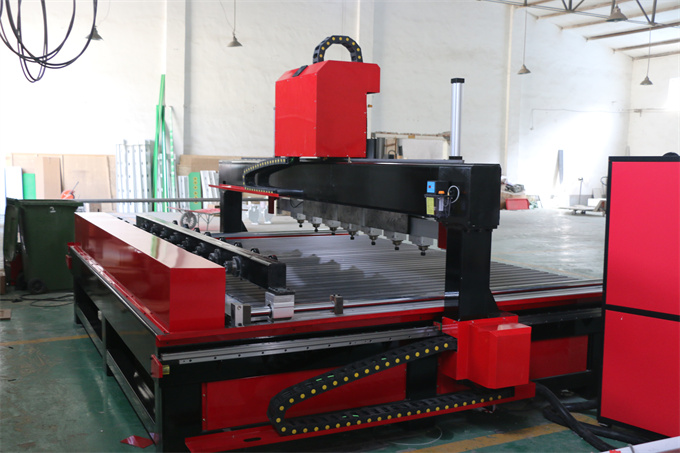

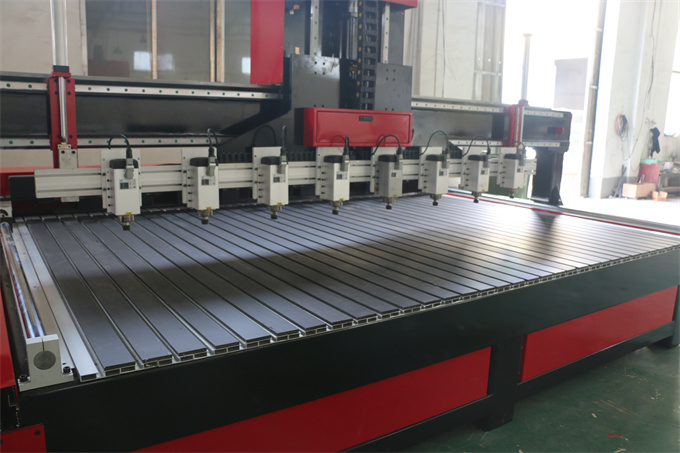

ITEM | 2520 CNC ROUTER | OPTIONAL PARTS |
X Y Z Working area | 2500*2000*200mm | Other size is optional |
X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm | |
X,Y,Z Repositioning Accuracy | ±0.01 mm | |
Table Surface | T.slot table | vacuum table |
Machine body | Thick,strong and high quality steel tube welded | |
X,Y axis driving way | Rack and Pinion /Linear square guide rails& Blocks imported from Taiwan, HIWIN brand | |
Z axis driving way | Ball screw / Linear square guide rail and blocks imported from Taiwan, HIWIN brand | |
Max. Power Consumption | 2.0kw(without spindle) | |
Max. Rapid Travel Rate | 33,000mm/min | |
Max. Working Speed | 25,000mm/min | |
Spindle Power | 3.5KW AIR cooling spindle*8 | Italy HSD or Chinese air cooling spindle |
Spindle Speed | 0-18000 RPM | 0-18000RPM |
Inverter | Fuling | Yaskawa, Panasonic,Delta or others |
Working Voltage | AC380V/50-60Hz/3PH | AC220V/50-60Hz/Single or 3 phase |
Command Language | G Code | |
Control system | NC studio | DSP, Mach 3, Syntec or others |
Computer Interface | PCI | USB |
X,Y Resolution | < 0.01mm | |
Software Compatibility | Type3/ Artcam Software) | |
Dust collector | 2.2KW with 2 bags | 3KW/4KW |
Running Environment Temperature | 0°-45° | |
Relative Humidity | 30%-75% | |
Packing Size | 2030*3100*1740mm | |
Net weight | 1600kg | |
Gross weight | 1800kg |

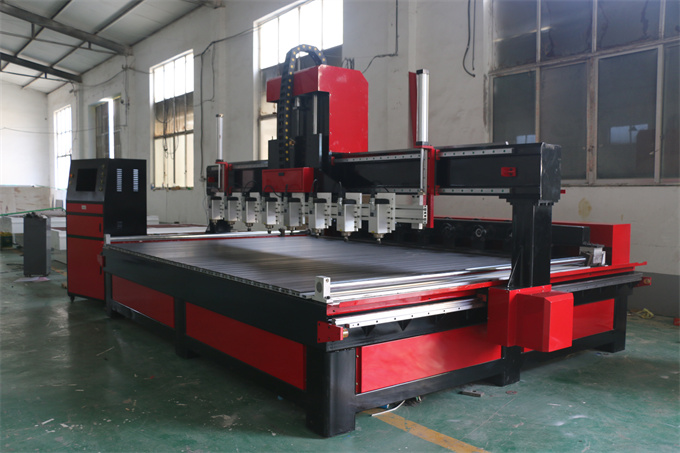

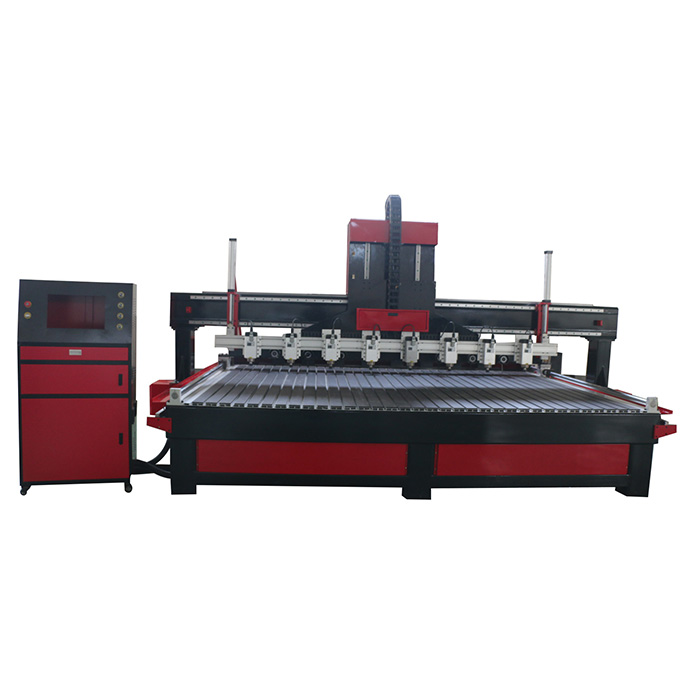

What can the multi head cnc machines do?
This multi head cnc machines can be used to carve patterns on wood, aluminum board, brass board, plastic, density board, PVC, acrylic etc.
1.Furniture Industry
This multi head cnc machines can be used in furniture carving and cutting to make wood doors, composite gates, cupboard doors, interior doors, sofa legs, headboards, antique furniture and other panel furniture.
2. Decoration Industry
This multi head cnc machines can be applied to engrave decorative patterns on the surface of decorative paintings, screens,three-dimensional wave boards, and acoustic boards.
3.Craft Industry
This multi head cnc machines can be used to engrave decorative patterns on craftworks, automobile accessories and other craftworks.
