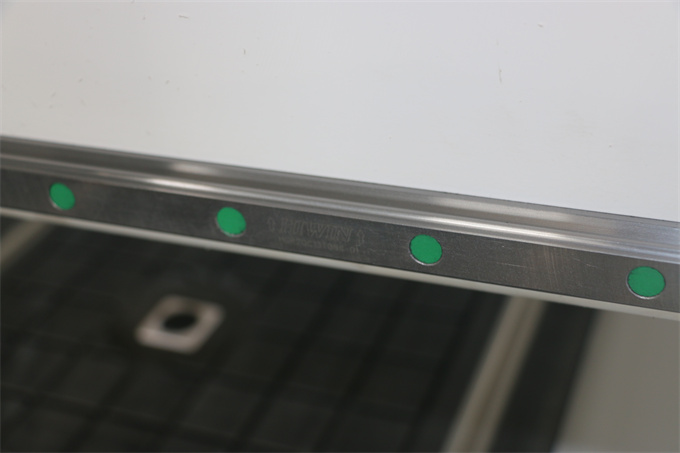

★Imported linear guide rail, double-row four columns ball bearing,huge bearing capacity,good moving stability,long lifetime.Imported ball-screw,high precision.
★Adopting high-precision gear rack transmission, faster working and high precision.
★Equipped with the USB of remote operation and DSP operating system,lever operation is very simple and advanced.
★Be compatible with several CAD/CAM designing software, type3,ARTCAM, CASTMATE,UCANCAM etc.

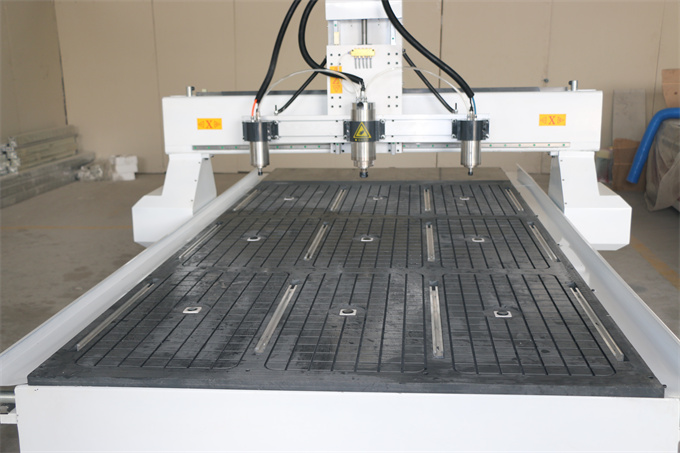

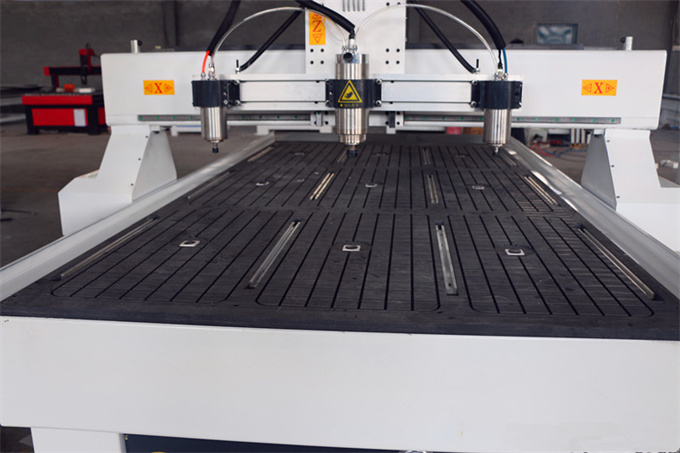

★Adopting the international advanced technology of vacuum adsorption table , equipped with the strongly vacuum pump, the design of six partition can adsorb the different area of the material strongly.
★Adopting the stepper motor drives, Y axis adopts double motor drive to make the spindle engrave faster.

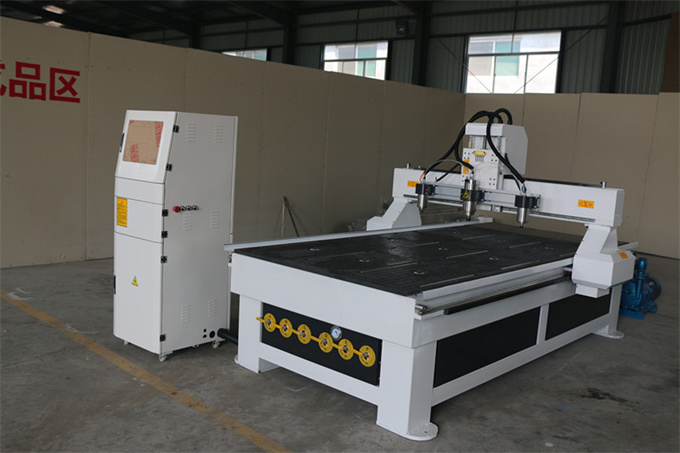

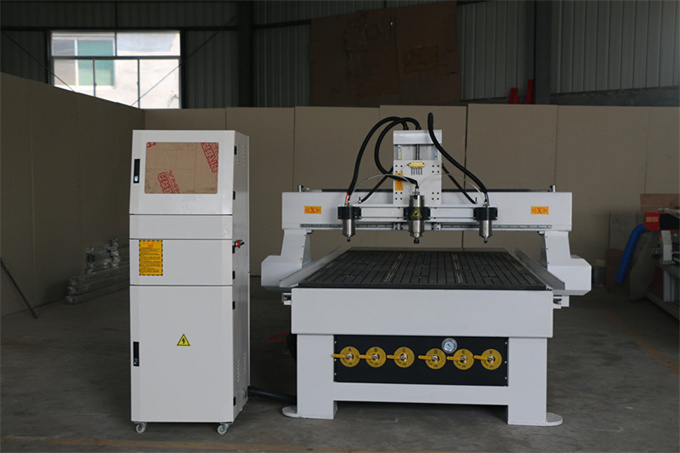

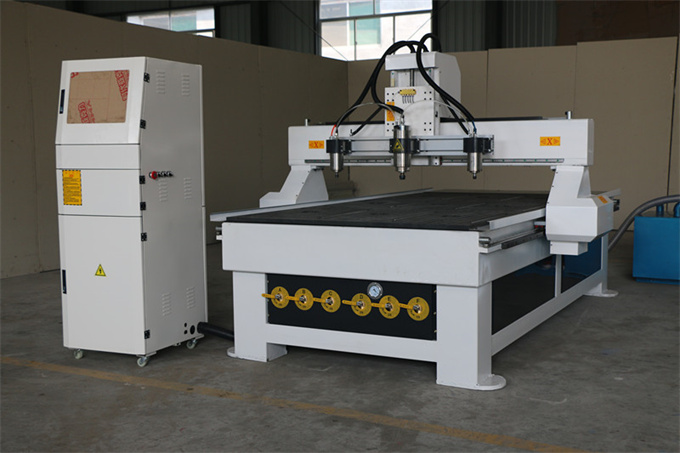

Model | PT-1325 |
Working area | 1300*2500mm |
Spindle power | 3kw *4 |
Inverter | Fuling |
Drive system | stepper motor |
Control system | dsp |
Max air move speed | 80m/min |
Max working speed | 25m/min |
Reponsitioning accuracy | ±0.05mm |
Vacuum pump | 7.5KW |
Table structure | Vacuum suction |
Orbit | Hiwin 20 |
Working Voltage | AC380V/3PH/50Hz |
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,craft sash,
composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

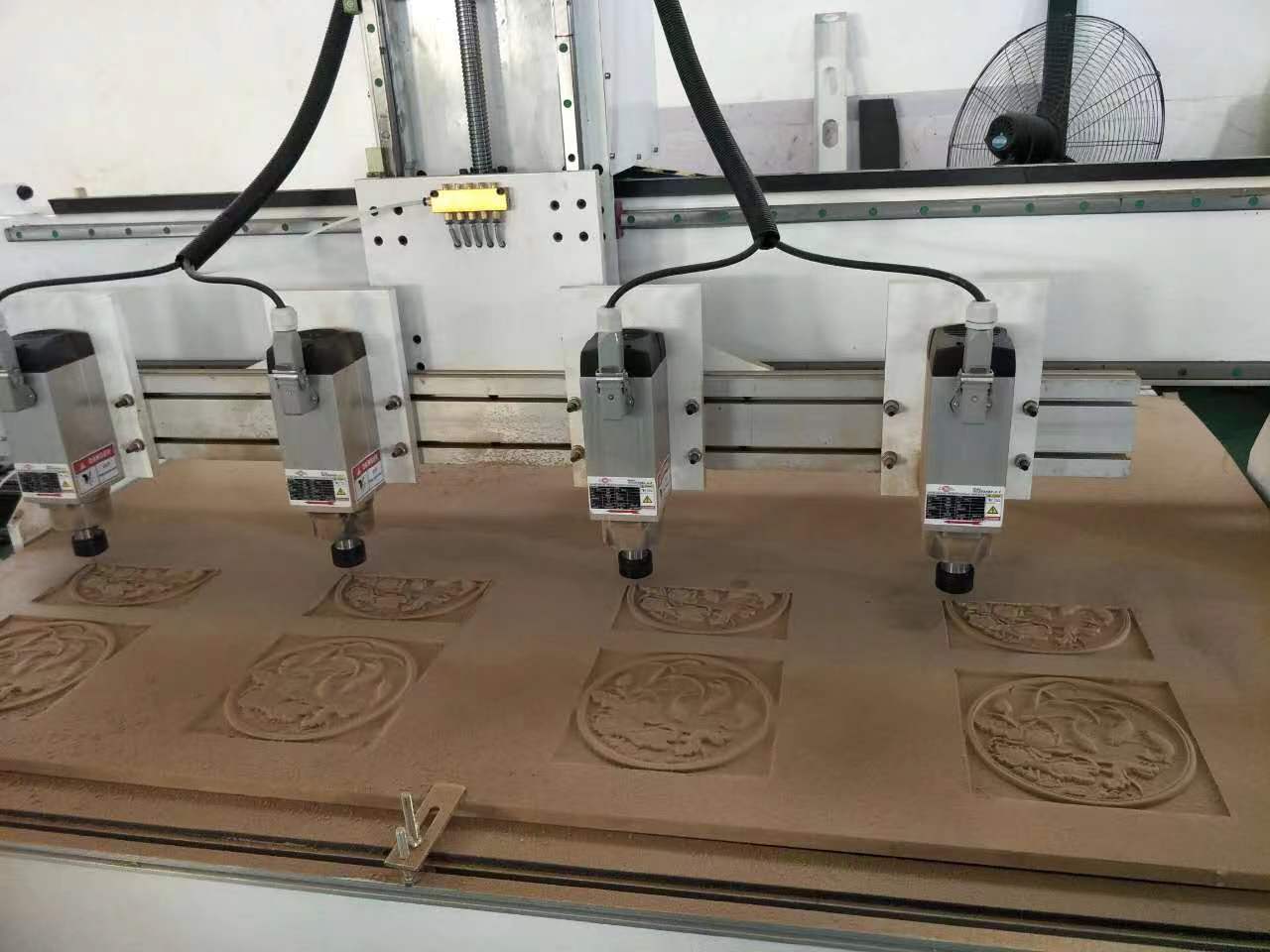

4. relief sculpture, 3D engraving & Cylinder object engraving.
