Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, pickle plate, aluminum-plating Zinc plate, metallic copper and other metals.
Specially used for cutting 0.5-30mm carbon steel sheets (pipes), 0.5-15mm stainless steel sheets, galvanized steel(pipes), electrolytic zinc-coated steel sheet(pipes), silicon steel(pipes) and other kinds of thin metal sheets and pipes. Range of pipe diameters: 20-220mm.
Modle | PT-3015 |
Laser source | IPG or Raycus fiber laser source |
Fiber laser power | 500W, 750W, 1000W, 1500W, 2000W, 3000W (Optional) |
Working size | 3000*1500mm |
X and Y positioning accuracy | +-0.02mm |
Transmission mode | import Germany Atlanta high precision gear and rack with double driving rack fiber laser cutting machine |
positioning accuracy | 0.03mm/m |
Repeatability | +-0.02mm/m |
Max travelling speed | 100m/min |
Rated voltage and frequency | 380V 50Hz |
Total power | 11.25kw |
1.Germany Precitec / Swiss Raytool laser head, automatic focus height follower optional.
2.GERMANY IPG fiber laser generator, 500W, 750W, 1KW, 2KW, 3KW, 4KW, 6KW, 8KW Optional
3.Japan Yaskawa servo motor system.
4.Taiwan HIWIN linear guide rail.
5.Cypcut controlling system.
6.BEST Germany Atlanta double driver rack gear.

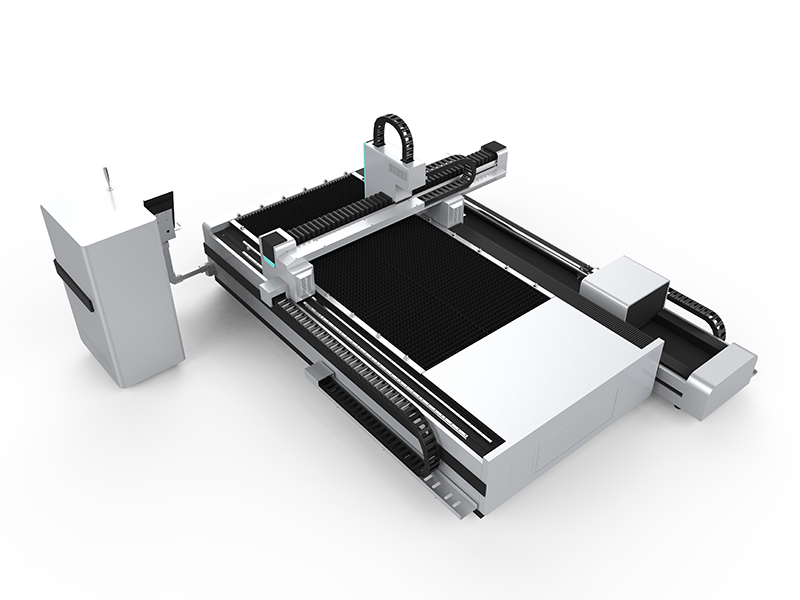

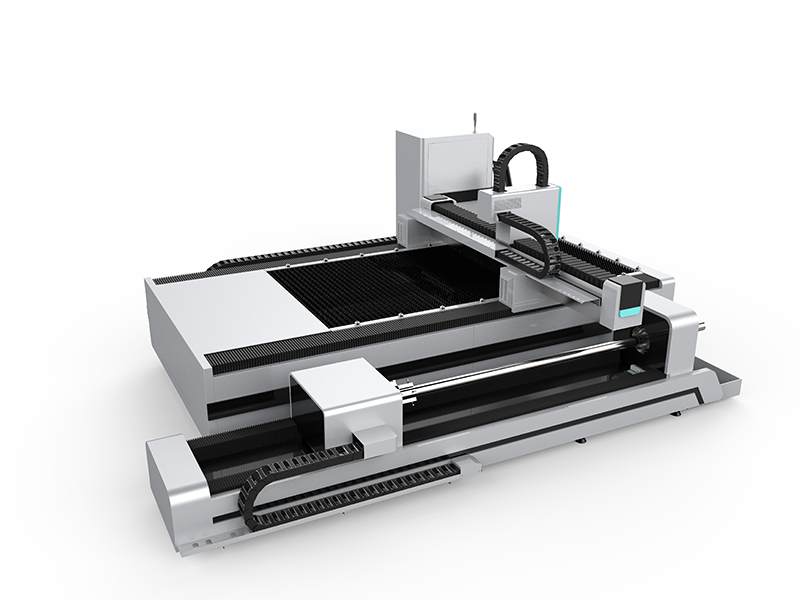

7.Plate and tube fiber laser cutting combination,one machine dual use;
