✦Applicable Materials: Our leapion high quality CO2 laser cutting and engraving machine is usually used in acrylic,wood, leather, paper, plexiglax,rubber and other nonmetal materials
✦Applicable Industries:
Rubber,plastic,cloth toys,leather ,computer embroidery cutting, mould, crafts ,bamboo and wood, advertising and building decoration ,packaging and printing ,paper products.

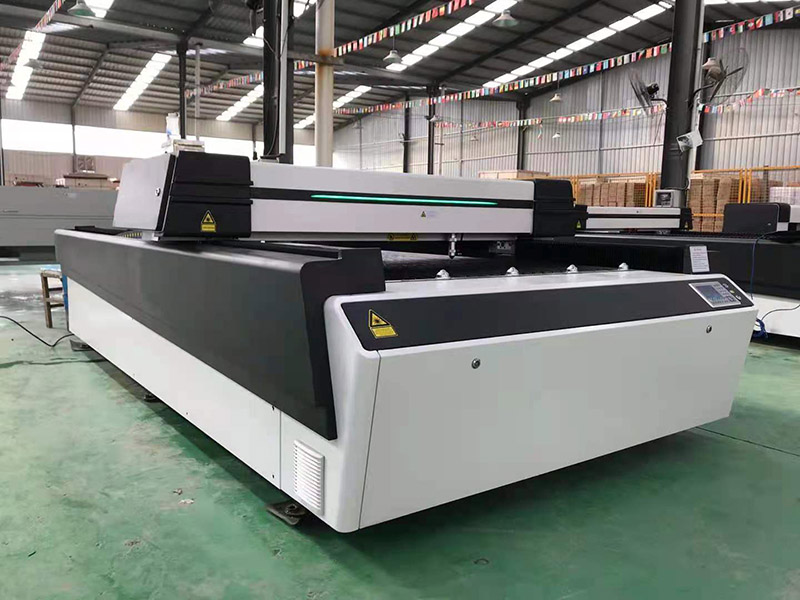

Specification for 1325 laser engraving cutting machine | ||
Main configuration | Laser power | EFR tube ( 60w/80w/100w) or Reci w2 tube 100w |
Controller | Ruida 6442s controller ( Rdworks v8 ) | |
Guide rail | Y-Axis double linear guide rail | |
Work table | Honey comb table +blade work table ( electrical up and down ,lifting distance 180mm ) | |
Main performance parameters | Engraving speed | 0-700mm/s |
Cutting speed | 0-100mm/s | |
Support Fils | BMP,HPGL,PLT,DST and AI etc. | |
Resolution | ±0.05mm/1000DPI | |
Minimum Letter | English 1×1mm (Chinese Characters 2*2mm) | |
Position system | Red dot position | |
Other parameters | Power Voltage | AC 110 or 220V±10%,50-60Hz |
Power cable | European Type/China Type/America Type/UK Type | |
Cooling way | Water cooling and protection system | |
Gross Weight | 650kgs | |
Package | Standard plywood case for export | |
Warranty | All life free tech support, one year warranty, except consumables | |
Free accessories | Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable | |
1. Blade or honeycomb table.Two kinds of of tables are available for different material
2. CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, long service time.
3. Imported lens and mirrors. High transmittance, good focusing, reflection effect.
4. Ruida Controller system, support online/offline working, English language system, adjustable cutting speed and power.
5. High accuracy stepper motors and drivers. Belt transmission.
6. Tiwan Hiwin Linear square guide rails, higher precision.

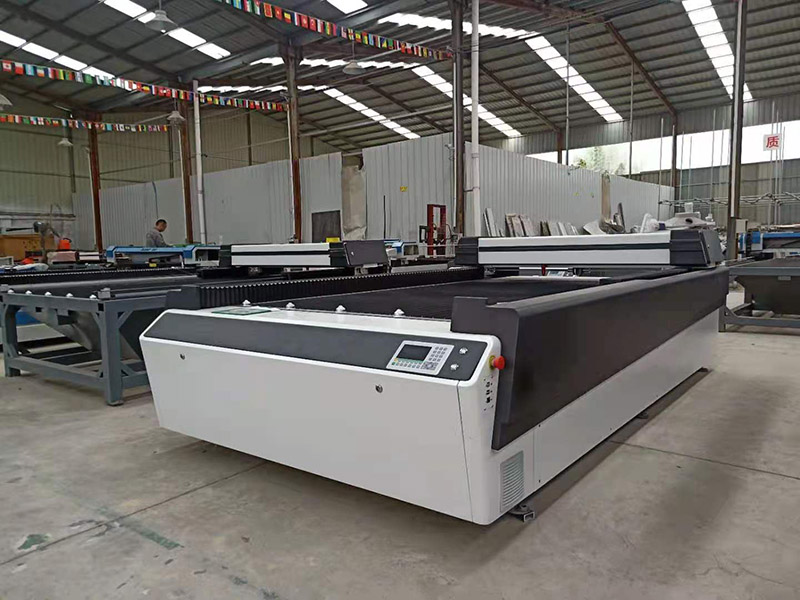

7. Open style, the front and back of the machine is open which is possible for longer material, breakthrough the limit of the workpiece length.
8. Rotate cutting available
