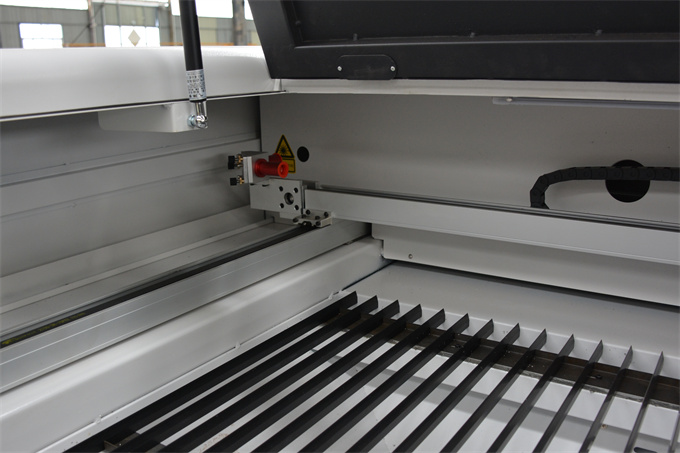

1. Red dot
The laser is invisible. Red dot shows the position of the laser on the material. It's more convenient for location.

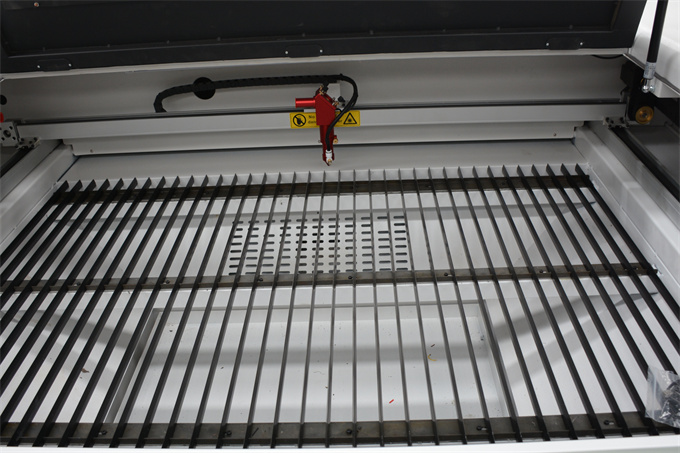

2. Honeycomb or blade table optional
Aluminum blade table is for processing acrylic, wood and other hard materials;
Honeycomb table is for processing cloth, leather and other soft materials.
3. Up/down Z-axis
You can adjust the table height by operating the Z-axis to process thick materials. Z-axis is also a must when you need to use auto focusing and rotary.
4. Auto focusing
Auto focusing automatically adjust the focusing distance.
5.Rotary device
chuck type rotary auxiliary device
it's can be used to engrave cylindrical products, such as bamboo, cups, etc.
wheel rotary type auxiliary device
it's can be assists fragile and irregular products to engrave, such as wine bottle,etc

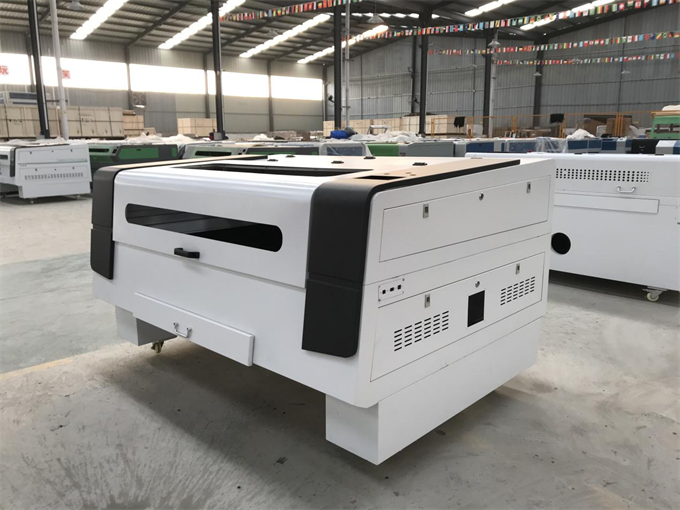

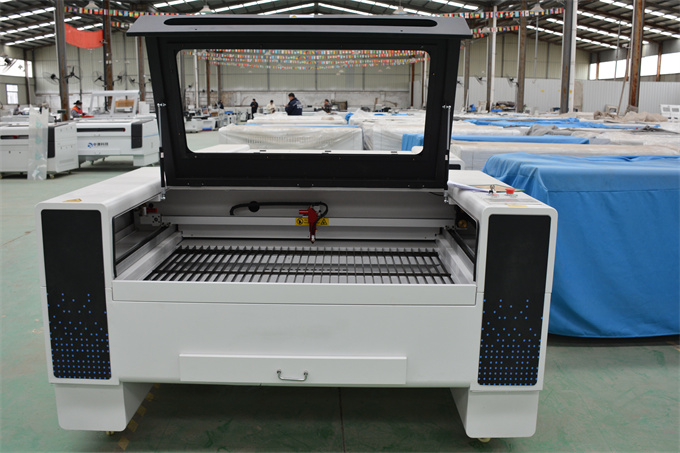

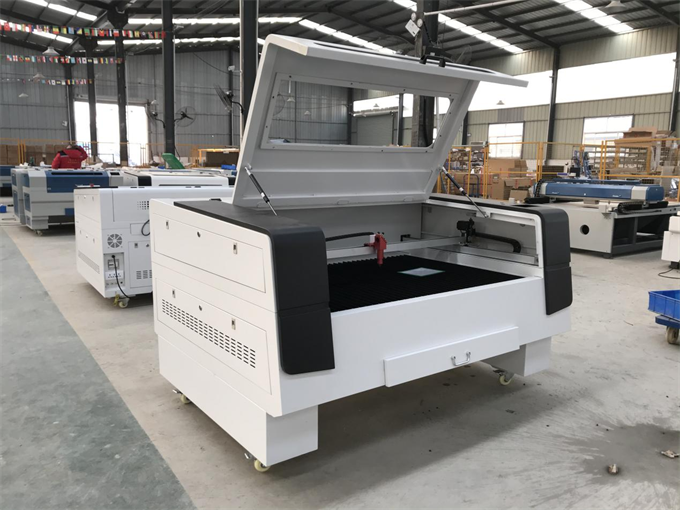

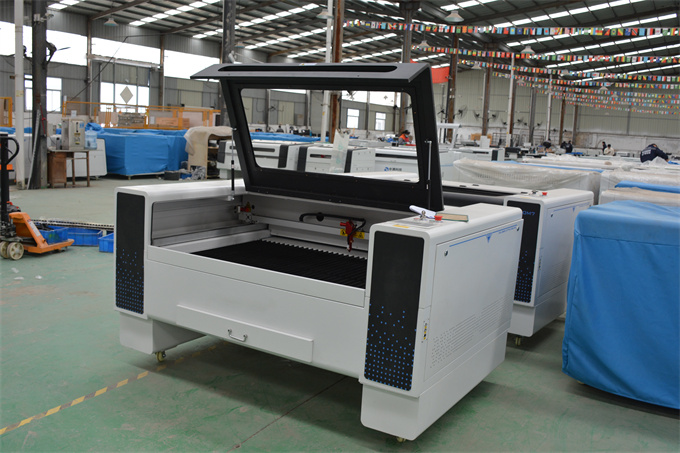

1390 laser engraving cutting machine | ||
Main configuration | Laser power | EFR tube ( 60w/80w/100w) or Reci w2 tube 100w |

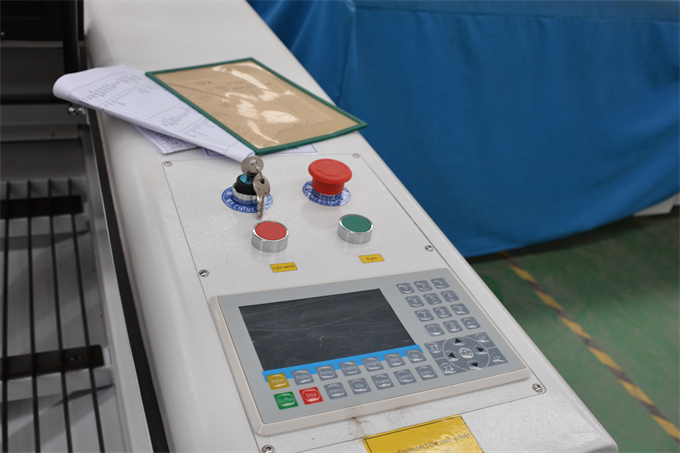

Controller | Ruida 6442s controller ( Rdworks v8 ) | |
Guide rail | Y-Axis double linear guide rail | |
Work table | Honey comb table +blade work table ( electrical up and down ,lifting distance 180mm ) | |
Main performance parameters | Engraving speed | 0-700mm/s |
Cutting speed | 0-100mm/s | |
Support Fils | BMP,HPGL,PLT,DST and AI etc. | |
Resolution | ±0.05mm/1000DPI | |
Minimum Letter | English 1×1mm (Chinese Characters 2*2mm) | |
Position system | Red dot position | |
Other parameters | Power Voltage | AC 110 or 220V±10%,50-60Hz |
Power cable | European Type/China Type/America Type/UK Type | |
Cooling way | Water cooling and protection system | |
Gross Weight | 650kgs | |
Package | Standard plywood case for export | |
Warranty | All life free tech support, one year warranty, except consumables | |
Free accessories | Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable | |
Applicable Industries:
