MDF wood acrylic laser cutter 100w 130w 150w CO2 laser cutting machine 6090
For non metal materials ,any size can be made
Product description

1) Red dot positioning Synchronize with the laser, which make the operation more convenient.
2) Ensure the accuracy higher than similar models on the market.

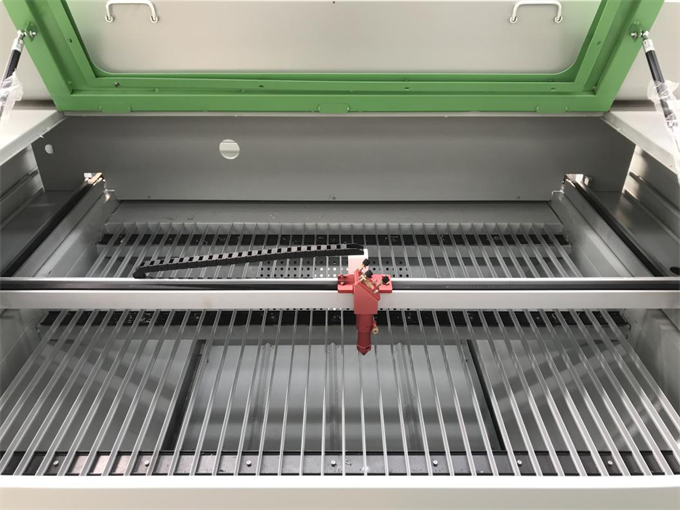

3) Knives and cellular dual cutting platform can meet the cut requirement of a variety of products.
4) DSP control system and Ruida board can ensure the engraving and cutting task completed quickly at one time.
5) Make the processing of various thickness material more convenient.
6) Wide range of applications: Advertising industry, Office industry, Packing industry, Gift industry, Decoration industry,
Printing Industry.


Technical Parameters

6090  laser engraving cutting machine



Main configuration

Laser power

EFR tube ( 60w/80w/100w) or Reci w2 tube 100w

Controller

Ruida 6442s controller ( Rdworks v8 )

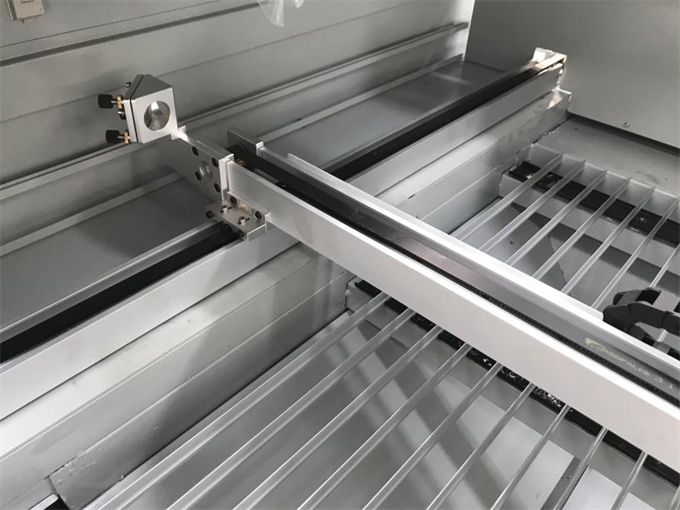

Guide rail

Y-Axis double linear guide rail

Work table

Honey comb table +blade work table ( electrical up and    down ,lifting distance 180mm )





Main performance parameters

Engraving speed

0-700mm/s

Cutting speed

0-100mm/s

Support Fils

BMP,HPGL,PLT,DST and AI etc.

Resolution

±0.05mm/1000DPI

Minimum Letter

English 1×1mm (Chinese Characters 2*2mm)

Position system

Red dot position







Other parameters

Power Voltage

AC 110 or 220V±10%,50-60Hz

Power cable

European Type/China Type/America Type/UK Type

Cooling way

Water cooling and protection system

Gross Weight

650kgs

Package

Standard plywood case for export

Warranty

All life free tech support, one year warranty, except    consumables

Free accessories

Air Compressor/Water Pump/Air Pipe/Water Pipe/Software    and Dongle/ English User Manual/USB Cable/Power Cable

Product Features

✦Applicable Materials:

high quality CO2 laser cutting and engraving machine is usually used in acrylic,wood, leather, paper, plexiglax,rubber and other nonmetal materials

✦Applicable Industries:
Rubber,plastic,cloth toys,leather ,computer embroidery cutting, mould, crafts ,bamboo and wood, advertising and building decoration ,packaging and printing ,paper products.


Product details

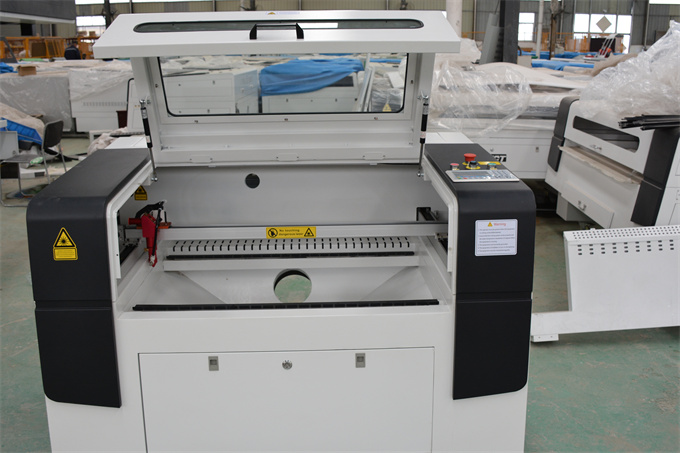

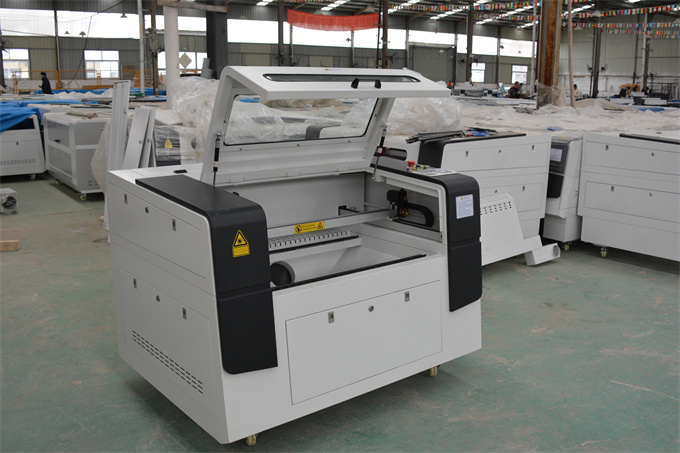

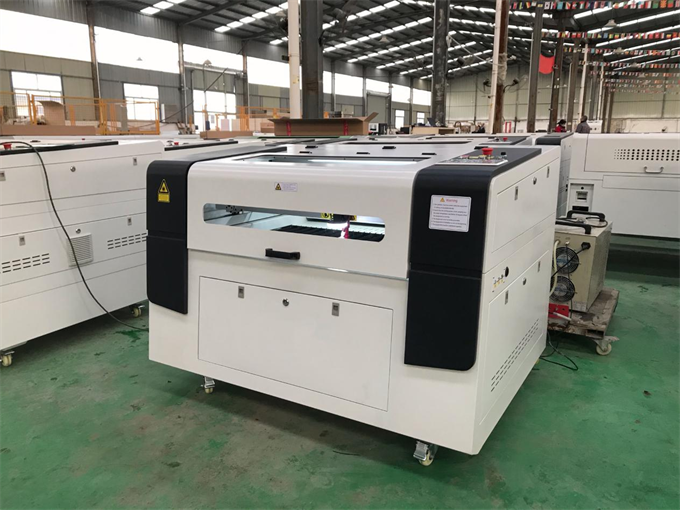

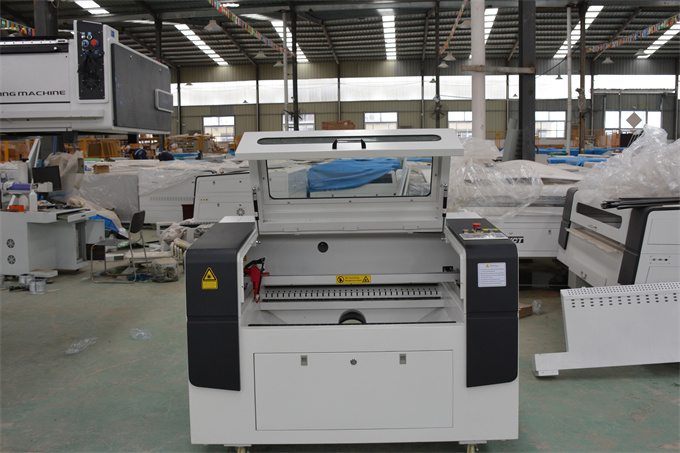

MDF wood acrylic laser cutter 100w 130w 150w CO2 laser cutting machine 6090
MDF wood acrylic laser cutter 100w 130w 150w CO2 laser cutting machine 6090
MDF wood acrylic laser cutter 100w 130w 150w CO2 laser cutting machine 6090
MDF wood acrylic laser cutter 100w 130w 150w CO2 laser cutting machine 6090
