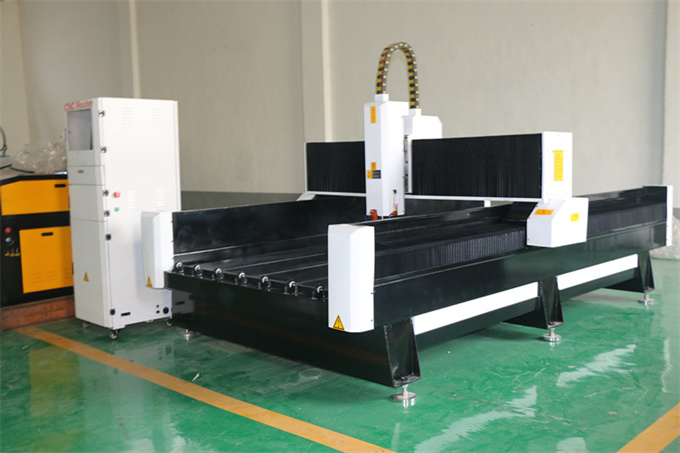

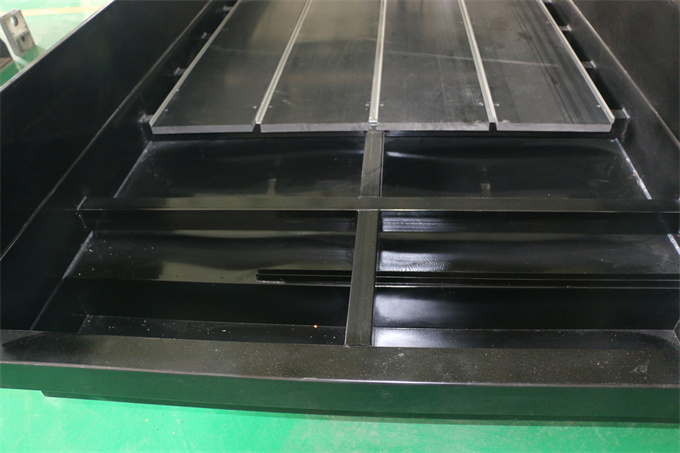

1. Steel tube lathe bed,low center of gravity,strong bearing capacity,not easy to deformation,stable and reliable operation.
2. Adopt Ncstudio control system ,through computer operation,easy and simple to operate.DSP handle offline control is optional.
3. Adopt Taiwan linear guide rail. the bearing of the lead guide rail is face to face, the long time use precision is high.
4.German double nut automatically disappear gap ball screw.
5.Break point and break knife continue engraving function, can engrave at any place as you like.
6.Strong compatibility: compatible various CAD/CAM software like Type3/artcam/castmate/proe/Corelerow/Wentai.
7.Adopt High power frequency changing water cooled spindle,providing excellent cooling effect when carving flinty materials,effectively protect spindle when continuous working for a long time
8.Axis Y with two spindles,guarantee the cutting strength and engraving precision.
Effective working area | 1300(X)mm*2500(Y)mm*350(Z)mm |
Materials | More thickness T type steel pipe welded machine holder bed, cast iron gantry |

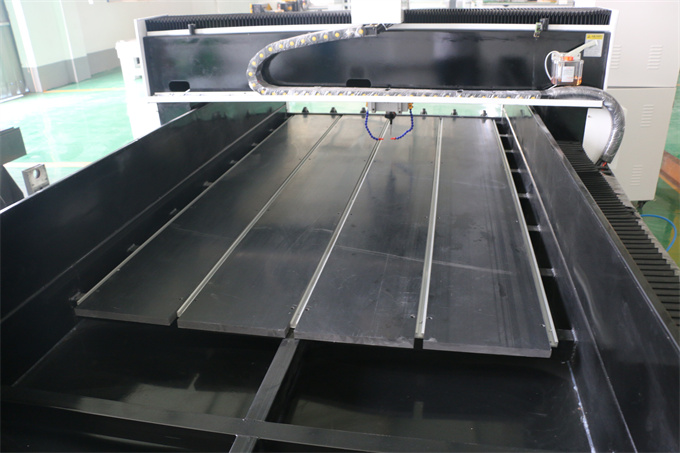

Working table | I- shaped steel |
Cooling system | Stainless steel water cooling |

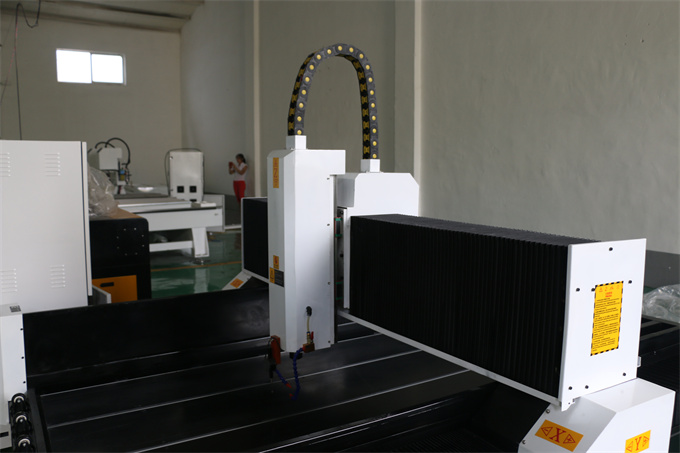

Moving type | Gantry moving |
Guide rail | Linear square guide rail 25 ( Hiwin, Taiwan) |
Transmission | Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis |
Driving mode | Panasonic servo motor |
Spindle motor | 5.5kw water cooling |
Spindle speed | 0-24000rpm |
Inverter | Fuling |
Voltage | AC 380V± 10%, 50/60Hz, three phases |
Traveling speed | >28000mm/min |
Engraving speed | >15000mm/min |
Machine accuracy | 0.03mm |
Control system | Ncstudio |
Suitable software | Artcam, Type3, Ucancam V9,etc |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
Running environment temperature | 0-45 ºC |
Relative humidity | 30%-75% |
Lubrication system | Semi-auto |

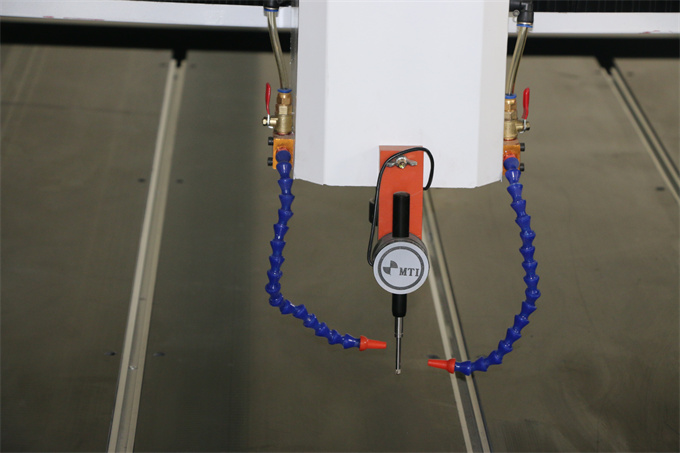

Tool calibration | Auto |
Certificate | CE |
Suitable for cabinets artificial stone, quartz stone countertops and sink, tea tray caving, European style edging, and other heterosexual stone, ceramics, glass and ceramic stone drilling sanding, edge down, carving. 3D and 3D application including kitchen tops, shower plates, tombstones, bas-reliefs, grooving and lettering.
