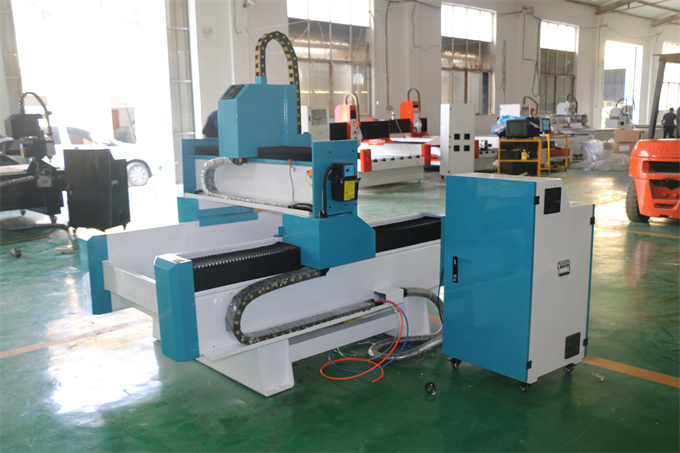

1. The cast iron frame 12MM is subjected to vibration aging treatment to ensure that the machine is not easily deformed.
2. The imported ball screw drive is Z axis, Helical gear rack with XY ,with good stability, high precision and long service life.
3. Linear circular guide, optional: Taiwan HIWIN linear square guide, diameter 20mm, longer life and more durable
4. Stainless steel sink cooling system for cooling tools and materials required for metal and stone/glass processing.

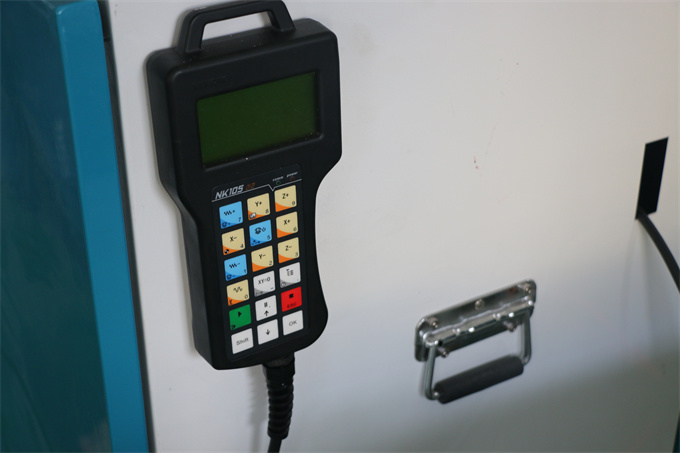

5.DSP NK105 Control system

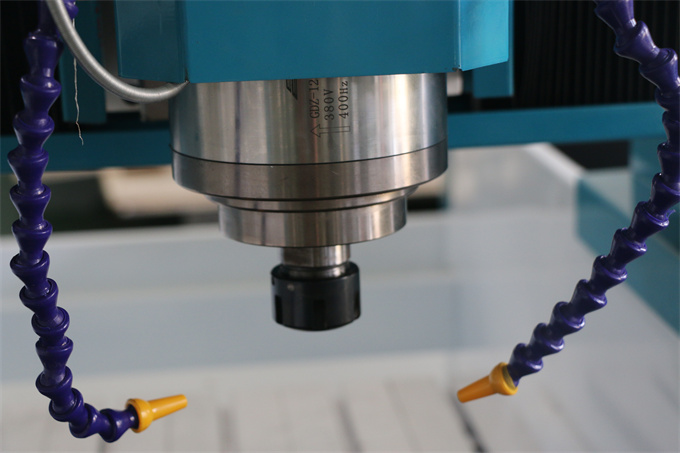

6. 5.5KW Water cooling spindle
7. Can realize multi-layer 3D processing, fast speed, smooth three-dimensional processing, engraving and cutting.
8. Emergency stop button to ensure safe operation.
9. Good software compatibility, suitable for CAD/CAM design software such as Type3, Artcam, Castmate, Ucanam, et
Effective working area | 600(X)mm*900(Y)mm*350(Z)mm |
Materials | More thickness T type steel pipe welded machine holder bed, cast iron gantry |

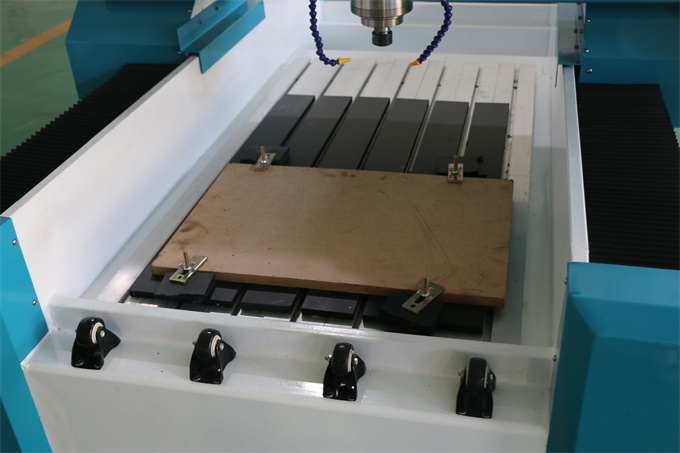

Working table | I- shaped steel |
Cooling system | Stainless steel water cooling |
Moving type | Gantry moving |
Guide rail | Linear square guide rail 25 ( Hiwin, Taiwan) |
Transmission | Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis |

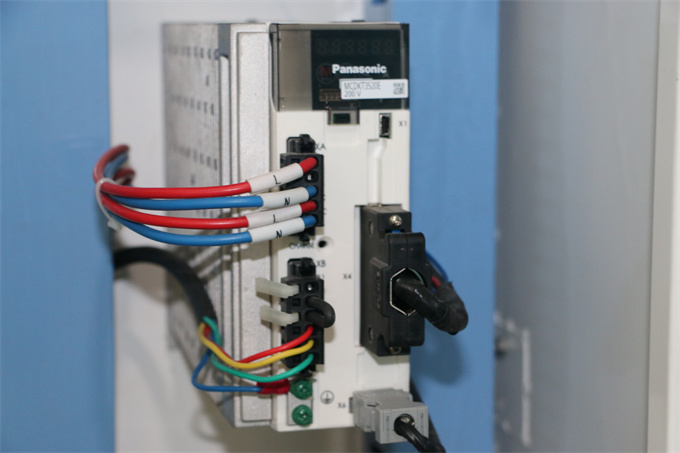

Driving mode | Panasonic servo motor |
Spindle motor | 5.5kw water cooling, |
Spindle speed | 0-24000rpm |
Inverter | Fuling |
Voltage | AC 380V± 10%, 50/60Hz, three phases |
Traveling speed | >28000mm/min |
Engraving speed | >15000mm/min |
Machine accuracy | 0.03mm |
Control system | NK105 |
Suitable software | Artcam, Type3, Ucancam V9,etc |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
Running environment temperature | 0-45 ºC |
Relative humidity | 30%-75% |

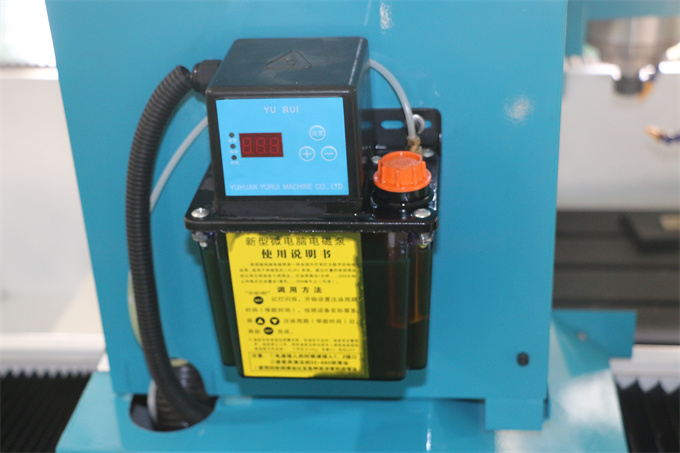

Lubrication system | Semi-auto |
Tool calibration | Auto |
Certificate | CE |
Applicable Industries:

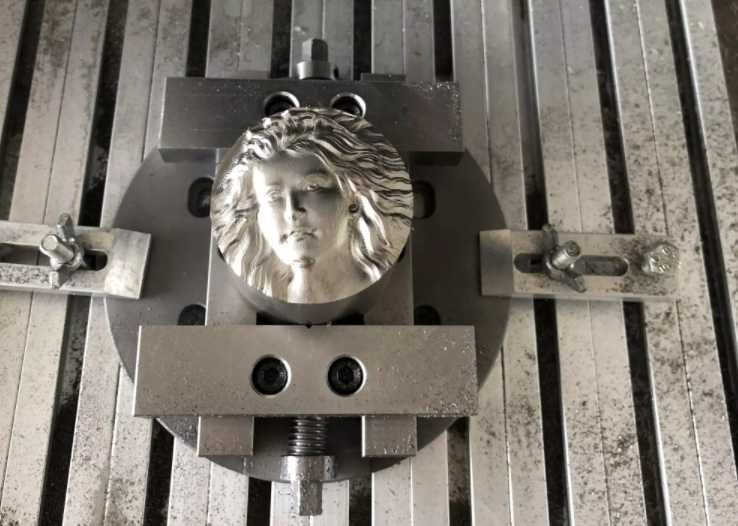

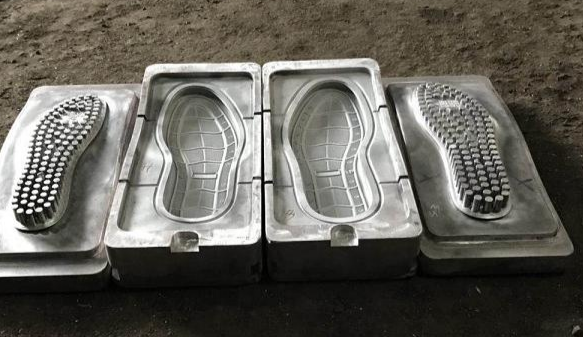

Good at in processing all kinds of small workpiece ,widely used in advertising signs, badges, logo, mould construction equipment, mould products, industrial mold, etc.
Applicable Materials:
Suitable for all kinds of metal, such as copper, aluminum, iron, stell, stainless steel, alloy, also the acrylic, wood, MDF, double color board, stone, jade, ect.
