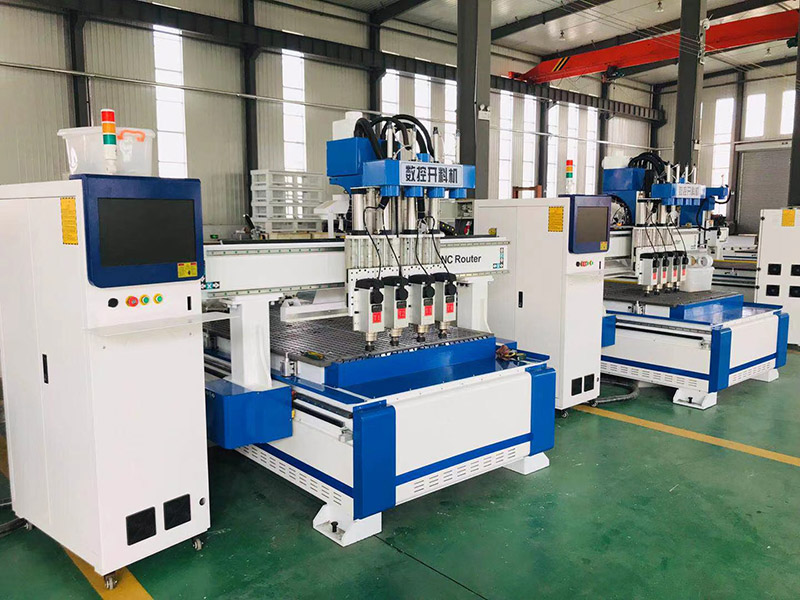

Multi-process cutting machine is a special machine that specialized in cutting and perforating panel-style custom furniture. It gets rid of the traditional cutting mode's dependence on manual labor. When cutting the material, the vertical holes are also completed . It is combined with the special design and dismantling software. , Realize intelligent production, save labor, material, and time!
Model | PT-1325P |
Working area | 1300*2500MM |
Spindle power | 6KW*6KW*4.5KW *4.5KW |
Drive system | YASKAWA servo motor |
Control system | SYNTEC controller |
Max air move speed | 80m/min |
Max working speed | 25m/min |
Reponsitioning accuracy | ±0.05mm |
Vacuum pump | 7.5KW |
Table structure | Vacuum suction |
Orbit | HWIN 25 |
Transmission type | Reducer |
Working Voltage | AC380V/3PH/50Hz |
1.SYNTEC control system: fast data processing speed, stable operation, new large-screen control system, intuitive and easy to learn.

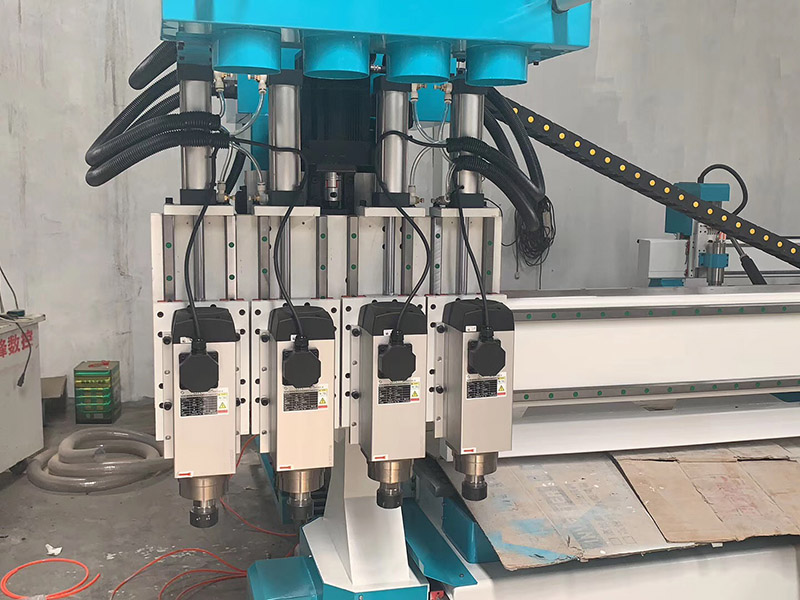

2, air-cooled 6KW*6KW*4.5KW *4.5KW spindle: automatic tool change is realized by switching the cylinder.
3, Japan Yaskawa servo motor, matching Yaskawa drive, SHAMPO reducer, fast speed, large torque, and processing. stable.
4. Double frequency conversion pre-start, realizing rapid second cut between spindle and spindle, fast tool change speed and high processing efficiency.
5. Positioning cylinders: Three Y-axis and two Xs form a right angle. All five positioning cylinders are adjusted by a dial indicator to ensure the secondary positioning accuracy during front and back machining.
Applicable industries: panel furniture, whole house customization, plastic door panels, tables, chairs, doors and windows
function: automatic slotting, automatic reaming, automatic opening, automatic pushing, automatic tool change
Parameter
