All the machine can be customized according to your own requirements.
For example the machine is designed with linear or carouse tool changer, the amount of head or spindle can be added,
also the rotary device is allowed to be installed on the machine……All in all, all the specification of machine can be customized!!!

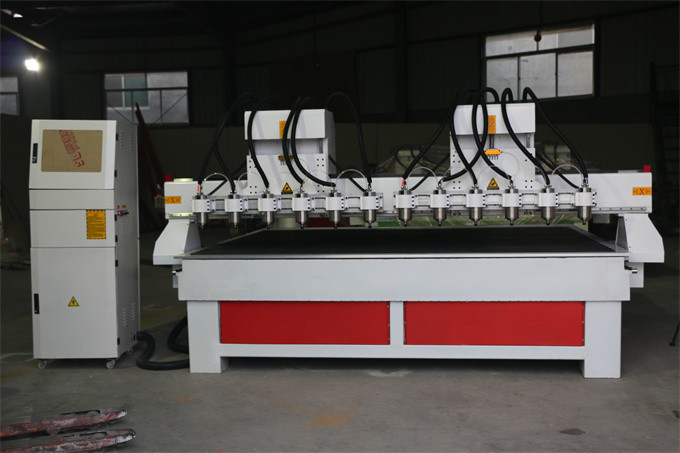

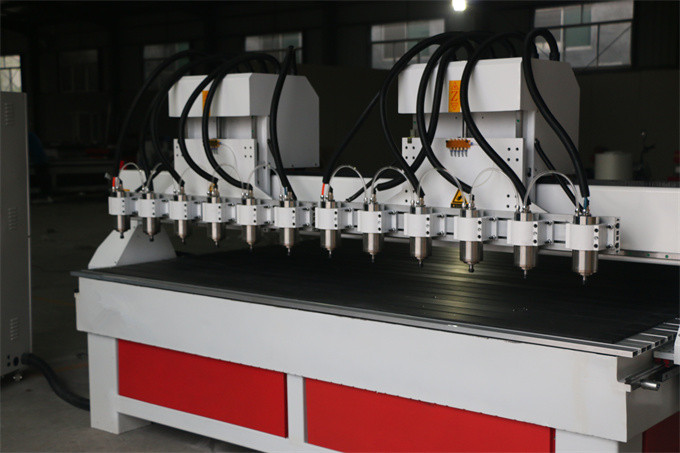

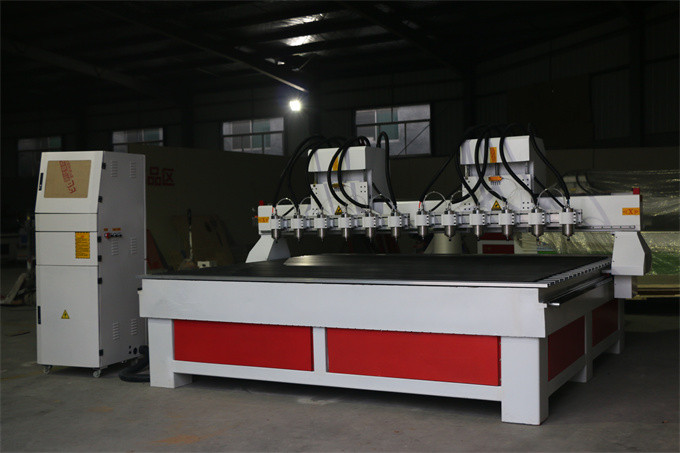

Two heads with 12 spindles
Model | PT-2613 |
Working area | 2600*1300mm |

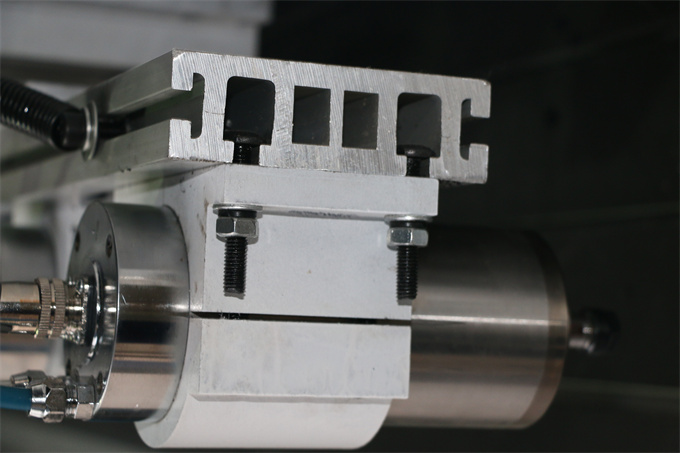

Spindle power | 1.5kw water cooling spindle *12pc |
Inverter | Fuling |
Drive system | stepper motor |
Control system | dsp |
Max air move speed | 80m/min |
Max working speed | 25m/min |
Reponsitioning accuracy | ±0.05mm |

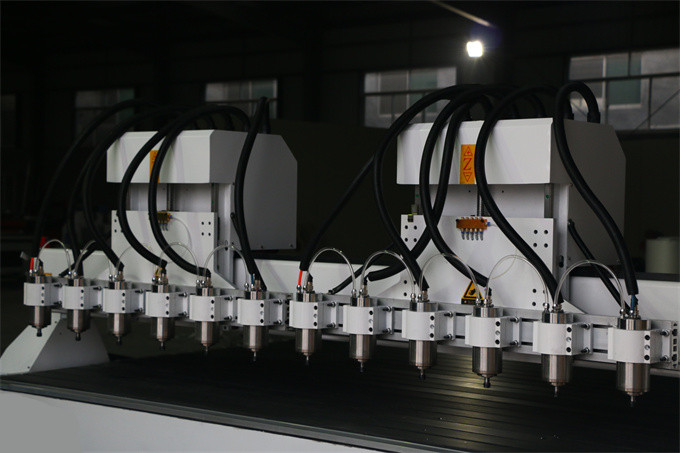

Multi heads | 12pcs spindles |
Table structure | T slot table |

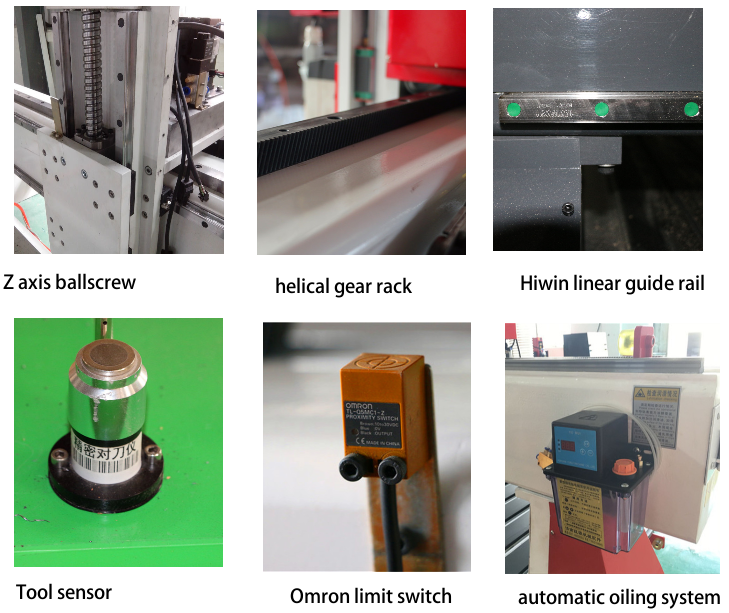

Orbit | Hiwin 20 |
Working Voltage | AC380V/3PH/50Hz |
1. Advertisement: engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials including marble, brass, steel, and other metallic material.
2. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
3. Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
4. Architectural models: engraving fine window, fencing and wall patterns, etc.
5. Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
6. Label: engraving character, number, and other pattern on label for products and on product directly.
7. Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.
