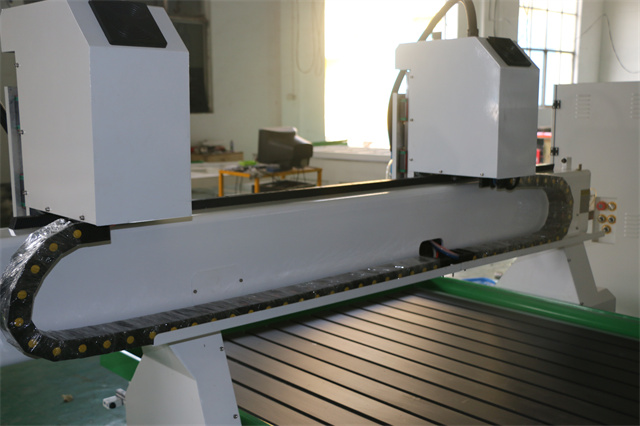

1. Steel beam column structure, strong rigidity and stability
2. manual valve, easy control, low failure rate
3.DSP A11 system and cabinet, no need of computer, simple operation
4. The internal wiring of the cabinet is neat and marked, which is convenient for troubleshooting
5. It is convenient to install the dust collector and protect the environment with the suction bracket
6. High flexible cable cold and heat resistance, strong flexibility, long service life
7. Guide rail rack, Taiwan brand, XY axle full, high precision, little wear, long life

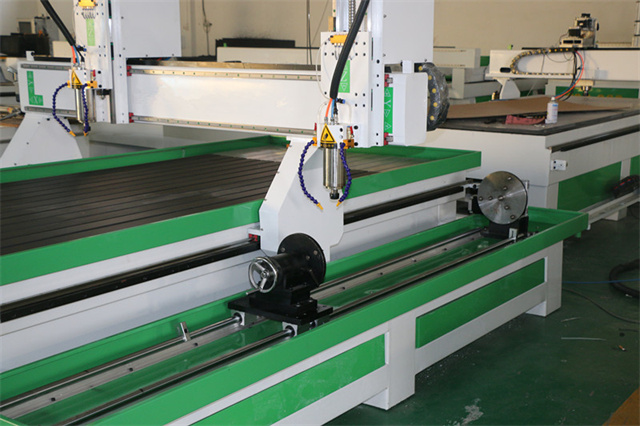

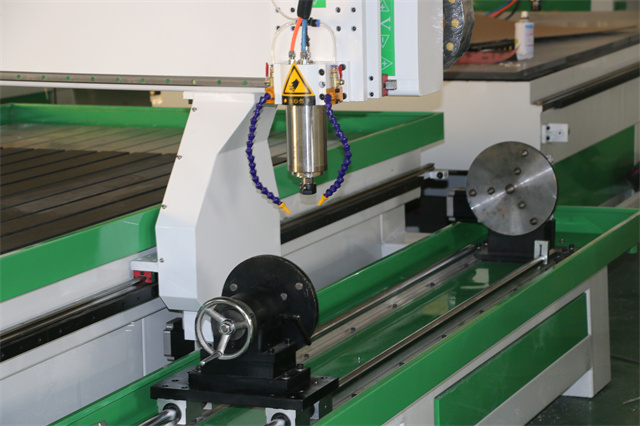

8. The length and diameter of rotary devive can be customized

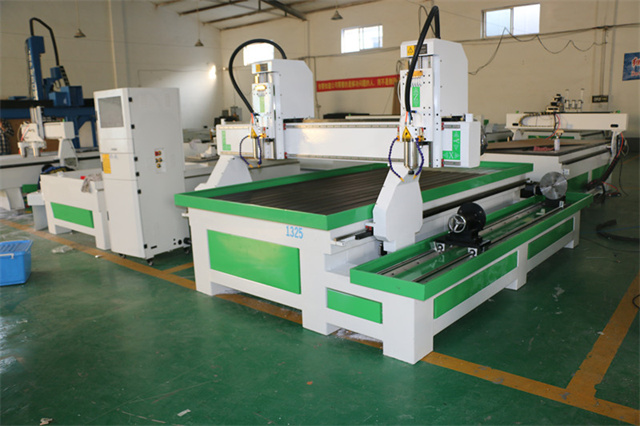

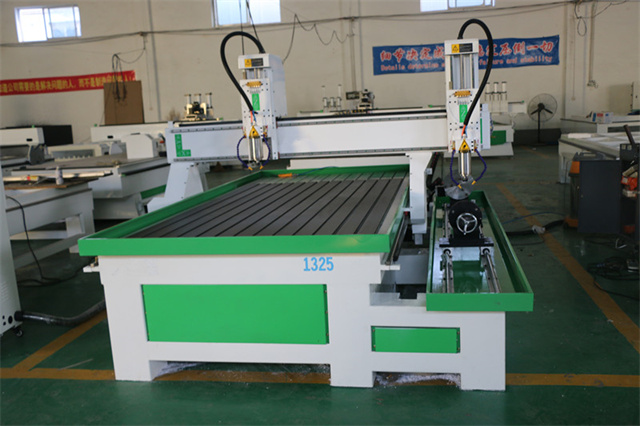

Two independent Heads
Rotary : 300*2000mm
Model | PT-1325 |
Working area | 1300*2500MM |
Spindle power | 3KW water cooling spindle*2 |
Inverter | Fuling inverter |
Drive system | Leadshine servo motor |
Control system | Ncstudio control system |
Max air move speed | 80m/min |
Max working speed | 25m/min |
Reponsitioning accuracy | ±0.05mm |
Table structure | T slot table |
Orbit | Hiwin 25 |
Working Voltage | AC380V/3PH/50Hz |
About the delivery.
Its need about 7-15 working days to produce the machine after get your deposit.
all thing is tested well,then we arrange the delivery.
About payment:
We accept T/T , you can pay 30% in advance, 70% before delivery.
The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the
testing video.
After you agree, please finish the balance.Finally.we arrange the delivery.
