Imported linear square guide rails, double-row and four-row ballscrew, large bearing capacity, stable operation, high precision and long life.
Suitable for all kinds of solid wood, synthetic boards, man-made materials, etc.;
Used in furniture, home improvement, aerospace, mold, advertising, garden engineering, shipbuilding and other industries;
Functions: embossing, lettering, hollowing, cutting, standing carving, round carving, etc.

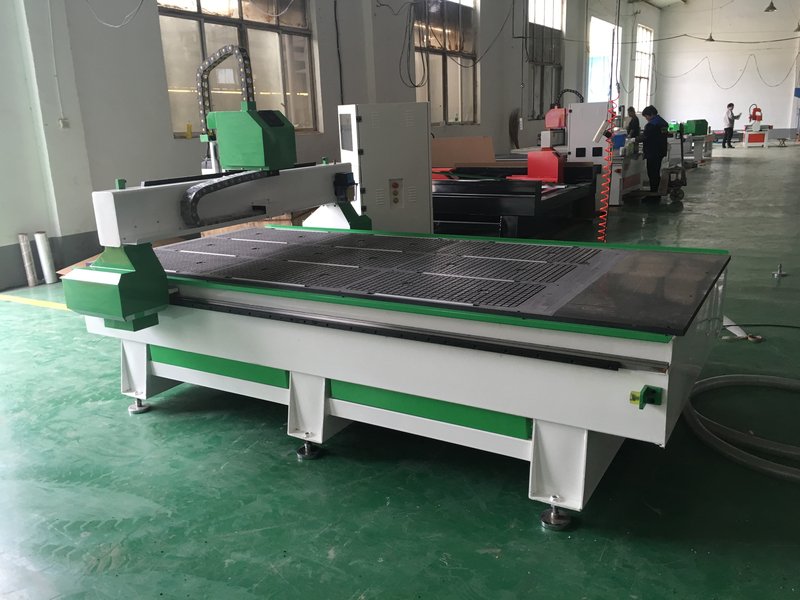

Effective working area | 1300(X)mm*2500(Y)mm*200(Z)mm |
Machine Structure | More thickness steel pipe welded machine holder bed, cast iron gantry |
Working table | Vacuum adsorption table |
Moving type | Gantry moving |

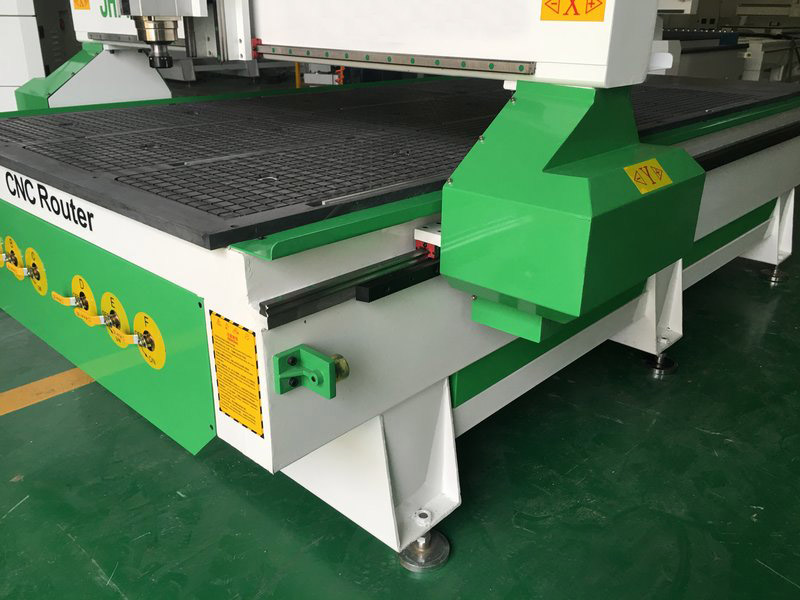

Guide rail | Linear square guide rail ( Hiwin, Taiwan) |
Transmission | Helical rack &pinion for X Y -axis, ball screw for Z-axis |

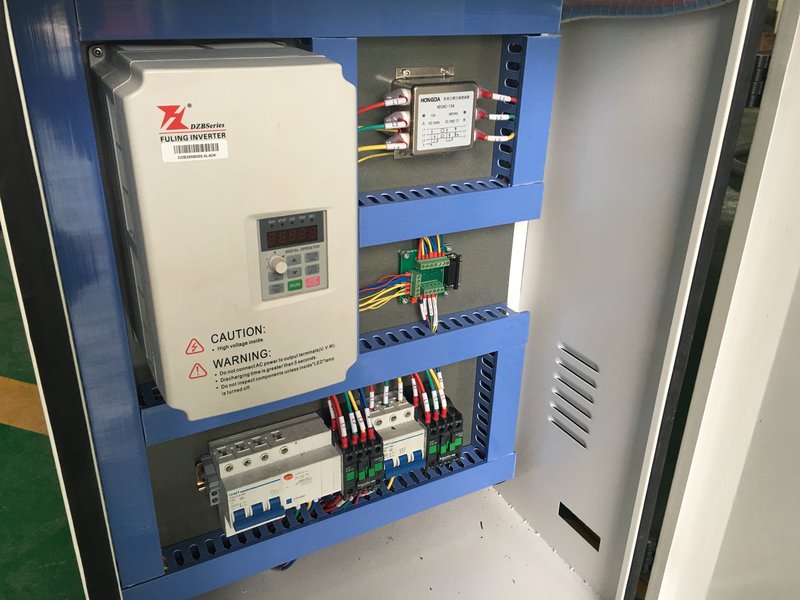

Inverter | Fuling |
Voltage | AC 220V± 10%, 50/60Hz, single phase or AC 380V±10%, 50/60Hz, three phases |
Driving mode | Yaskawa servo motor from Japan |
Spindle motor | 6kw HSD air cooling spindle from Italy |
Spindle speed | 0-12000rpm |
Traveling speed | >25000mm/min |
Engraving speed | >12000mm/min |
Machine accuracy | 0.03mm |
Controller | Original NC Studio Controller |
Suitable software | Artcam, Type3, Ucancam V9,etc |
Running environment temperature | 0-45 ºC |
Relative humidity | 30%-75% |
Lubrication system | Auto |
Tool calibration | Auto |
Certificate | CE |
1)Taiwan Hiwin square orbits, gear-wheel transmission
2)Japan servo motor Or China Servo motor
3)Original NC-studio control system
4)6kw HSD air cooling spindle
5)The table equipped with 6 divided vacuum zones
6)7.5KW Vacuum pump
