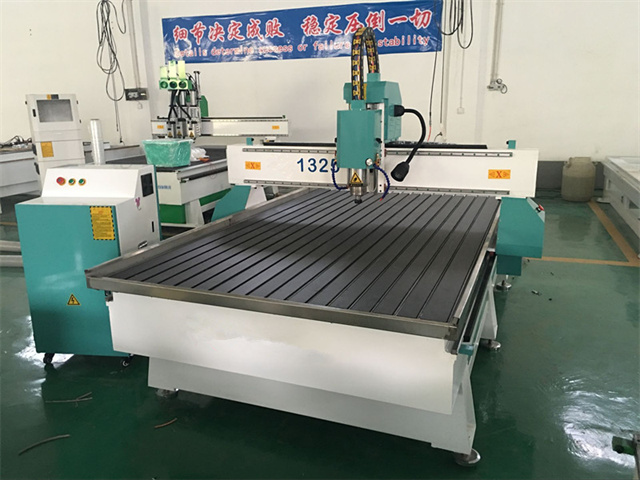

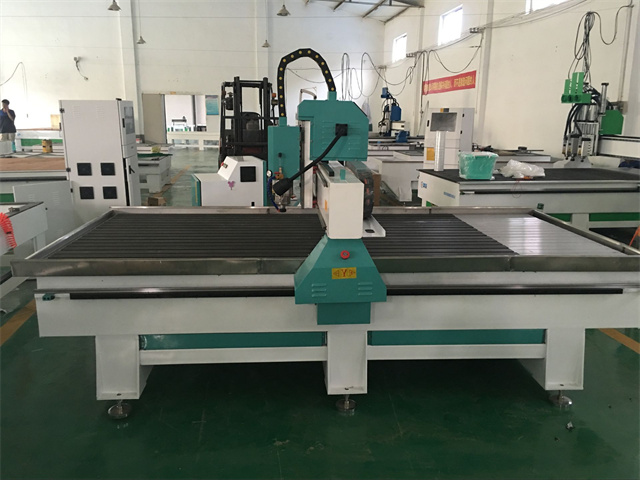

4*8ft 3d 4d cnc router wood cutting machine for wood acrylic aluminum metal
T slot table with water tank ( can engrave cut non metal and metal materials )
Product description


1.  Adopt T-style body structure and crossbeam transmission design, main body with Industrial welding technology, quench dealing method and then with high precision milling maching to build. All the accessories are all made one time by 5 axis machining center to ensure machine's rigidity and accuracy.

2.  X, Y-axis with imported high-precision rack, Z-axis with imported high-precision grinding grade ball screw.

3.  Spindle with high precision, high speed, constant torque, low beating, strong stability, long-life time characteristics.

4.  Supporting G code and PLT code format generated by Type 3, MASTERCAM, CASMATE, Artcam, AUTOCAD, UG, CorelDraw and other CAD / CAM software.

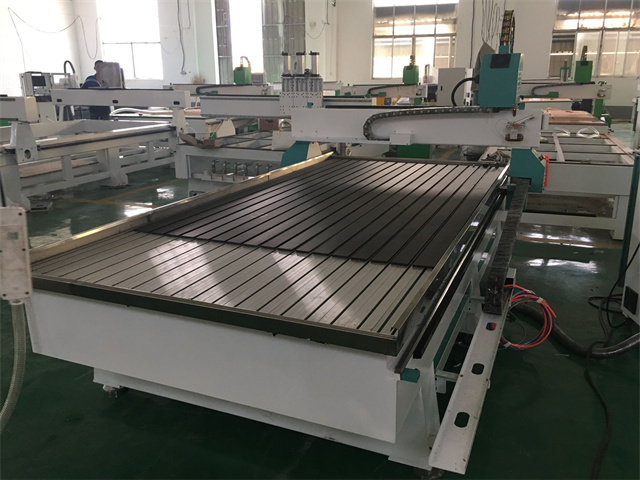

5.  T slot table with water tank ( can work on all materials )

6.  Standard automatic knife calibration.




Technical Parameters


Number

Description

Parameter

1

X,Y,Z Working Area

1300x2500x200mm

2

X,Y,Z Traveling Positioning Accuracy

±0.05mm

3

X,Y,Z Re-positioning Accuracy

±0.05mm

4

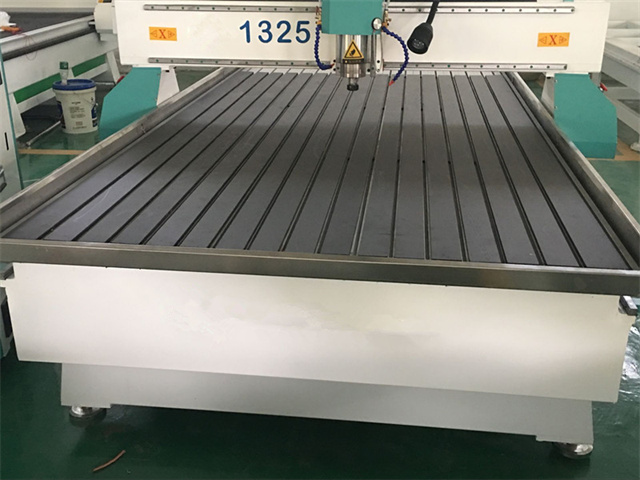

Table Surface

 T slot with water tank

5

Frame

Welded body Structure(6mm), cast iron for gantry (8mm)

6

X, Y Structure

HIWIN Square orbits and helical rack

7

Z Structure

HIWIN square orbit and TBI Ball Screw

8

Max. Rapid Travel Rate

25000mm/min

9

Max. Working Speed

20000mm/min

10

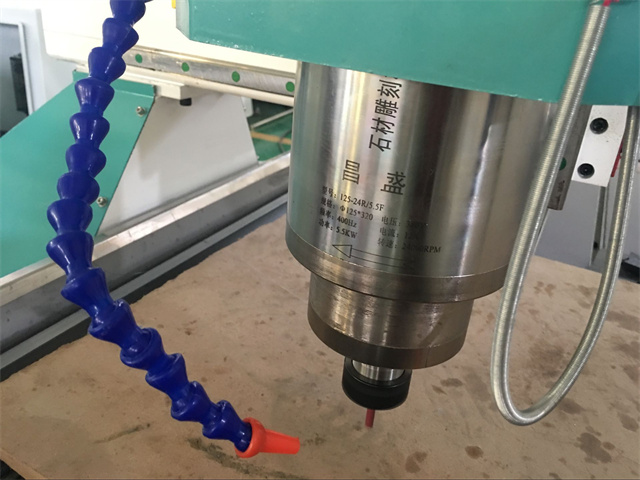

Spindle Power

5.5kw water cooling spindle

11

Spindle Speed

24000RPM

12

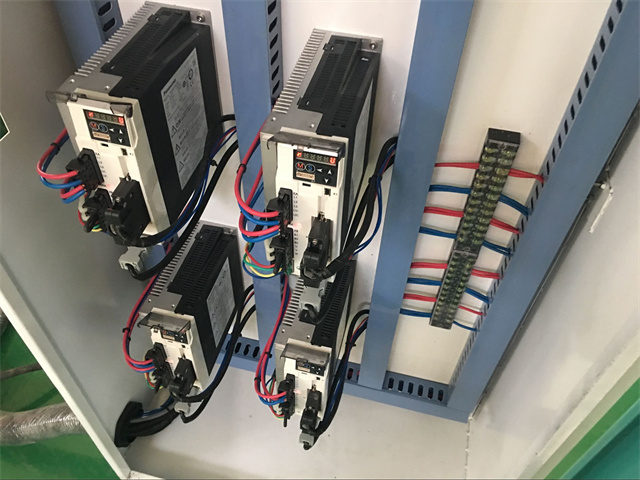

Drive Motor

Servo motor

13

Working Voltage

AC380V/50Hz,3 Phase

14

Command Language

G Code

15

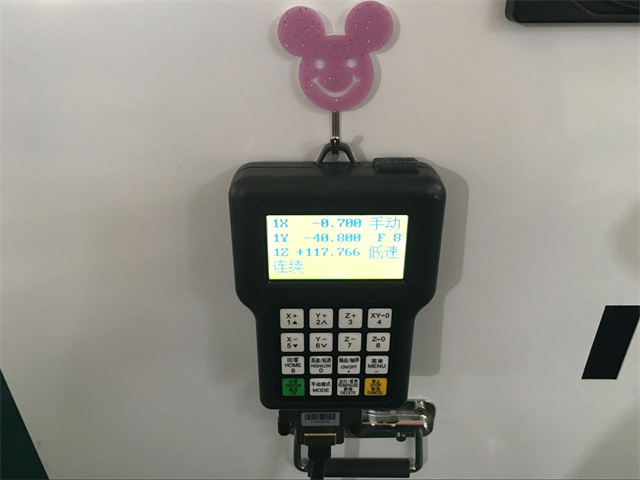

Operating System

DSP/Ncstusio/Mach3

16

Computer Interface

USB

17

Collet

ER32

18

X,Y,Z Resolution

<0.05mm

19

Software Compatibility

Type3/UcancameV10/Artcam/Artengraver (optional)

20

Running Environment  Temperature

0 - 45 Centigrade

21

Relative Humidity

30% - 75%

22

Packing Size

3200 x 2150 x 1650mm

23

N.W.

1200KG

24

G.W.

1350KG

25

Optional Parts

Spindle power

Aluminum and PVC table

Rotary System

Servo motor

Delta/ Panasonic Servo motors




Product Features

Advertising industry : used to engrave all kinds of board signs, plexiglass, three-dimensional billboards, two-color figure statues, relief medals, organic board reliefs, three-dimensional door heads and so on.
Model industry: making sand table models, house models, mold making operation: printing bronzing mold, injection mold, stamping mold,etc.
Wood industry: used for embossed pattern design and production.
Seal industry:seal engraving of various types of materials.
Automotive industry:tire molds, lamp molds and decorative mold processing.

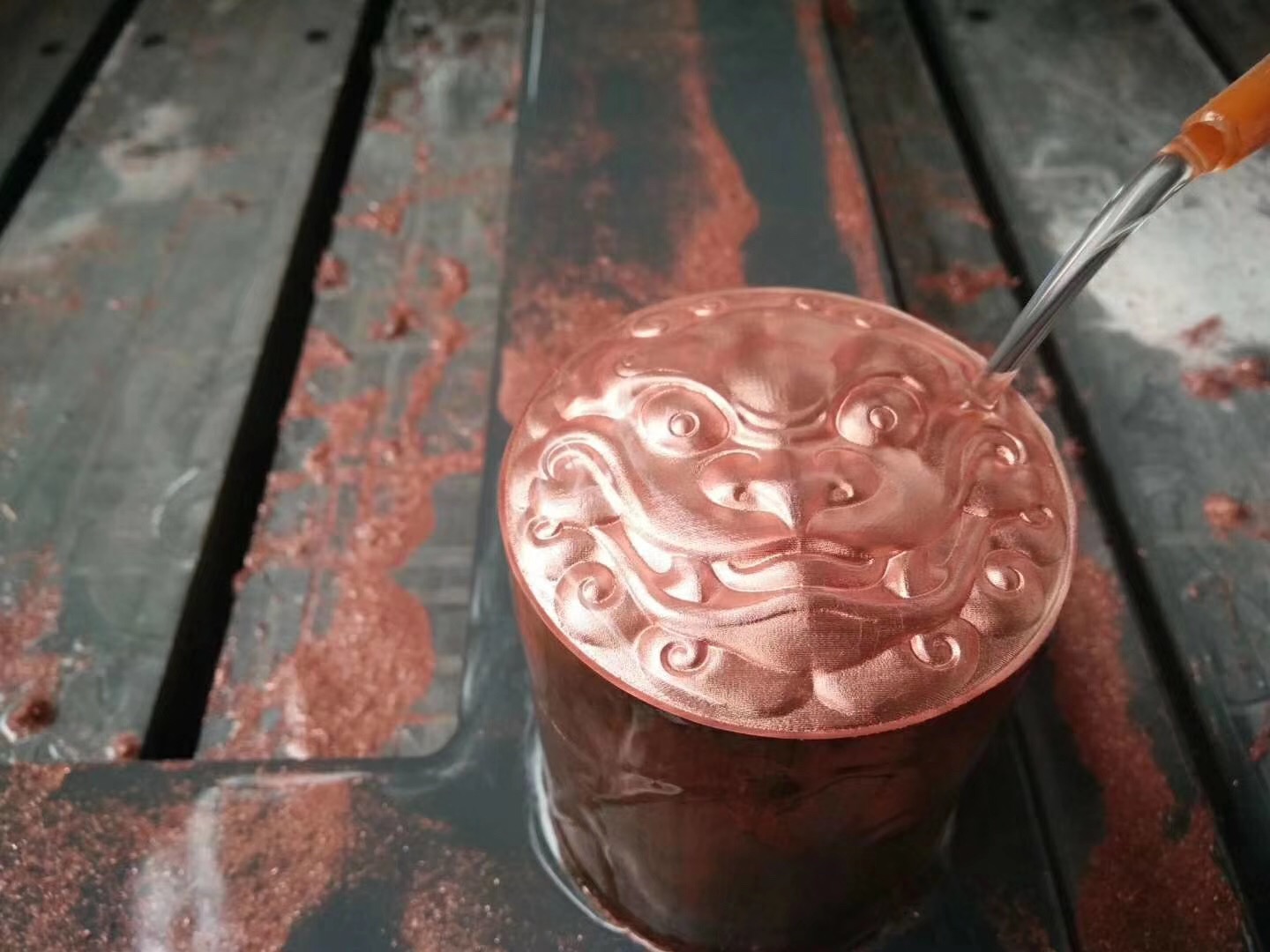

Metal :  aluminium , brass

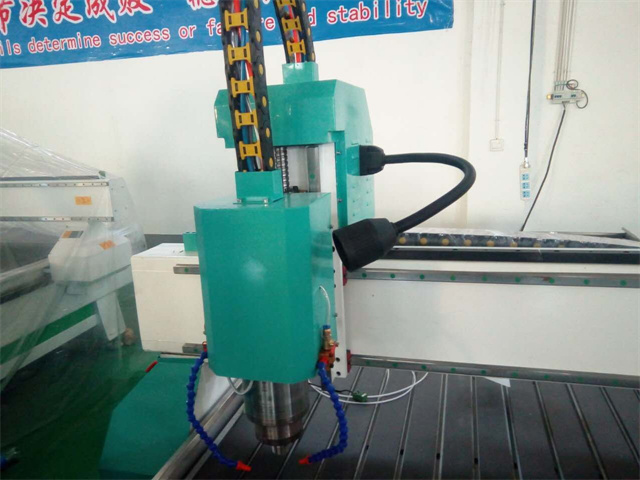

Product details
4*8ft 3d 4d cnc router wood cutting machine for wood acrylic aluminum metal
4*8ft 3d 4d cnc router wood cutting machine for wood acrylic aluminum metal
4*8ft 3d 4d cnc router wood cutting machine for wood acrylic aluminum metal
4*8ft 3d 4d cnc router wood cutting machine for wood acrylic aluminum metal
