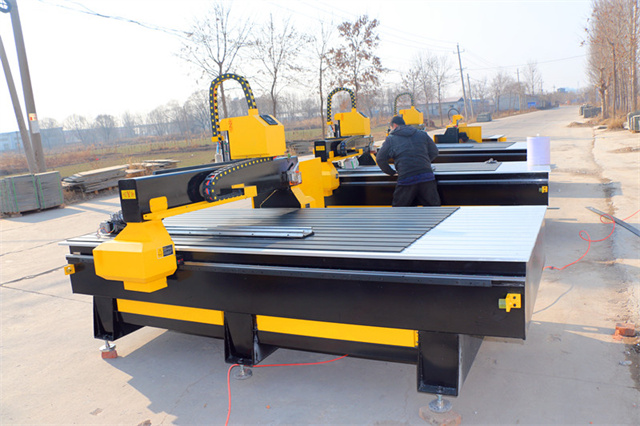

Our CNC Router is characterized by its fast processing speed and stable working condition.
It can produce a wide range of products like wood/MDF/acrylic and so on.
As one economical model, it effectively replace most of the manual operations with reasnable price.

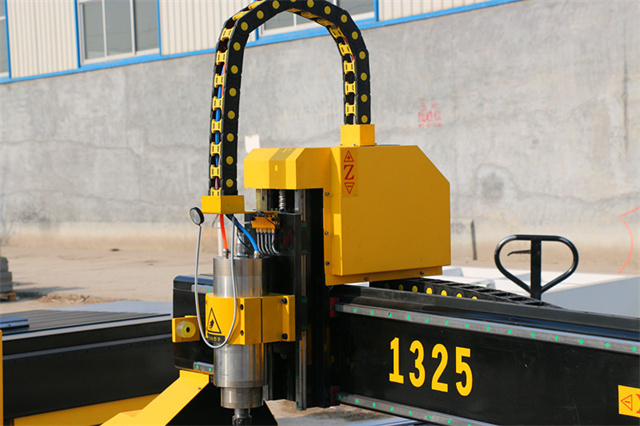

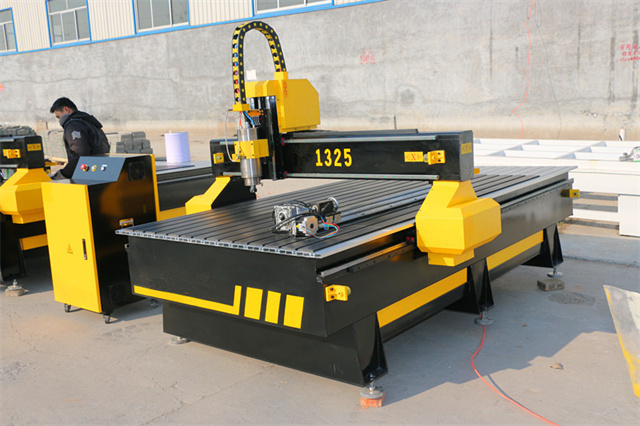

Our standard models are 1325, 1530, 2030, 2040, other special requirements can be customized.
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x200mm |
2 | X,Y,Z Traveling Positioning Accuracy | ±0.05mm |
3 | X,Y,Z Re-positioning Accuracy | ±0.05mm |
4 | Table Surface | T slot |
5 | Frame | Welded body Structure(6mm), cast iron for gantry (8mm) |
6 | X, Y Structure | HIWIN Square orbits and helical rack |
7 | Z Structure | HIWIN square orbit and TBI Ball Screw |
8 | Max. Rapid Travel Rate | 25000mm/min |
9 | Max. Working Speed | 20000mm/min |
10 | Spindle Power | 5.5kw Water Cooling Spindle |
11 | Spindle Speed | 24000RPM |
12 | Drive Motor | Stepper motor |
13 | Working Voltage | AC380V/50Hz,3 Phase |
14 | Command Language | G Code |

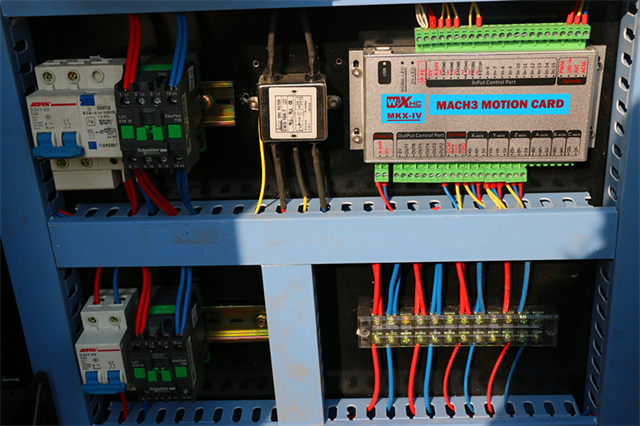

15 | Operating System | DSP/Ncstusio/Mach3 |
16 | Rotary | 200*2000mm |
17 | Collet | ER32 |
18 | X,Y,Z Resolution | <0.05mm |
19 | Software Compatibility | Type3/UcancameV10/Artcam/Artengraver (optional) |
20 | Running Environment Temperature | 0 - 45 Centigrade |
21 | Relative Humidity | 30% - 75% |
22 | Packing Size | 3200 x 2150 x 1650mm |
23 | N.W. | 1200KG |
24 | G.W. | 1350KG |
25 | Optional Parts | Spindle power |
Aluminum and PVC table | ||

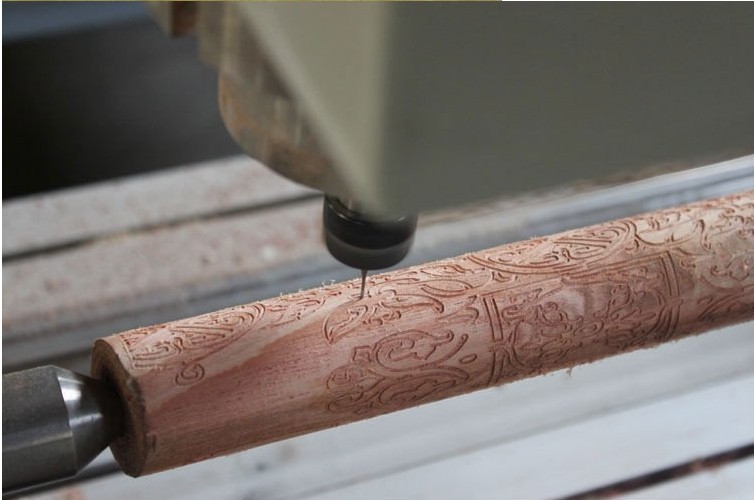

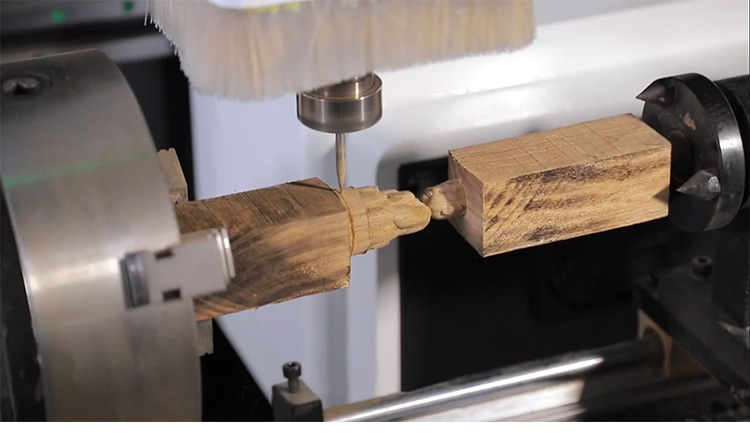

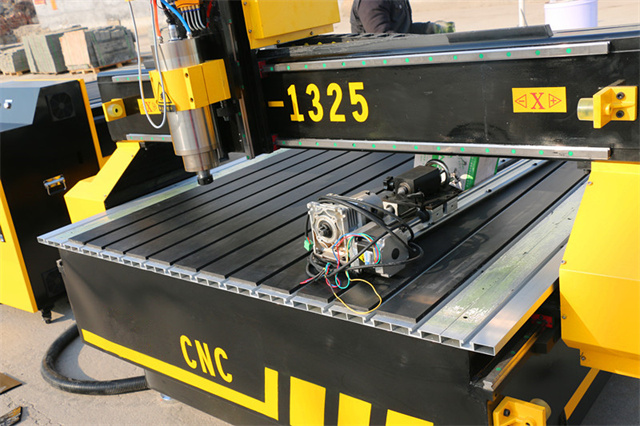

Rotary System | ||
Servo motor | ||
Delta/ Panasonic Servo motors |
1) Advertising industry. Engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.
