1.Heavy duty machine structure
Guarantees solidity and absence of vibration, so machine’s processing precision will be highly improved.

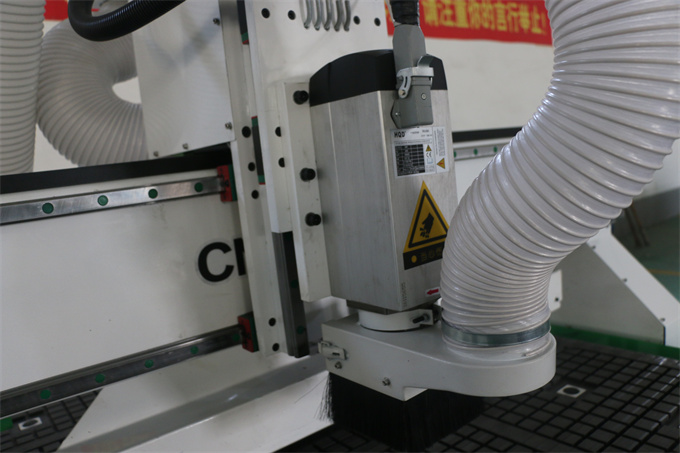

2. 6kw HQD air cooling spindle ,The programmable speed can up to 18000RPM.
3. Hybrid servo motor 758 , speed and torque is realized, improving precision.
good high speed performance.
Heat and noise significantly reduced.
Motor on Z axis has brake system to prevent working table damaged because of spindle falling suddenly.

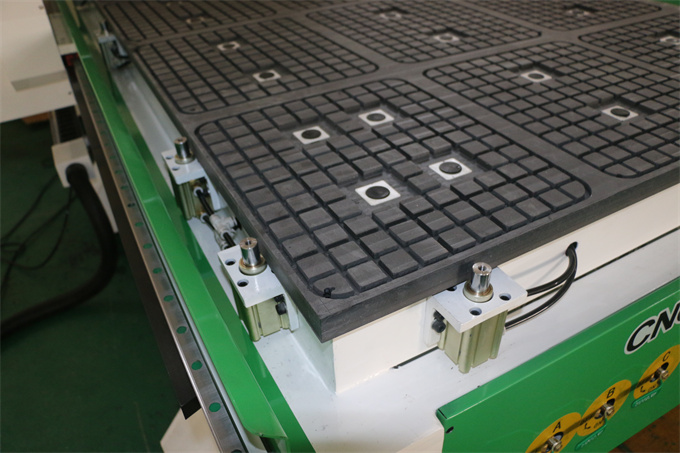

4.Vacuum adsorption table
5.Double bags dust collector

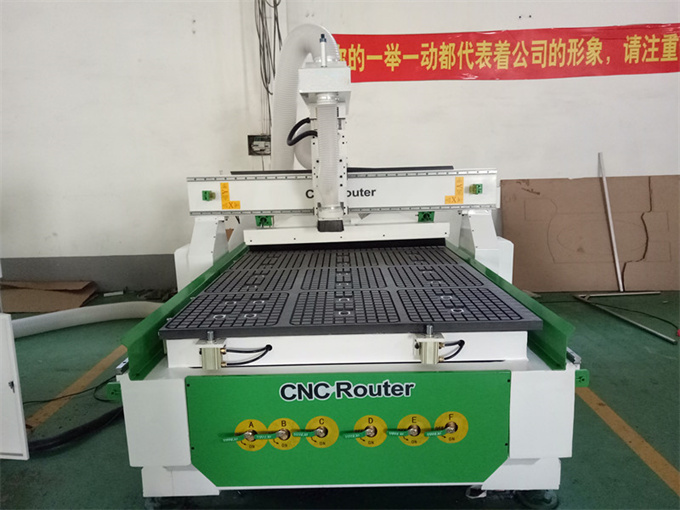

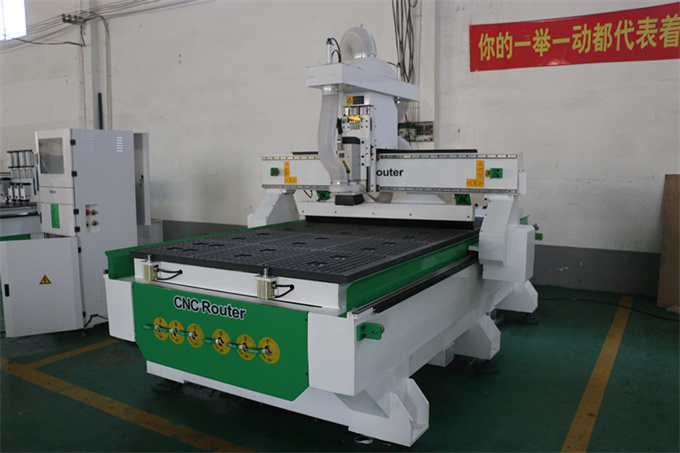

Model | PT-1325 |
Working area | 1300*2500mm |
Spindle power | 6kw air cooling spindle |
Inverter | fuling inverter |
Drive system | hybrid servo motor |
Control system | Ncstudio controller |
Max air move speed | 80m/min |
Max working speed | 25m/min |
Reponsitioning accuracy | ±0.05mm |
Vacuum pump | 7.5KW |
Table structure | Vacuum suction |
Transmission type | Reducer |
Tool Magazine capacity | 12/16/18 |
Dia. of suction port | φ150mm |
Working Voltage | AC380V/3PH/50Hz |
Total power | 28KW(Including vacuum cleaner, vacuum pump) |
1.Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chairs, doors and windows.
2. The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
