-CNC Router ,working area 1300x2500mm is our very popular machine

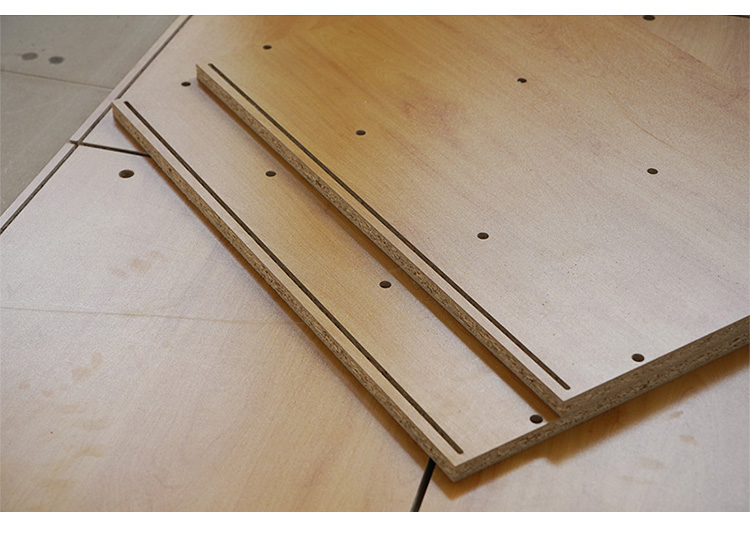

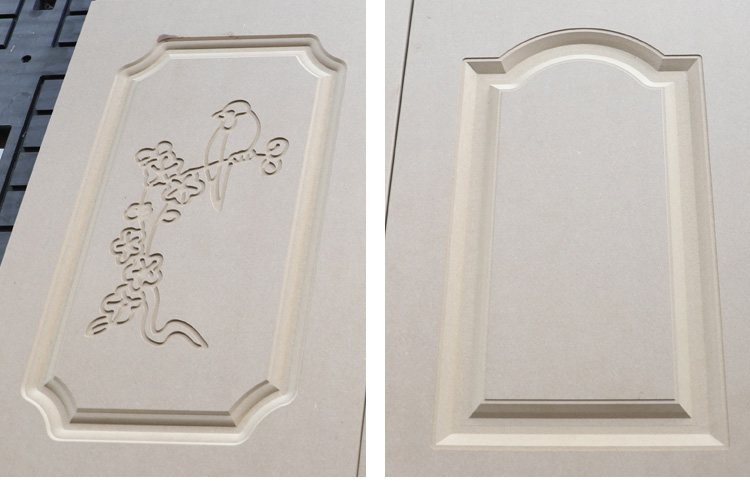

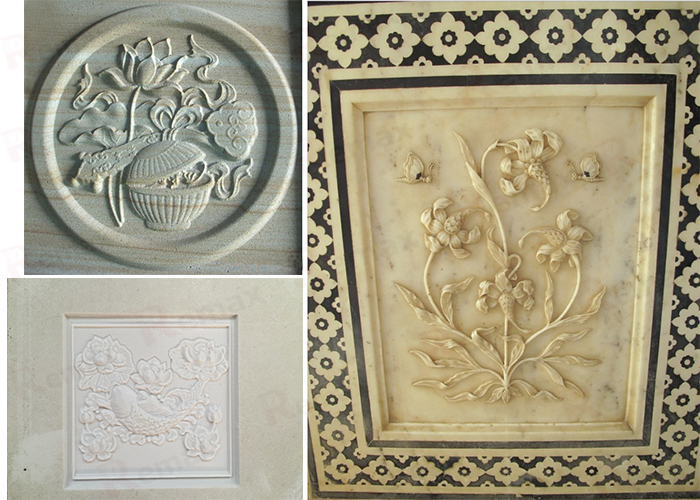

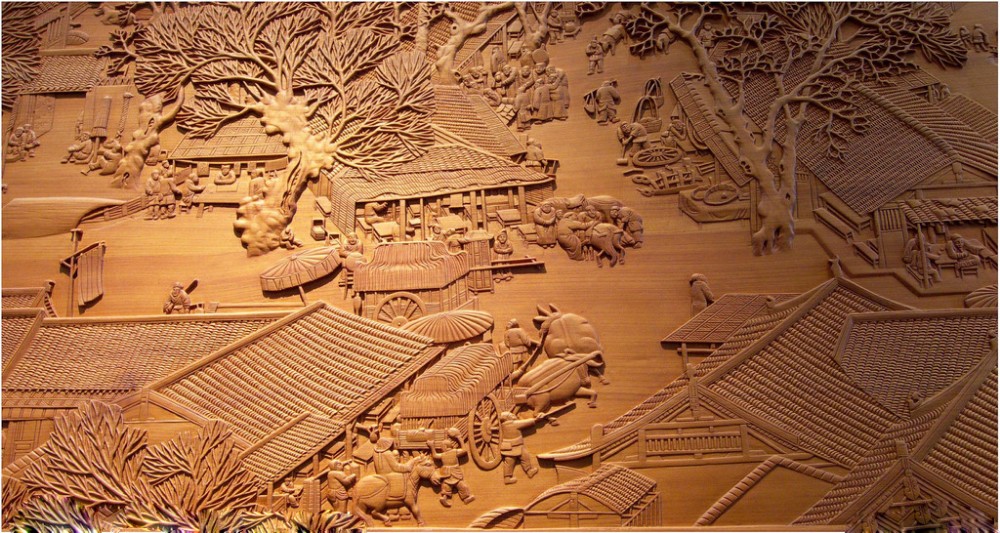

-this machine can process all kinds of materials, such as acrylic, plastic, pvc, wood, aluminum, copper, stone etc.

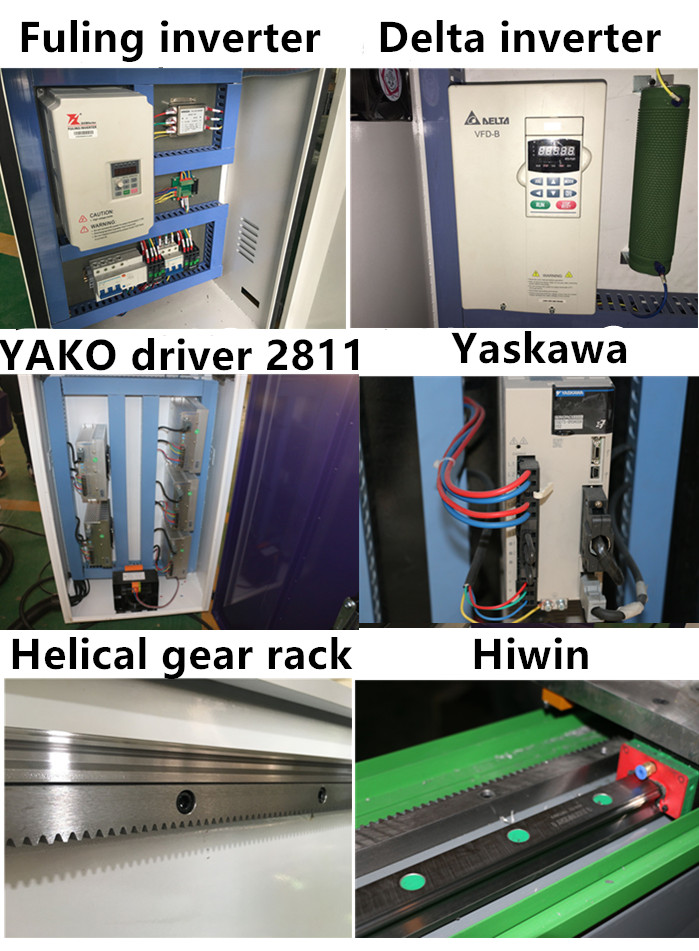

-high quality machine parts; stepper motor, HIWIN linear rails are optional
-short delivery time: 5-12 working days, usually we can finish it during 7 working days.
- We also have other size like, 400*400mm, 600*900mm, 1200*1200mm, 1200*2400mm,
1500*3000mm, 2000*4000mm and so on.
Machine features
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x200mm |
2 | X,Y,Z Traveling Positioning Accuracy | ±0.05mm |
3 | X,Y,Z Re-positioning Accuracy | ±0.05mm |
4 | Table Surface | T slot |
5 | Frame | Welded body Structure(6mm), cast iron for gantry (8mm) |
6 | X, Y Structure | HIWIN Square orbits and helical rack |
7 | Z Structure | HIWIN square orbit and TBI Ball Screw |
8 | Max. Rapid Travel Rate | 25000mm/min |
9 | Max. Working Speed | 20000mm/min |
10 | Spindle Power | 3.5kw Air Cooling Spindle |
11 | Spindle Speed | 18000RPM |
12 | Drive Motor | Stepper motor |
13 | Working Voltage | AC380V/50Hz,3 Phase |
14 | Command Language | G Code |
15 | Operating System | DSP/Ncstusio/Mach3 |
16 | Computer Interface | USB |
17 | Collet | ER32 |
18 | X,Y,Z Resolution | <0.05mm |
19 | Software Compatibility | Type3/UcancameV10/Artcam/Artengraver (optional) |
20 | Running Environment Temperature | 0 - 45 Centigrade |
21 | Relative Humidity | 30% - 75% |
22 | Packing Size | 3200 x 2150 x 1650mm |
23 | N.W. | 1200KG |
24 | G.W. | 1350KG |
25 | Optional Parts | Spindle power |
Aluminum and PVC table | ||
Rotary System | ||
Servo motor | ||
Delta/ Panasonic Servo motors |
