CNC Oscillating Knife /Vibration Knife Cutting Machine 1600*2500mm
Automatic Electric Vibration Rotary Blade Round Knife
Product description

1.Whole cast aluminum vacuum table, ensuring the machine stablity.
2.Equipped with 2 sets 7.5KW+2.2KW high pressure air cooling turbofan, high adsorption ability.
3.Japan Yaskawa servo motor and driver for XYZ-axis, ensuring the processing speed & precision.

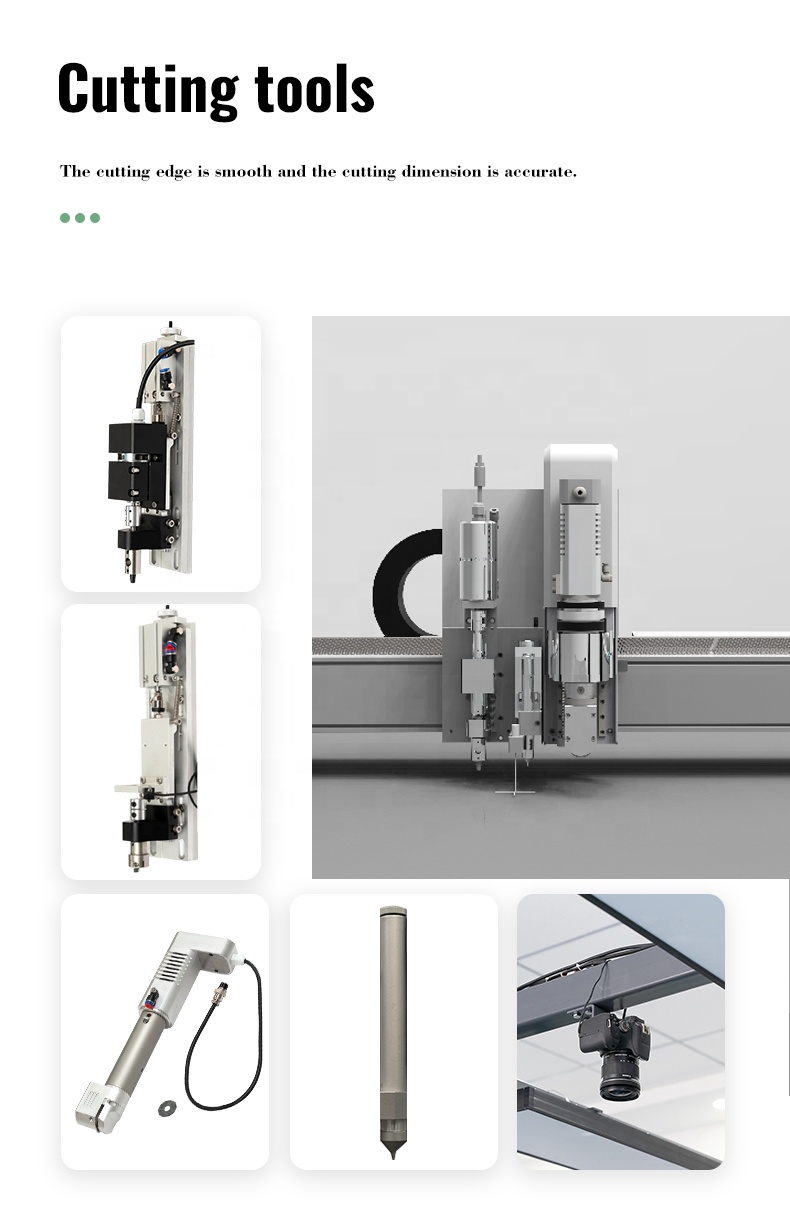

4.A variety of tool heads(Vibrating knife, high-power round knife, punching knife, pneumatic knife, multi-layer knife, drag knife, half cutter, bevel cutter, milling cutter, etc. all can be installed), quick replacement to adapt to different materials
5.Supports multiple formats such as DXF, PLT, HPGl, etc., without cutting tools, saving manpower and material resources, and simplifying the work process.
6. Improve the cutting speed and efficiency, and provide strong support for high-speed cutting of the electric vibrating knife with a frequency of up to 25,000 times/min, up to 1000mm/s.






Technical Parameters

Model

PT-1625

Effective    cutting area

1600*2500mm

Working    table

Fixed aluminum    adsorption vacuum working table

     with    adsorption felt

Material    fixed method

Vacuum    suction system

Cutting    head

Vibration    knife

Control    system

RuiDa    RDD6584G(EC) touch screen control system

Cutting    software

RuiDa    VcutWorks( supports WLAN cable & USB cable)

Cutting    speed

0-1,500mm/s(according    to different cutting materials)

Cutting    thickness

≤40mm

Cutting    accuracy

≤0.1mm

Drive    system

Servo    motors and drivers(Panasonic, Japan)

Guide    rail

PMI,    Taiwan, linear square guide rail

Transmission    system

Helical    rack and pinion transmission

Vacuum    pump

Air    cooling, 2 sets, 7.5KW+2.2KW

Safety    device

Anti-collision    system

Graphic    format supported

PLT,    DXF, AI, etc.

Compatible

CORELDRAW,    PHOTOSHOP, AUTOCAD, TAJIMA, etc.

Voltage

AC220V    ±10%,50/60Hz, single phase or

     AC380V    ±10%,50/60Hz, three phases

Machine    size

3400*2340*1350mm

Net    weight

800kgs

Gross    weight

900kgs

Product Features

cnc vibration knife cutting machine is widely used in cutting paper materials, automotive interior processing industry, used in the cutting processing of car seat covers, seat cushions, steering wheel grips, leather processing industry, leather cutting and punching, household fabrics, cutting of new technology materials and other industries.



Product details

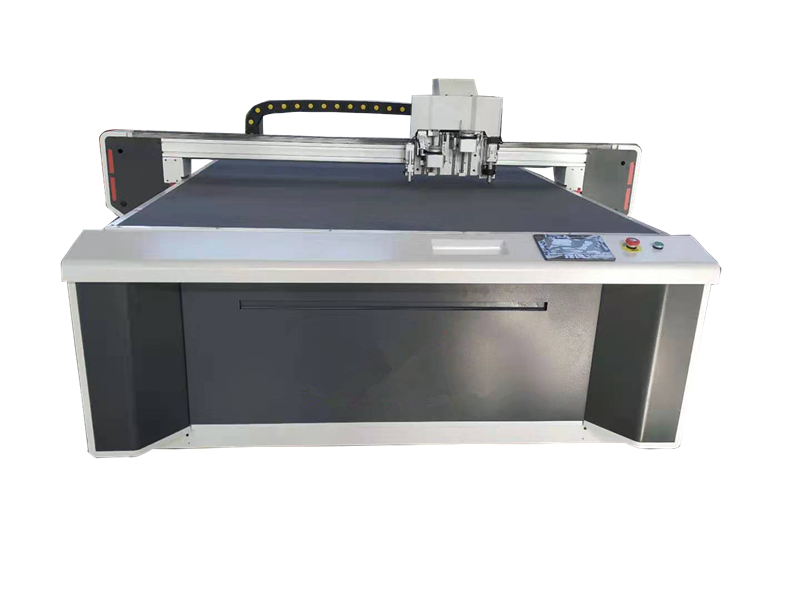

CNC Oscillating Knife /Vibration Knife Cutting Machine 1600*2500mm
