Cheap Vibrating Knife Fabric Leather Cloth Cutting Cnc Machine 1600*2500mm
Corrugated paper Packaging Box Making
Product description

High speed:

Only need 80 seconds to finish one set of car foot mat., only need 6 minutes to finish one set of car cushion mattress

High efficiency:

don't need any die mold, or die mold cutting machine, this machine can press mark, cutting and molding on soft material such as leather, carton etc. Save much labor and cost.

Low cost:

one machine can do design, cutting instead of manual design and cutting, save labor, and material wastage cost.

Wide application:

This machine can cut leather, PU, fiber, EVA, XPE, sponge cladding, composite cladding, Sponge+drape+composite leather, PVC foot mat, paper, carton, plastic board etc. Soft material.

Good performance:

adopt Taiwan TBI ball screw or Wuxi High precision rack pinion, low noise, accurate transmission. Long lifespan and high precision.



Technical Parameters
Model
PT-1625
Max. cutting size
1600*2500mm



Power
9.0kw

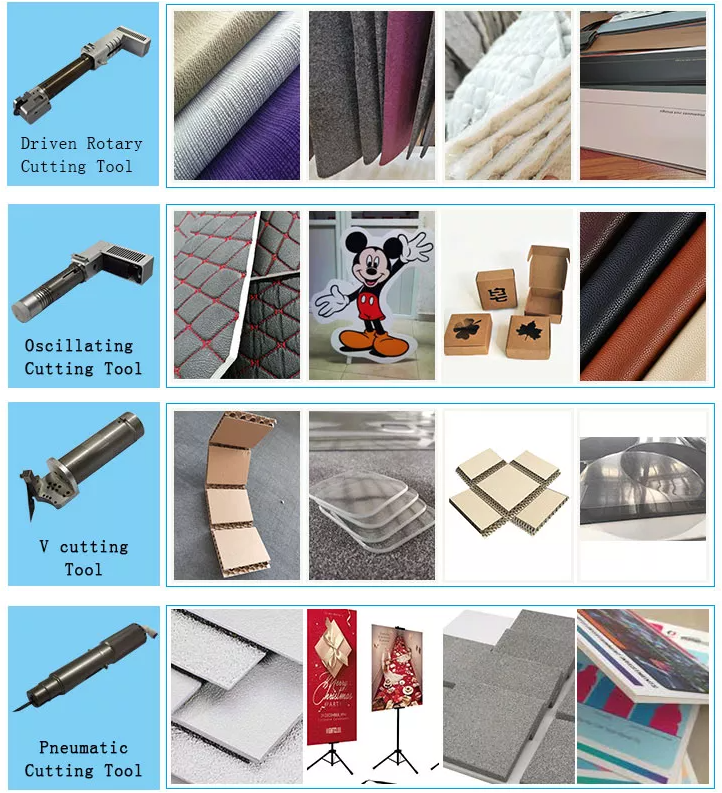

Multi-functional tool head
Oscillating straight knife/Round knife/pneumatic knife/identification
roller/marker pen holder/punching hole device/V-groove cut tool/
CCD camera/tangential knife/drilling tool/projector/etc.(optional)
Security configuration
High sensitive infrared induction
Travelling speed
Maximum 1500mm/s
Cutting speed
Max. 1200mm/s (can be set up according to different materials)
Movement speed
1200mm/s Maximum 1200mm/s
Cutting speed
Maximum 800mm/s (can be set up according to different cutting
materials)
Cutting material
Corrugated paper, PVC expansion sheet, kt sheet, thick foam, grey
board, paperboard, car sticker, adhesive sticker, etc.
Cutting thickness
Maximum 20mm (can be set up according to different materials
and tools)
Material fixing method
High power vacuum absorption with felt
Repeated positioning accuracy
±0.03mm
Mechanical Precision
Maximum 0.03mm



Drive system
Taiwan Delta servo motor, Taiwan PMI linear guide rails
Control system
Ruida control system
Data transmission method
USB port or Ethernet
Support file
DXF, PLT, AI, SVG, PDF, NC, DST, DSB, etc
Operation environment
Temperature 0-40℃, Humidity 20%-80%RH
Working voltage
380V/220V/50Hz/60Hz


Product Features

1)Sofa, seat, car seat cover, car floor mat, car carpet, luggage, handbag and other industries.
2)It is applicable to shoe industry, clothing industry, composite material industry, luggage industry, automobile industry
3)Advertising and printing industry, electronic industry, decoration industry, furniture industry, etc.



Product details

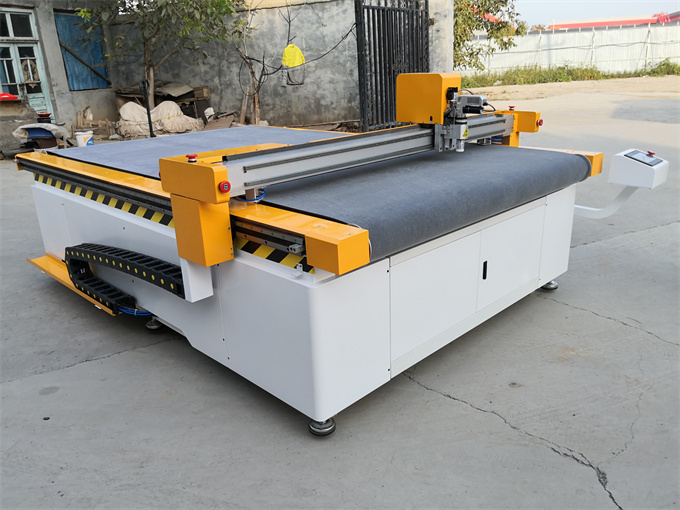

Cheap Vibrating Knife Fabric Leather Cloth Cutting Cnc Machine 1600*2500mm

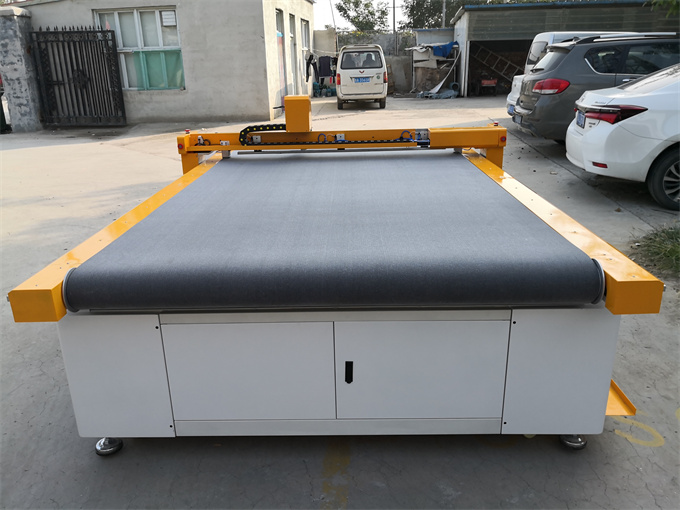

Cheap Vibrating Knife Fabric Leather Cloth Cutting Cnc Machine 1600*2500mm

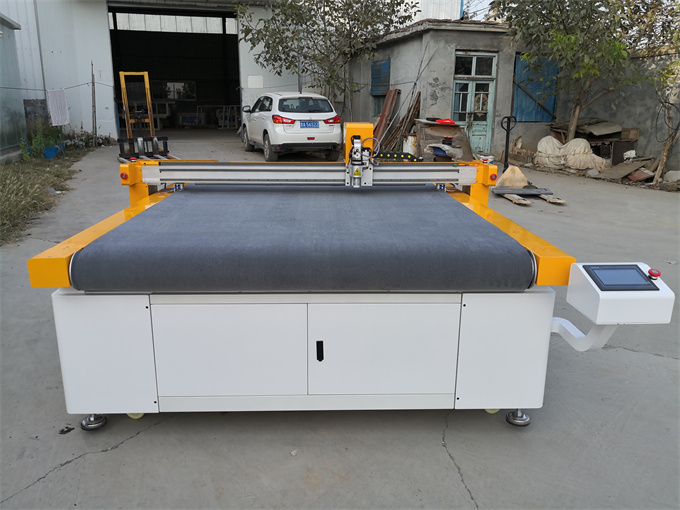

Cheap Vibrating Knife Fabric Leather Cloth Cutting Cnc Machine 1600*2500mm

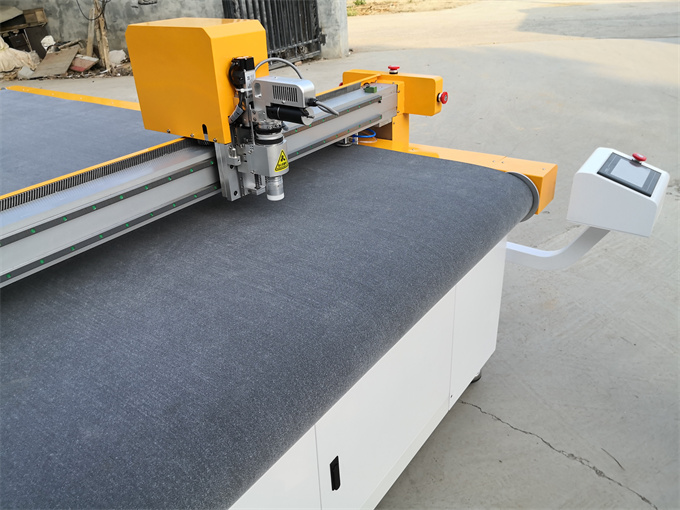

Cheap Vibrating Knife Fabric Leather Cloth Cutting Cnc Machine 1600*2500mm
