Home > Products > Vibrating knife cutting machine
Digital Automatic Oscillating Apparel Pattern/Textile/Cloth/Garments Round Knife Fabric Cutter Machi
Factory good quality
Product description

Factory directly sell

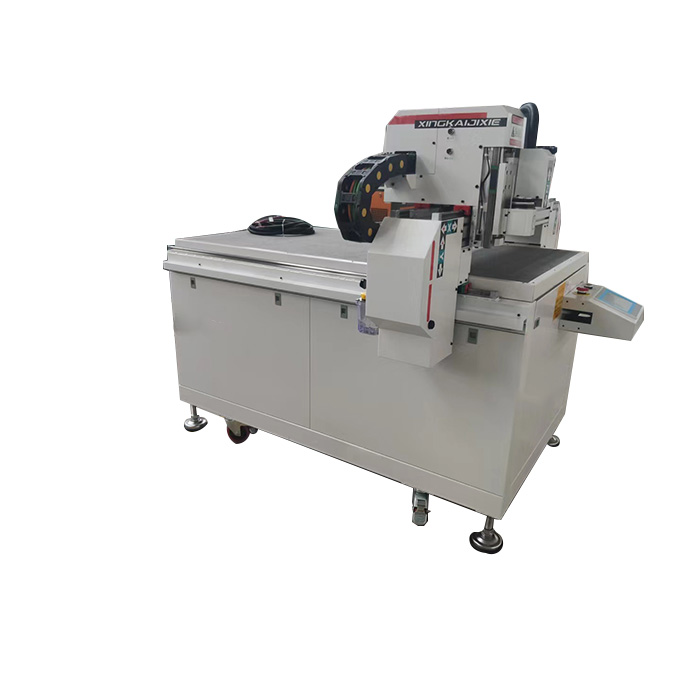

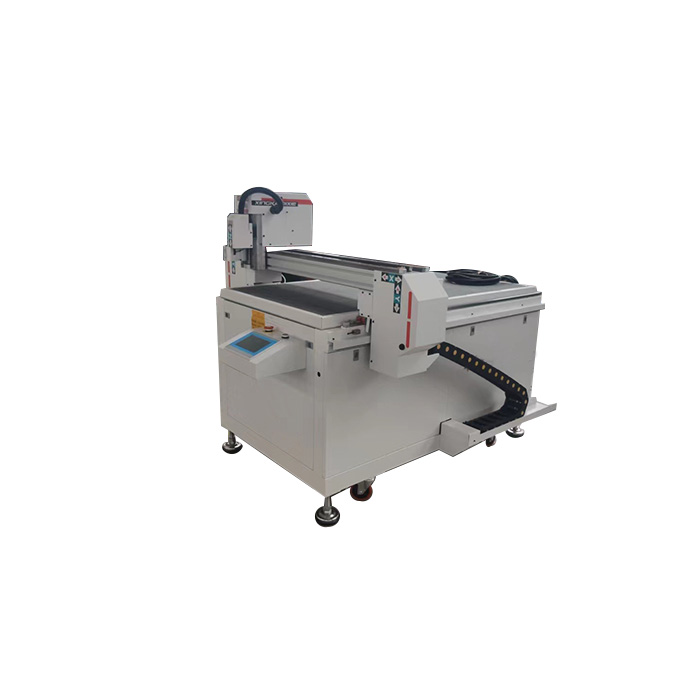

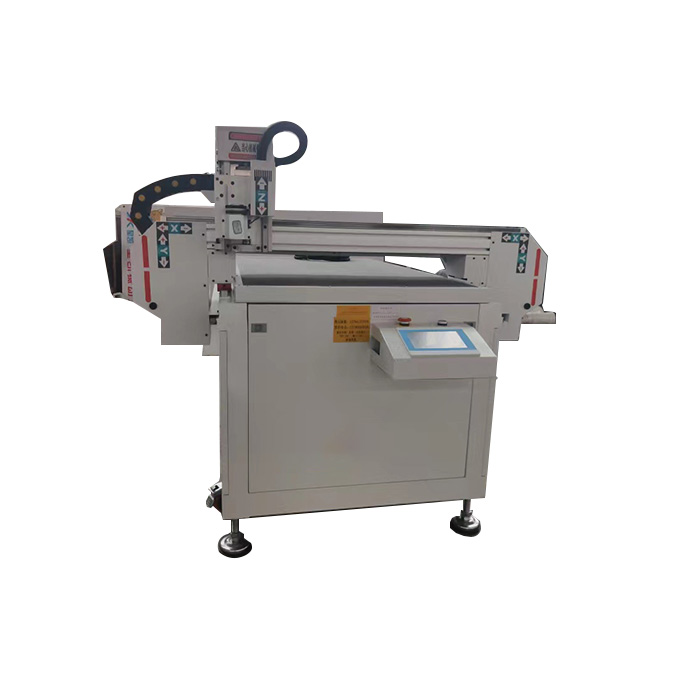

CNC cutter automatic fabric knife cutting machine

- Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine.

-Cutting function of oscillation tool:can cut many different materials (such as corrugated paper, cardboard, offset paper, grey

board, rubber,honeycomb board, PP,PE,PVC, gasket, leather ,carpet and mat ).

-Positioning: positioning with cross red line positioning system.




Technical Parameters
Model
1070
Working area
1000×700mm
Machine size (mm)
1600*1500mm
Rated power
11KW
Fixed mode
flat plate table
Safety device

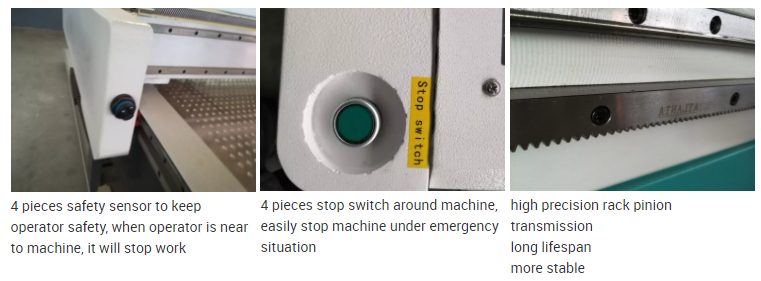

Using infrared sensors, responsive, safe and reliable.
translational velocity
800-1200mm/s
Cutting speed
200-800mm/s(according to different cutting materials)
Cutting thickness
≤22mm(according to different cutting materials)
Cutting materials
Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber
Repeated accuracy
≤0.1mm
Capacity
2GB
Transmission system

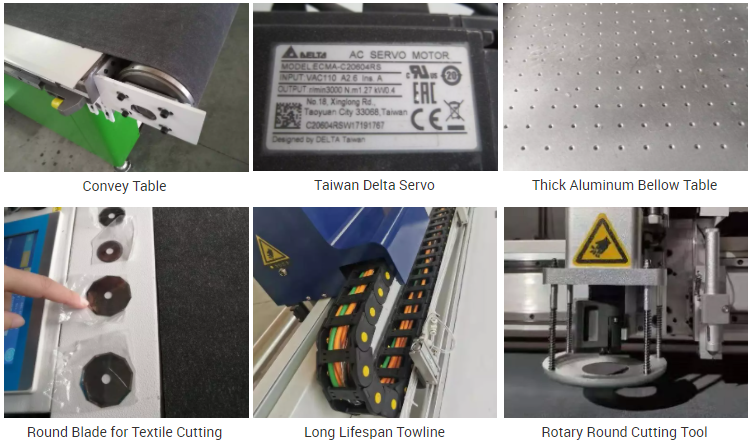

imported(Digital servo motor, linear guide, synchronous belt, ball screw)
Instruction system
HP-GL compatible format
Voltage
380V±10%


Product Features

All kinds of Leather, various garment flexible materials, KT board, Chevron board, honeycomb board, car stickers, adhesive, photo frame paper, gray board paper, corrugated paper, EPE foam, PVC board, acrylic sheet, thick foam, composite materials, etc. It can draw various high precision drawing cutting materials: corrugated board, foam, PVC, styrene, Coroplast, Celtec, magnetic film, adhesive vinyl, leather, rubber, fabrics, high intensity reflective films, paper, cardboard, polystyrene, magnetic films, vinyletc.
Besides EVA foam, cnc digital cutter machine can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board,EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display,termal insulation, model & mock up making, puzzle and pattern cutting, etc.



Product details
Digital Automatic Oscillating Apparel Pattern/Textile/Cloth/Garments Round Knife Fabric Cutter Machi
Digital Automatic Oscillating Apparel Pattern/Textile/Cloth/Garments Round Knife Fabric Cutter Machi
Digital Automatic Oscillating Apparel Pattern/Textile/Cloth/Garments Round Knife Fabric Cutter Machi
