Disc Auto Tool Changing Atc CNC Router Machine with Syntec System
Product description

Disk Auto Tools Changer machine is an economical door panel processing equipment, which is widely used in the market. Generally, 12 disc tool magazines are equipped as standard, and the equipment is equipped with quick-engraving design and order-removing software, intelligent typesetting, to realize the quick design and order-removal of customized wardrobe cabinets.

Technical Parameters

Effective working area

1300(X)mm*2500(Y)mm*300(Z)mm

Materials

Stonger steel pipe welded    machine holder bed, cast iron gantry

Working table

Vacuum table with aluminum    T slot working table

Moving type

Gantry moving

Guide rail

Linear square guide rail (    Hiwin, Taiwan)

Transmission

Helical rack &pinion    for X Y -axis, Lead ball screw for Z-axis

Driving mode

Japan Yaskawa servo    motor and driver for XYZ-axis

Spindle motor

9.0KW HSD air cooling  spindle

Spindle speed

0-18000rpm

Tools changing method&

     changing ability

Disc auto tool changer

     16 pcs

Inverter

Delta, Taiwan

Voltage

AC 380V± 10%, 50/60Hz,    three phases

Maximum traveling speed

>30000m/min

Machine accuracy

0.01mm

Control system

SYNTEC control system(    Taiwan)

Hand wheel

SYNTEC HPG( hand pulse    generator)

Suitable software

YUNXI software

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running environment    temperature

0-45 ºC

Relative humidity

30%-75%

Dedusting device

Dust collector

Lubrication system

Auto

Tool calibration

Auto

Certificate

CE

Product Features

1.Whole machine is welded by stronger steel structure, with tempering aging treatment, no distortion, long time using.

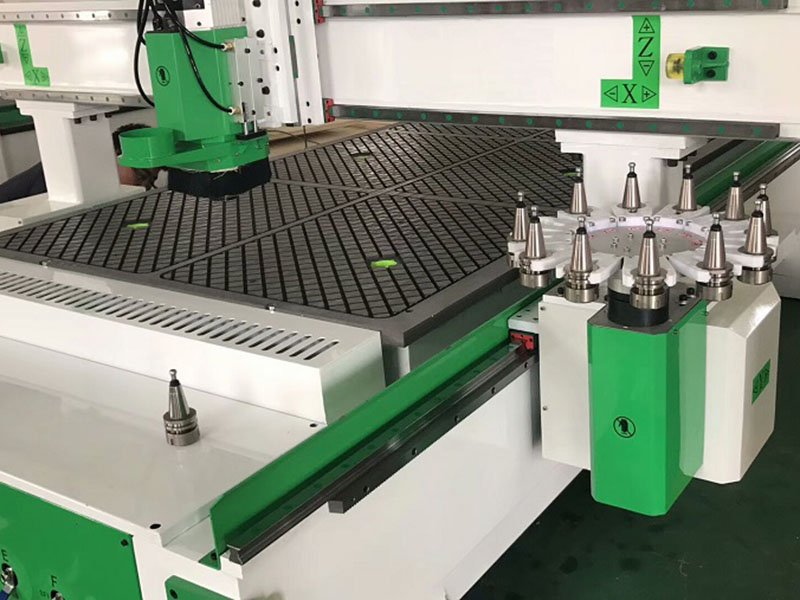

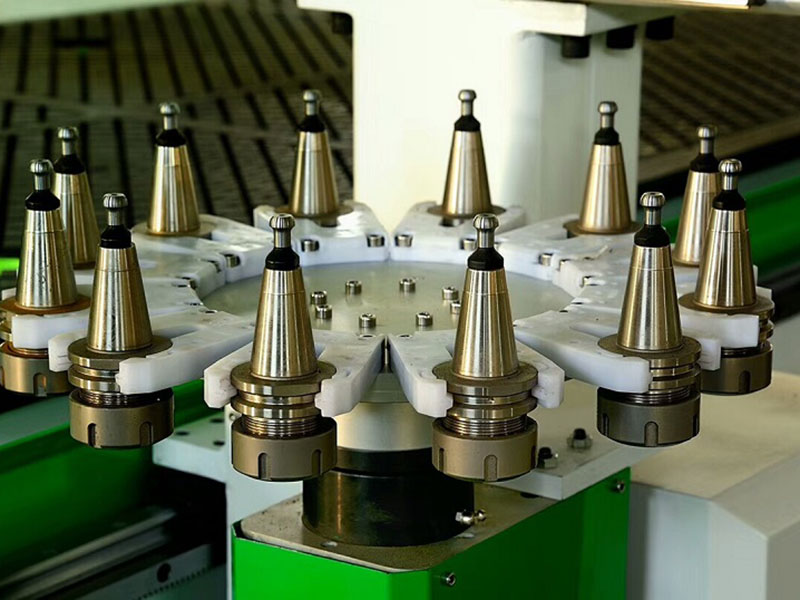

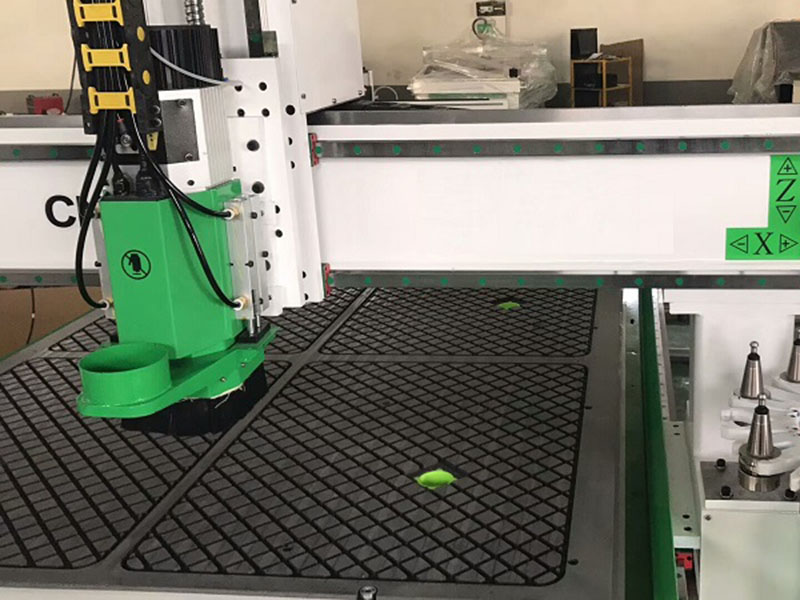

2.Disc type auto tool changer system, total 16 pcs bits in the tool magazine, only 8 seconds to change bits, can change the needed bits intelligently, saving bits changing time, improving efficiency.
3.SYNTEC 6MB Taiwan high performance industrial control system, intelligent controlling, has the protection function for beyond the working table, avoiding the mechanical collision due to the larger designed layout.
4.Separates control keyboard operation: brief, convenient and easy to learn, great independence.
5.Powerful Japan Yaskawa 850W servo motor and driver for XYZ-axis, suitable all kinds of heavy solid wood engraving and cutting, high precision and fast speed.
6.Linear square guide rail, Hiwin, Taiwan, dia 30mm for XYZ-axis, double raw four columns, good weight capacity, stable moving and ensuring the precision.
